Standing indirect container

Storage capacity: 291L
Weight: 98 kg
Diameter with insulation: 65 cm
Height with insulation: 150 cm
Tilt height (R2): 165 cm
Maximum tank pressure: 10 bar/90°C
Maximum heat exchanger pressure: 12 bar/110°C
Heat exchanger surface: 3.4 m²
Mounting opening (K): inner diameter 120 mm, outer diameter 180 mm
Insulation: non-removable hard polyurethane foam
Energy efficiency class: B
Further parameters in the pictures and the downloadable data sheet.

DOWNLOADABLE DATASHEET

More information:

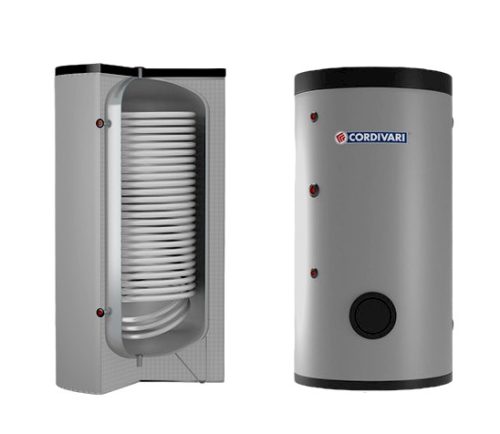

1 heat exchanger DHW tank with extra large pipe snake

It is particularly suitable for utilizing the heat produced by a solar collector or heat pump, since solar collectors and heat pumps cannot produce as hot urine as a boiler, so the length and surface of the heat exchanger are important.
Standing design, with POLYWARM® coating, one heat exchanger, non-removable hard polyurethane with thermal insulation.
Complex corrosion protection is provided by a titanium-enamel internal and exchangeable anode.
Available accessory:

electric heating pad.
