Vacuum pipe for 58x1800 solar collector, complete with heat-pipe, 24mm head.

Complete vacuum tube

Model RT-MC58*1800
Glass structure: Pure glass double tube coaxial structure
Glass material: Borosilicate 3.3 glass
Glass tube outer diameter 58 mm ± 0.7mm
Glass tube inner diameter 47 mm ± 0.7mm
Glass tube wall thickness 1.6 mm ± 0.15 mm
Glass tube length 1800 mm
Vacuum tube surface 0.128m2
Selective absorber coating material: Cu/SS-AIN
Coating process: "Three targeted" magnetron sputtering coating
Absorption capacity: α: ≥0.93 (AM1.5)
Emissivity: ε≤6.5% (80°C±5°C)
Vacuum degree: P ≤5.0×10-3 Pa
Stagnation parameter: >200~240 m²°C/kw< /span>
Average heat loss: ULT≤0.65W/(m²,°C)
Hail resistance: Φ25 mm
Pressure resistance: 0.6 Mpa
The diameter of the head of the copper Big pipe insert is 24 mm, the length of the head is 55 mm.

Vacuum pipe for Heat-Pipe system complete, including the Big-Pipe pipe!

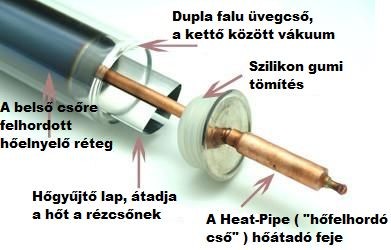

Vacuum tube solar collectors generally utilize the sun's energy efficiently, and the vacuum helps minimize heat loss to the environment. The copper insert on the inside of the vacuum tube helps the solar energy to be absorbed and transmitted faster in the system. Solar collectors of this type can be used to produce hot water and supplement heating systems.

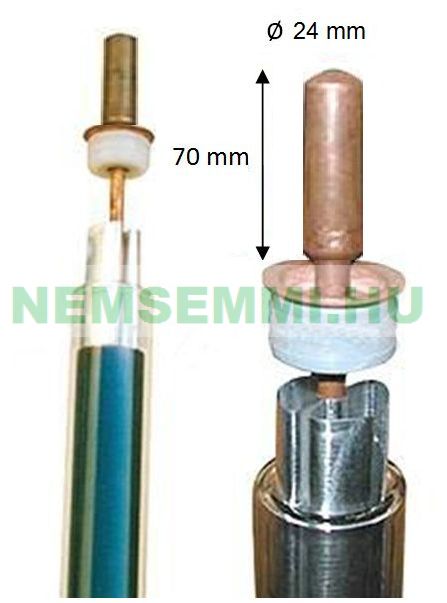

The diameter of the head of the copper Heat pipe insert is 24 mm, the length of the head is 70 mm, the length of the jacket is 55 mm.
Use this product when ordering small quantities (between 1-10). These vacuum tubes - due to their fragility - can only be ordered by personal collection. For personal collection, please provide packaging material!

Delivery in small quantities can only be undertaken at the buyer's responsibility, after prior written consultation and advance payment!
Suggested order 10-15 pieces or a multiple thereof, in this case it can be received and delivered in factory packaging.< /p>
