Plate heat exchanger

Maximum output of heat exchanger: 1250kW
Nominal output: 200-300kW
Number of discs: 50
Connection: 2" external thread
Nominal flow: 35 m³/h
Heat exchange surface: 4.75 m²
Operating pressure: 30 bar
Test pressure: 45-60 bar
Min. temperature: -190°C
Max. temperature: +225°C
Weight: 24 kg
Plate material: stainless steel 304 and 316
Plate thickness: 0.4 mm
Solder material: 99.9% Cu

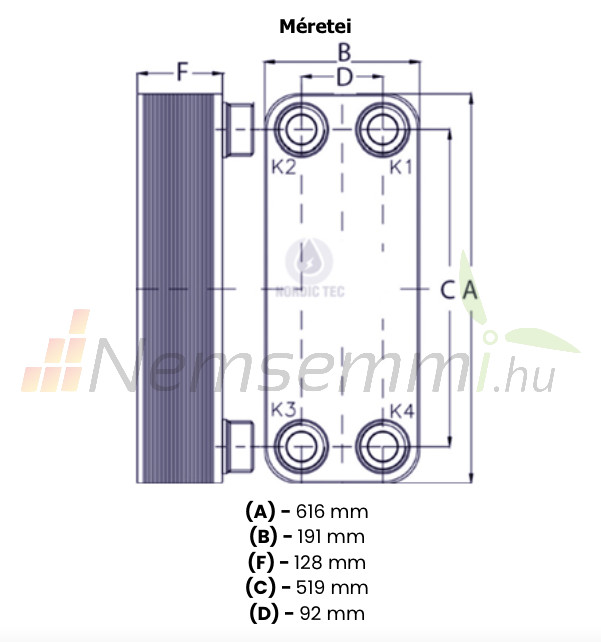

DIMENSIONS:

Length (A): 6166 mm
Width (B): 191 mm< /span>
Depth (F): 128 mm
Distance (C): 519 mm
Distance (D): 92 mm

Operation tips:
⋅It is recommended to install the heat exchanger vertically
⋅The sides must be connected in countercurrent
⋅Periodic cleaning must be carried out on a heat exchanger

More information:

Plate heat exchanger

1250kW heat exchanger
50 plate stainless design

Features:

- 316L stainless steel soldered with 99.9% Cu copper

- Heating power 200-300 kW, depending on the supply temperature

- Connections 4x 2"

- Operating pressure up to 30 bar

- Test pressure 45-60 bar

- Maximum operating temperature up to +230°C

- Flow rate 35 m³/h

- Heat exchange surface 4,750 m²

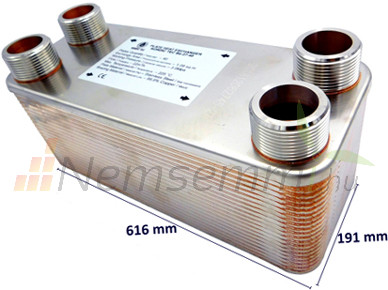

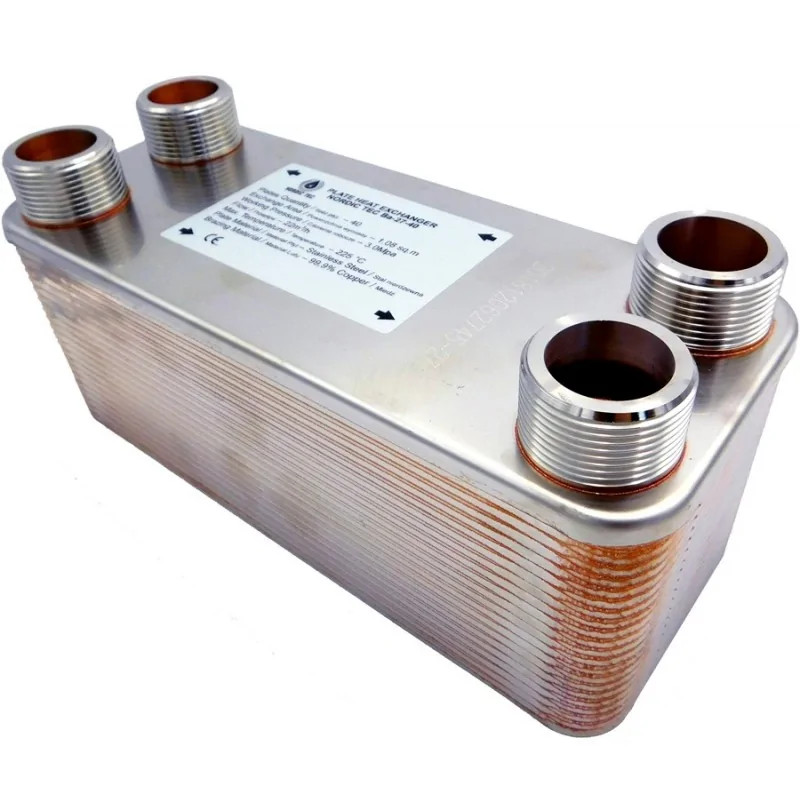

Plate heat exchanger 50 plates 1250kW with 2" external connection Ba-95-50
