Technical data of the heat exchanger:

< meta charset="UTF-8" />

Maximum power of heat exchanger: 990kW

Rated power: 180-340kW

Number of discs: 90

Connection: 4x 1½” external thread

Nominal flow: 22 m³/h

Heat exchanger side: 5.40 m²

Operating pressure: 30 bar

Test pressure: 45-60 bar

Min. temperature: -190°C

Max. temperature: +225°C

Weight: 24.5 kg

Plate material: stainless steel 304 and 316

Slab thickness: 0.4 mm

Solder material: 99.9% Cu

DIMENSIONS:

Length (A): 526 mm

Width (B): 124 mm

Depth (F): 226 mm

Distance (C): 478 mm

Distance (D): 73 mm

Operating tips:

⋅ It is recommended to install the heat exchanger vertically

⋅The sides must be connected in countercurrent

⋅The heat exchanger must be cleaned periodically

Technical data of heat exchanger insulation:

Material: foamed, heat-resistant plastic
Material thickness: 20 mm< /p>

Heat load: max. 180°C

The excellent thermal conductivity factor: 0.0029 W/(m x H) provides optimal insulation.

More information:

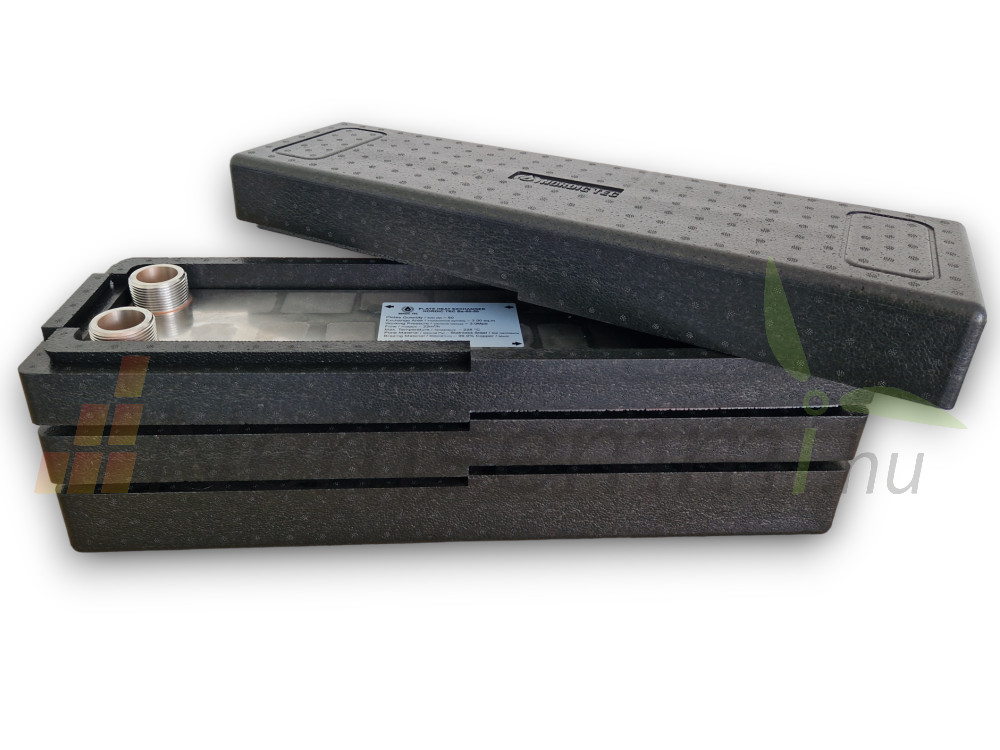

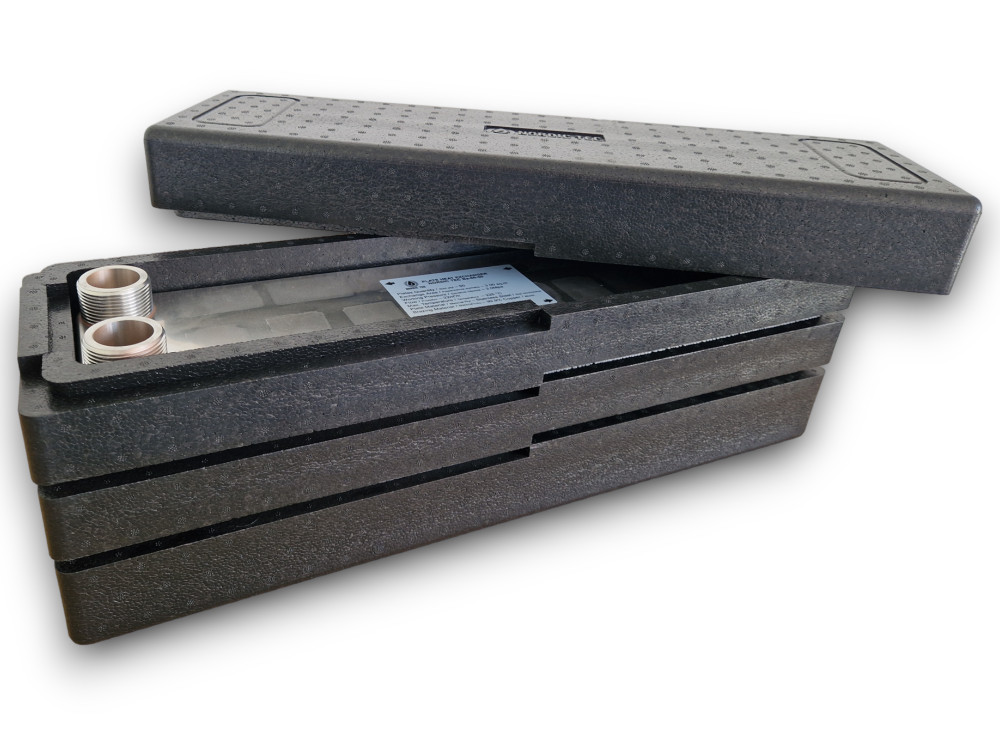

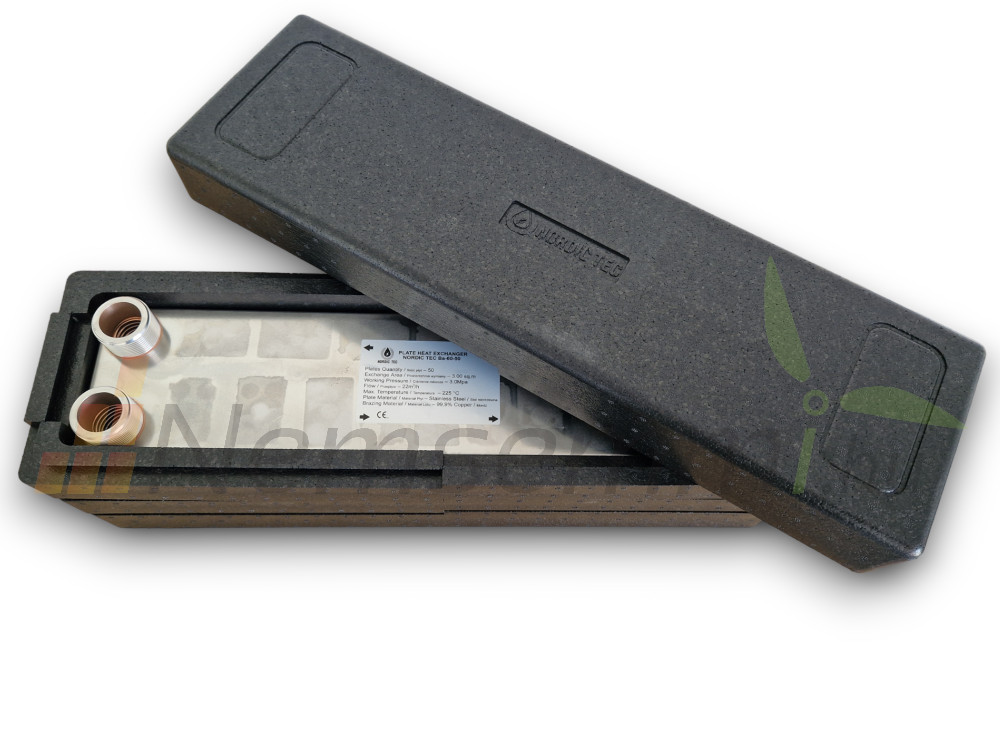

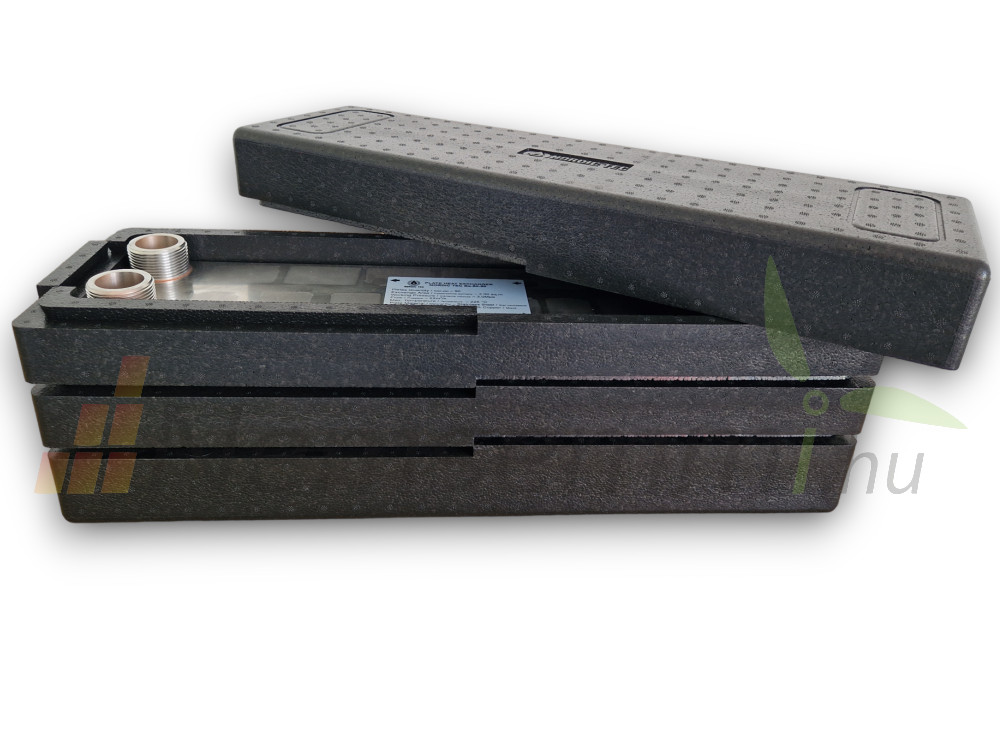

Plate heat exchanger with insulation

990kW heat exchanger

90 plate stainless design

type 60 plate heat exchanger insulating box.

Consists of several parts, easy-to-install insulation on a heat exchanger,
can be placed on it with a few movements.

Plate heat exchanger with insulation 90 plate heat exchanger 990kW with 4x1 1/2" connection cover plate pair and lifting plate
