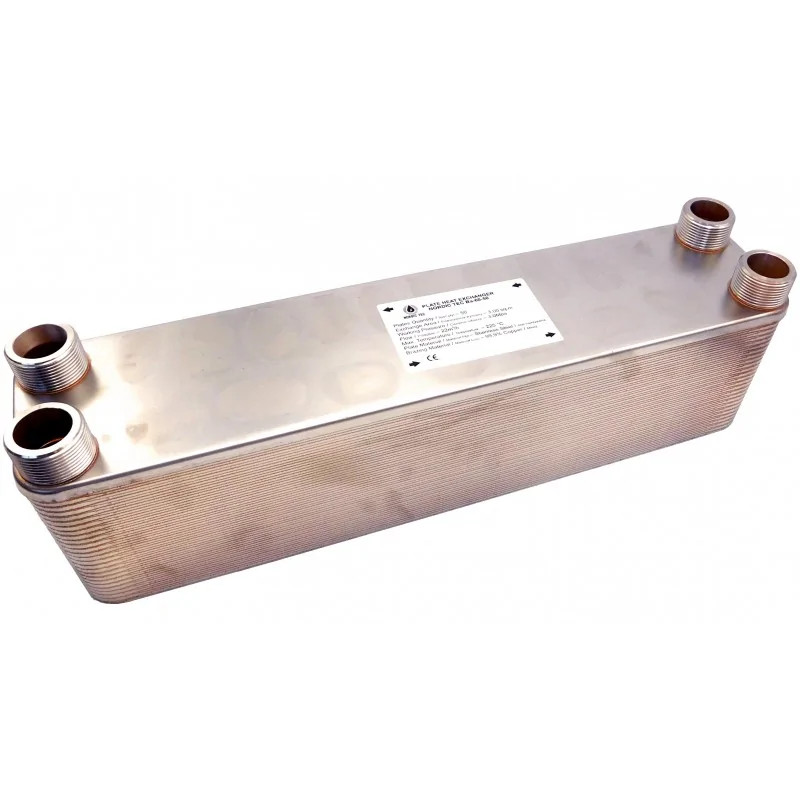

Plate heat exchanger 50 plates 550kW 4x1 1/4" with external connection

Plate heat exchanger

Maximum output of heat exchanger: 550kW
Nominal output: 100-200kW
Number of discs: 50
Connection: 4x 1 1/4" external thread
Nominal flow: 22 m³/h
Heat exchange surface: 3,000 m²
Operational pressure: 30 bar
Test pressure: 45-60 bar
Min. temperature: -190°C
Max. temperature: +225°C
Weight: 15.5 kg
Plate material: stainless steel 304 or 316
Plate thickness: 0.4 mm
Solder material: 99.9% Cu

DIMENSIONS:

Length (A): 526 mm
Width (B): 124 mm< /span>
Depth (F): 127 mm
Distance (C) : 478 mm
Distance (D): 73 mm

Operation tips:
⋅ It is recommended to install the heat exchanger vertically
⋅The sides must be connected in countercurrent
⋅Periodic cleaning must be carried out on a heat exchanger

Plate heat exchanger

550kW heat exchanger
50 plate stainless design

The most common application of Ba-60-50 heat exchangers:
- Heat exchanger for heat pump, monoblock or split type for systems between 10 and 22 kW (depending on the temperature range of the heat pump), in cases where the part filled with glycol must be separated from the rest of the water-powered heating system.

- Heat exchanger for servicing heating equipment in large industrial, service or hotel facilities, such as boilers or cascade heating units, up to a power of 100-120 kW. Works with any type of boiler, including gas, solid fuel, coal, pellet or electric, regardless of whether the central heating system is based on underfloor heating or radiators

- Heat exchanger for industrial cooling, e.g. in the food industry, as a cooling device.
