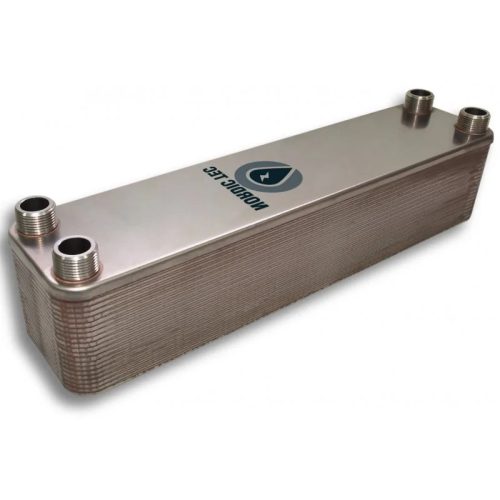

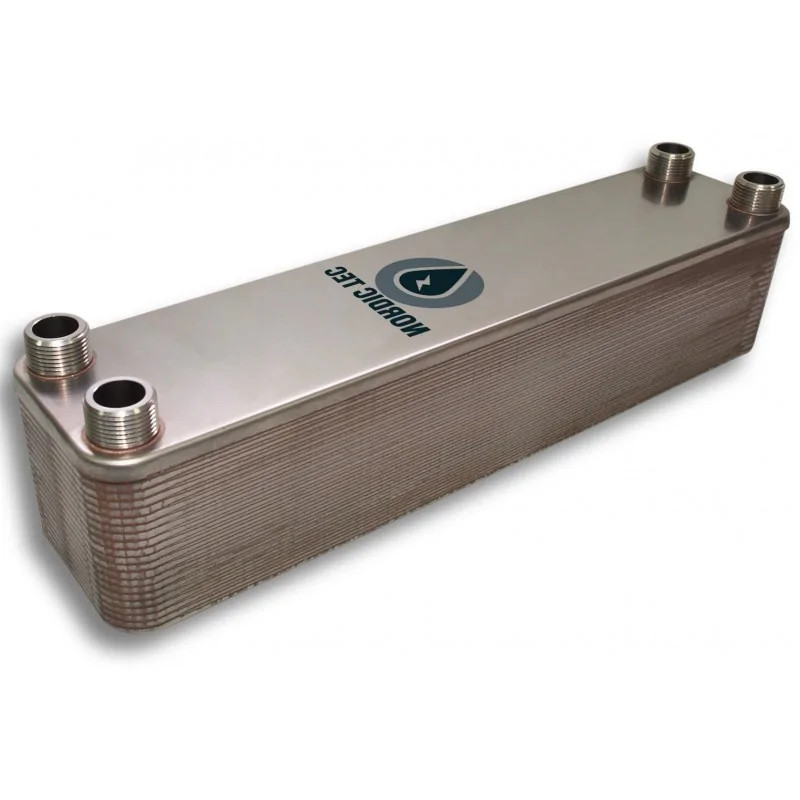

Plate heat exchanger 40 plates 440kW 4x1 1/4" with external connection

Plate heat exchanger

Maximum output of heat exchanger: 440kW
Nominal output: 80-170kW
Number of discs: 40
Connection: 4x 1 1/4" external thread
Nominal flow: 22 m³/h
Heat exchanger side: 2,400 m²
Operating pressure: 30 bar
Test pressure: 45-60 bar
Min. temperature: -190°C
Max. temperature: +225°C
Weight: 13.5 kg
Plate material: stainless steel 304 or 316
Plate thickness: 0.4 mm
Welding material: 99.9% Cu

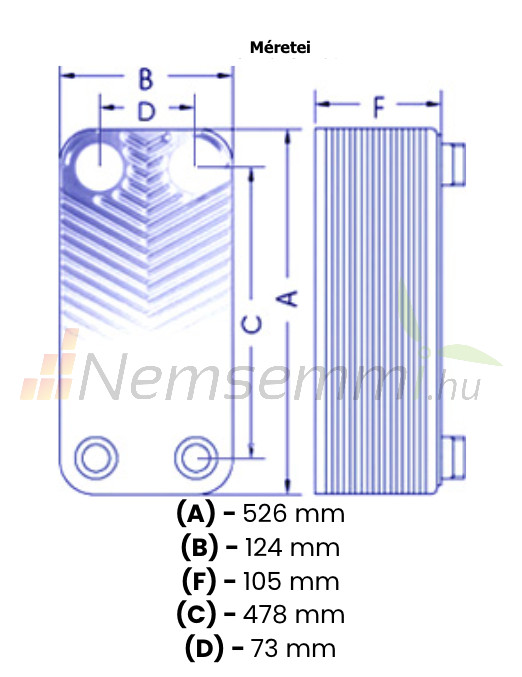

DIMENSIONS:

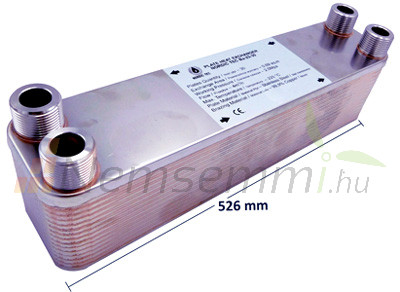

Length (A): 526 mm
Width (B): 124 mm< /span>
Depth (F): 105 mm
Distance (C) : 478 mm
Distance (D): 73 mm

Operation tips:
⋅ It is recommended to install the heat exchanger vertically
⋅The sides must be connected in countercurrent
⋅Periodic cleaning must be carried out on a heat exchanger

Plate heat exchanger

440kW heat exchanger
40 plate stainless design
< span style="color: #000000;">A heat exchanger is very often used to connect a glycol-powered heat pump to a (water-powered) central heating system. The 40-plate model is perfectly suitable for this purpose due to its rather large - 2.40 m2 - heat transfer surface.
In practice, the 40-plate heat exchanger has 10 and It can handle heat pumps of up to 20 kW, and this primarily depends on the production temperature of the system provided by the heat pump. It must not be forgotten that heating systems in which the heat pump must operate at extremely low temperatures (e.g. based on underfloor heating) require a larger heat exchanger than systems operating at high temperatures (e.g. based on radiators).
