Heat exchanger with support and insulation

< meta charset="UTF-8" />

Maximum power of heat exchanger: 330kW

Rated power: 60-140kW

Number of discs: 30

Connection: 4x 1 1/4” external thread

Nominal flow: 22 m³/h

Heat exchanger side: 1,800 m²

Operating pressure: 30 bar

Test pressure: 45-60 bar

Min. temperature: -190°C

Max. temperature: +225°C

Weight: 11 kg

Plate material: stainless steel 304 or 316

Slab thickness: 0.4 mm

Welding material: 99.9% Cu

DIMENSIONS:

Length (A): 526 mm

Width (B): 124 mm

Depth (F): 80 mm

Distance (C): 478 mm

Distance (D): 73 mm

Operating tips:

⋅ It is recommended to install the heat exchanger vertically

⋅The sides must be connected in countercurrent

⋅The heat exchanger must be cleaned periodically

Heat exchanger support bracket

Connector size: 4x1 1/4"

Connector material: copper

Heat exchange insulation

Material: black EPP foam
Material thickness: 24 mm
Maximum operating temperature: 115°C
The excellent thermal conductivity: 0.0029 W/(m x H) provides optimal insulation

More information:

Heat exchanger complete set

330kW heat exchanger

30 plate stainless design

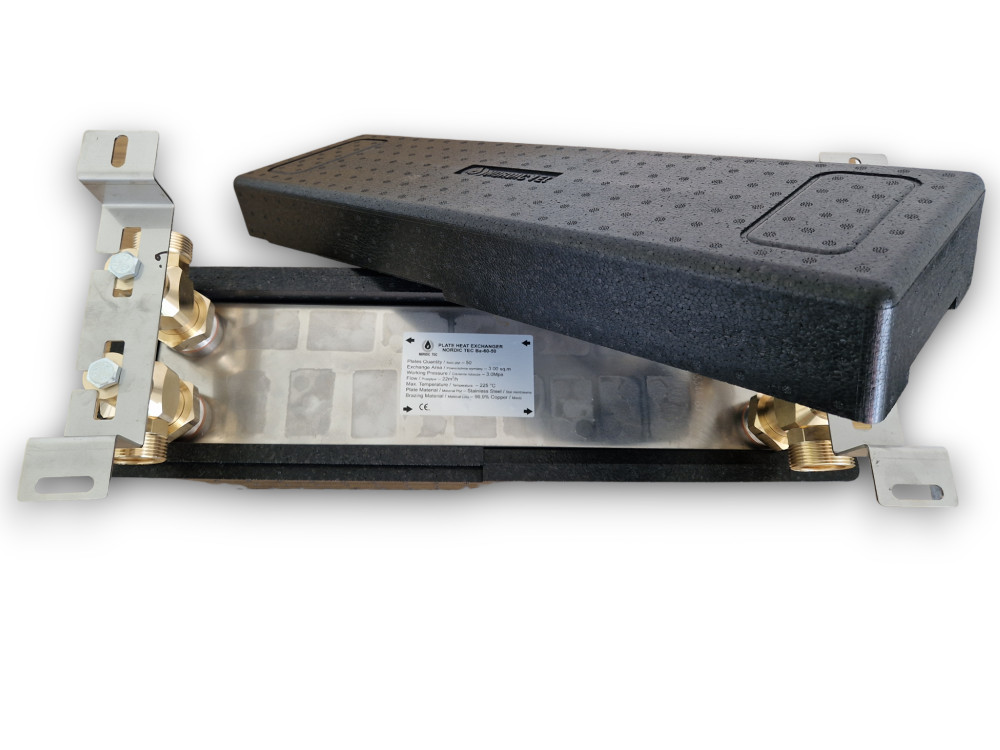

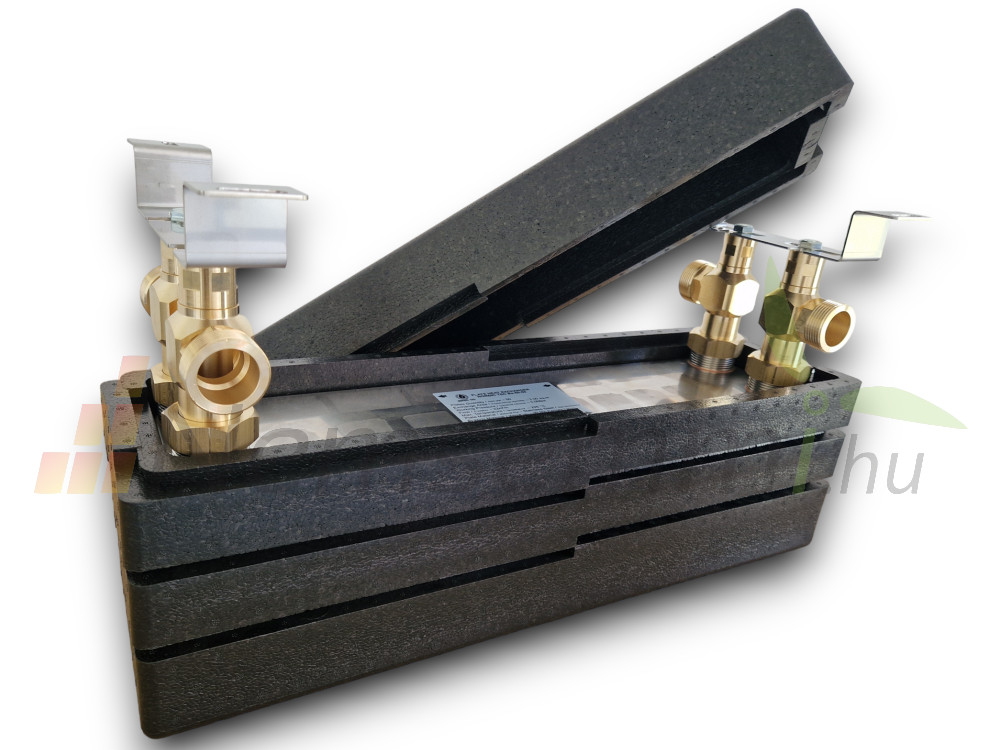

Heat exchanger with support structure, including insulation.

Plate heat exchanger with 30 plates 330kW 4x1 1/4" connection, with support structure and insulation Ba-60-30
