Heat exchanger with support and insulation

< meta charset="UTF-8" />

Maximum power of heat exchanger: 450kW

Rated power: 80-170kW

Number of discs: 80

Connection: 4x1” external thread

Nominal flow: 12 m³/h

Heat exchanger side: 2,560 m²

Operating pressure: 30 bar

Test pressure: 45-60 bar

Min. temperature: -190°C

Max. temperature: +225 °C

Weight: 11.8 kg

Plate material: stainless steel 304 or 316

Slab thickness: 0.4 mm

Solder material: 99.9% Cu

DIMENSIONS:

Length (A): 286 mm

Width (B): 116 mm

Depth (F): 201 mm

Distance (C): 243 mm

Distance (D): 72 mm

Operating tips:

⋅ It is recommended to install the heat exchanger vertically

⋅The sides must be connected in countercurrent

⋅The heat exchanger must be cleaned periodically

Heat exchanger support bracket

Connector size: 4x1"

Connector material: copper

Heat exchange insulation

Material: polypropylene foam
Material thickness: 22-24 mm
Maximum operating temperature: 115°C
The excellent thermal conductivity factor: 0.0029 W/(m x K) provides optimal insulation

More information:

Heat exchanger complete set

450kW heat exchanger

80 plate stainless design

Heat exchanger with support structure, including insulation.

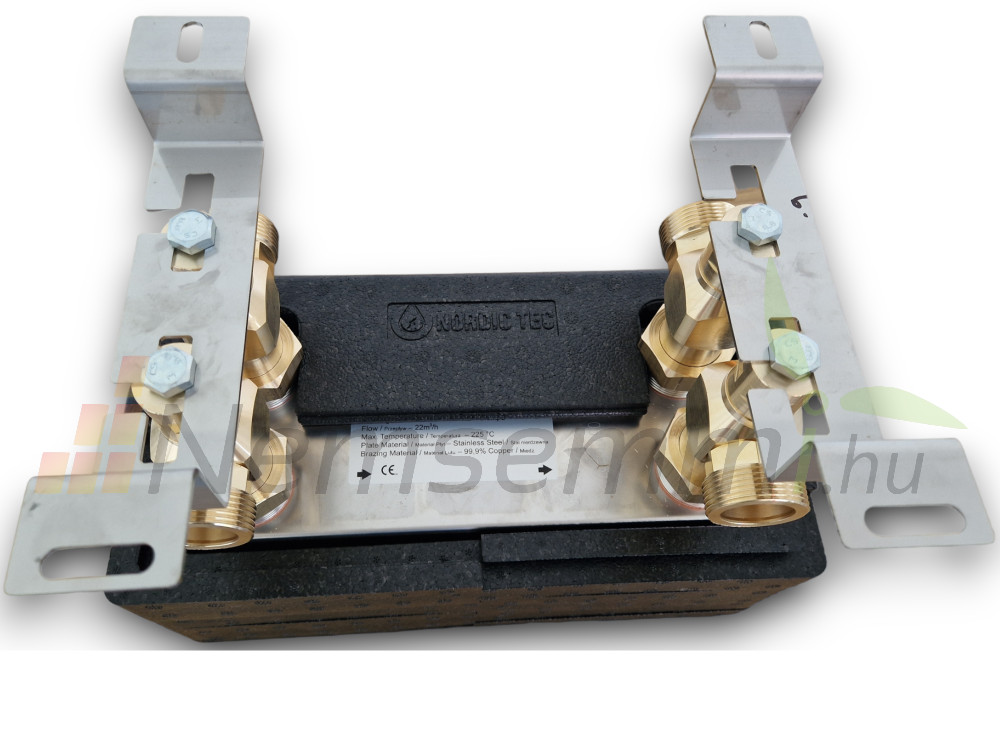

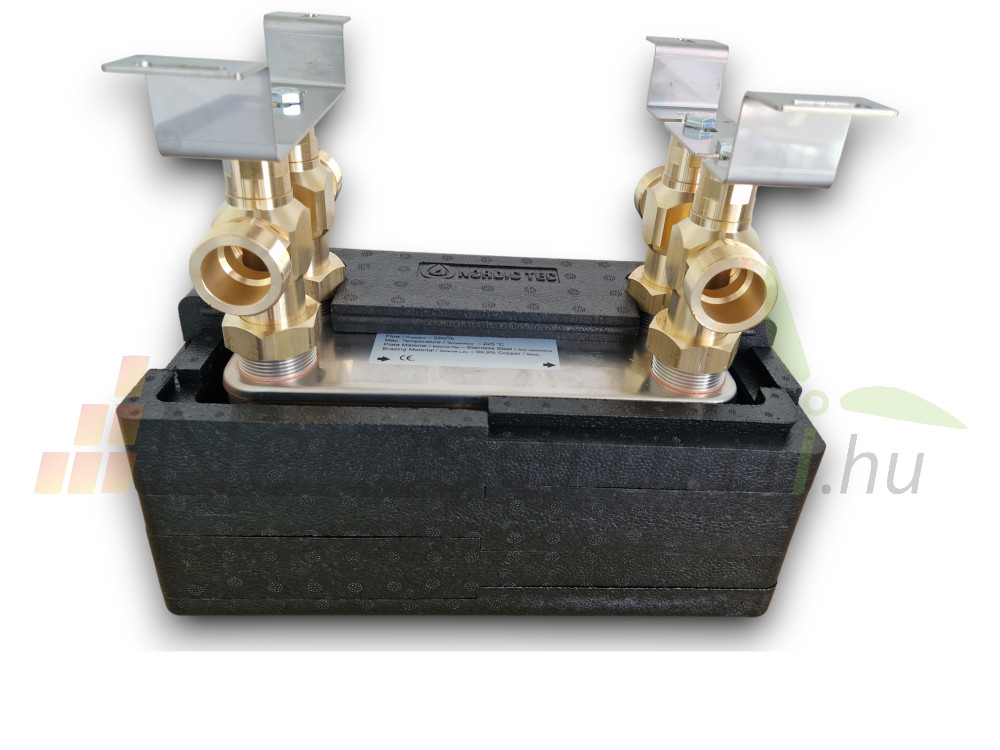

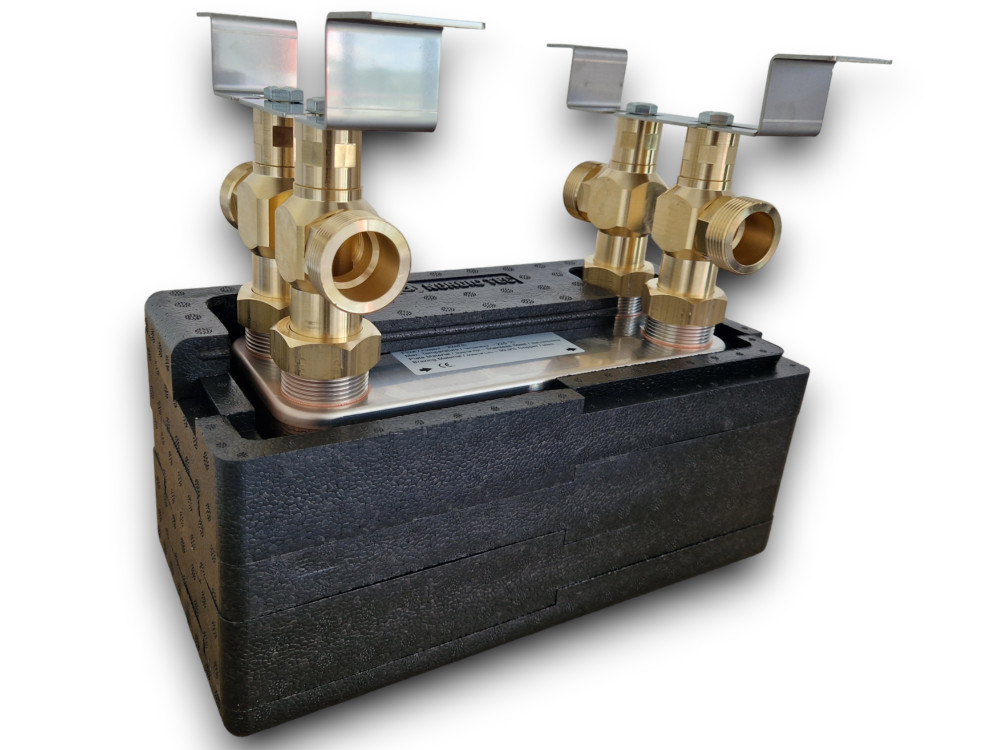

Plate heat exchanger 80 plates 450kW 1" external connection, with support structure and insulation Ba-32-80

Heat exchanger with support and insulation

Heat exchanger complete set
