Heat exchanger with support and insulation

< meta charset="UTF-8" />

Maximum output: 175kW

Rated power: 30-65 kW

Number of discs: 30

Connection: 4x1” external thread

Nominal flow: 12 m³/h

Heat exchanger side: 0.960 m²

Operating pressure: 30 bar

Test pressure: 45-60 bar

Min. temperature: -190°C

Max. temperature: +225°C

Weight: 5.5 kg

Plate material: stainless steel 304 or 316

Slab thickness: 0.4 mm

Welding material: 99.9% Cu

DIMENSIONS:

Length (A): 286 mm

Width (B): 116 mm

Depth (F): 80 mm

Distance (C): 243 mm

Distance (D): 72 mm

Operating tips:

⋅ It is recommended to install the heat exchanger vertically

⋅The sides must be connected in countercurrent

⋅The heat exchanger must be cleaned periodically

Heat exchanger support bracket

Connector size: 4x1"

Connector material: copper

Heat exchange insulation

Material: polypropylene foam
Material thickness: 22-24 mm
Maximum operating temperature: 115°C
The excellent thermal conductivity factor: 0.0029 W/(m x K) provides optimal insulation

More information:

Heat exchanger complete set

175kW heat exchanger

30 plate stainless design

Heat exchanger with support structure, including insulation.

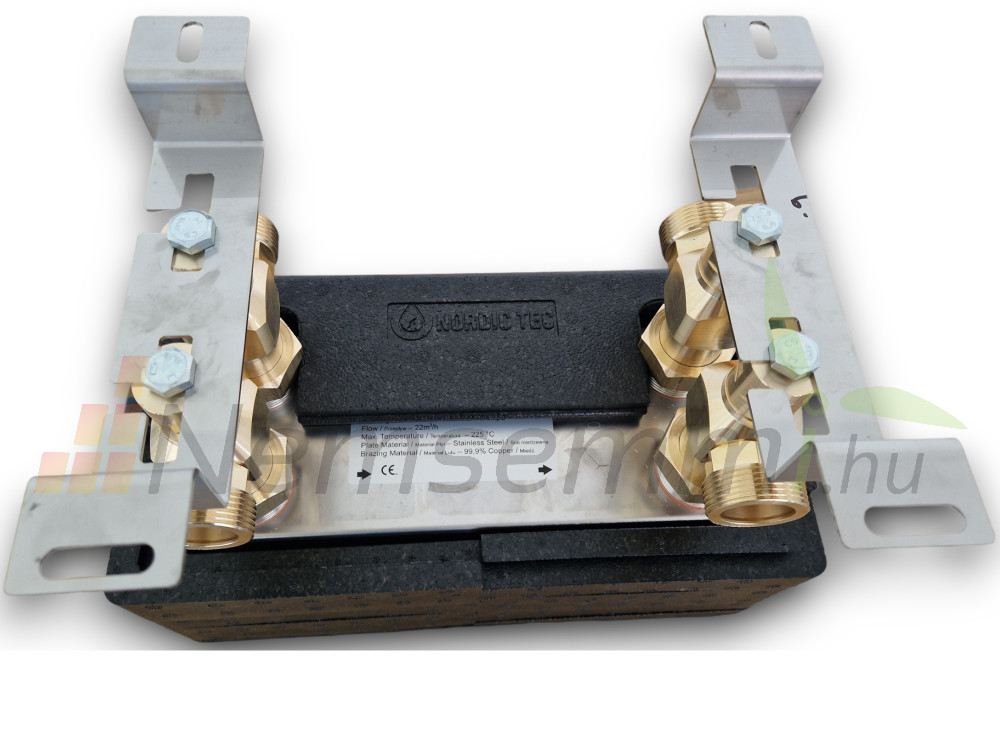

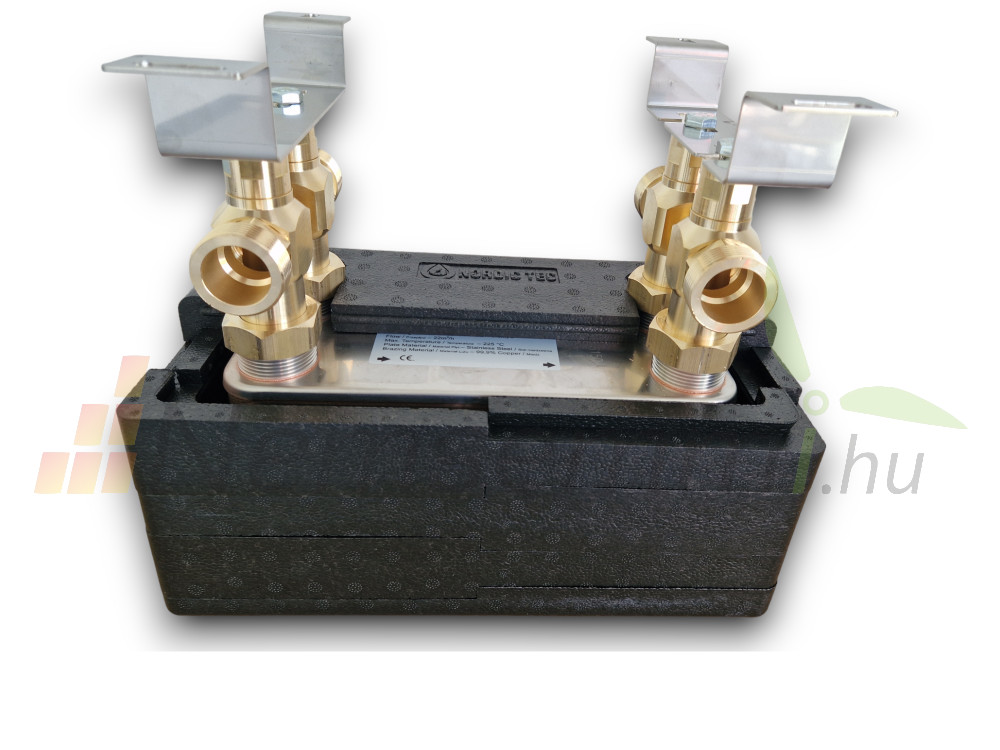

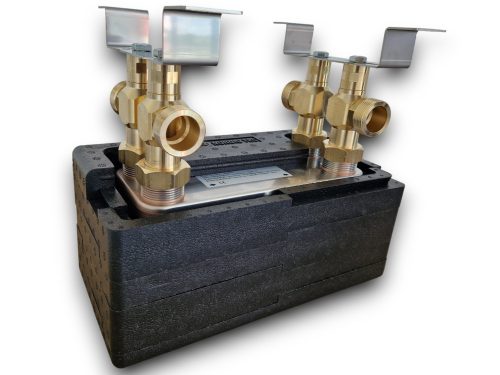

Plate heat exchanger 30 plates 175kW 1" external connection, with support structure and insulation Ba-32-30
