Maximum power of heat exchanger: 390kW

Rated power: 65-150kW

Number of discs: 70

Connection: 4x 1¼” external thread

Nominal flow: 12 m³/h

Heat exchange surface: 1.89 m²

Operating pressure: 30 bar

Test pressure: 45-60 bar

Min. temperature: -190°C

Max. temperature: +225°C

Weight: 10.5 kg

Plate material: stainless steel 304 or 316

Slab thickness: 0.4 mm

Solder material: 99.9% Cu

DIMENSIONS:

Length (A): 286 mm

Width (B): 116 mm

Depth (F): 175 mm

Distance (C): 234 mm

Distance (D): 63 mm

Operating tips:

⋅ It is recommended to install the heat exchanger vertically

⋅The sides must be connected in countercurrent

⋅The heat exchanger must be cleaned periodically

Technical data of heat exchanger insulation:

Material: foamed, heat-resistant plastic
Material thickness: 20 mm
Heat load : max. 180°C

The excellent thermal conductivity factor: 0.0029 W/(m x H) provides optimal insulation.

More information:

Plate heat exchanger with insulation

390kW heat exchanger

70 plate stainless design

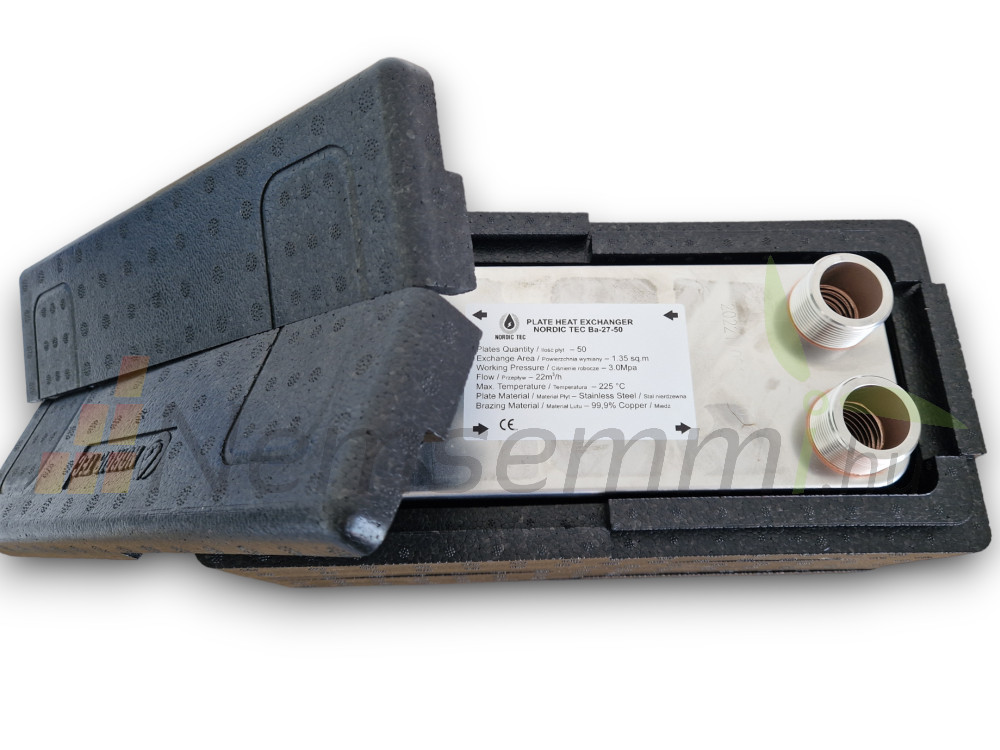

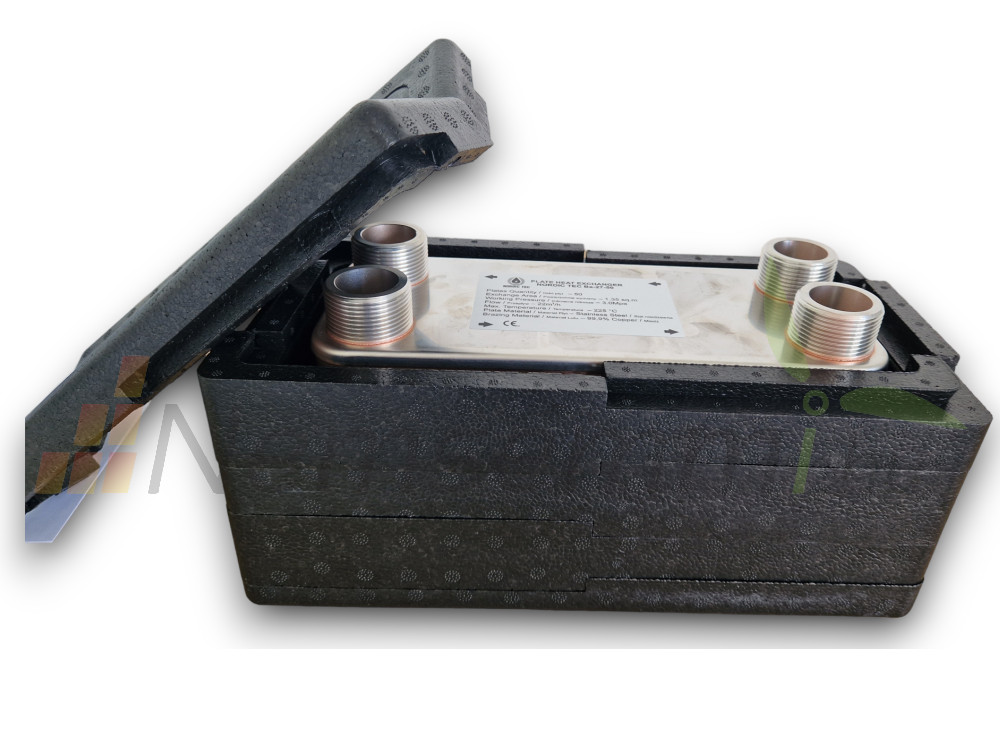

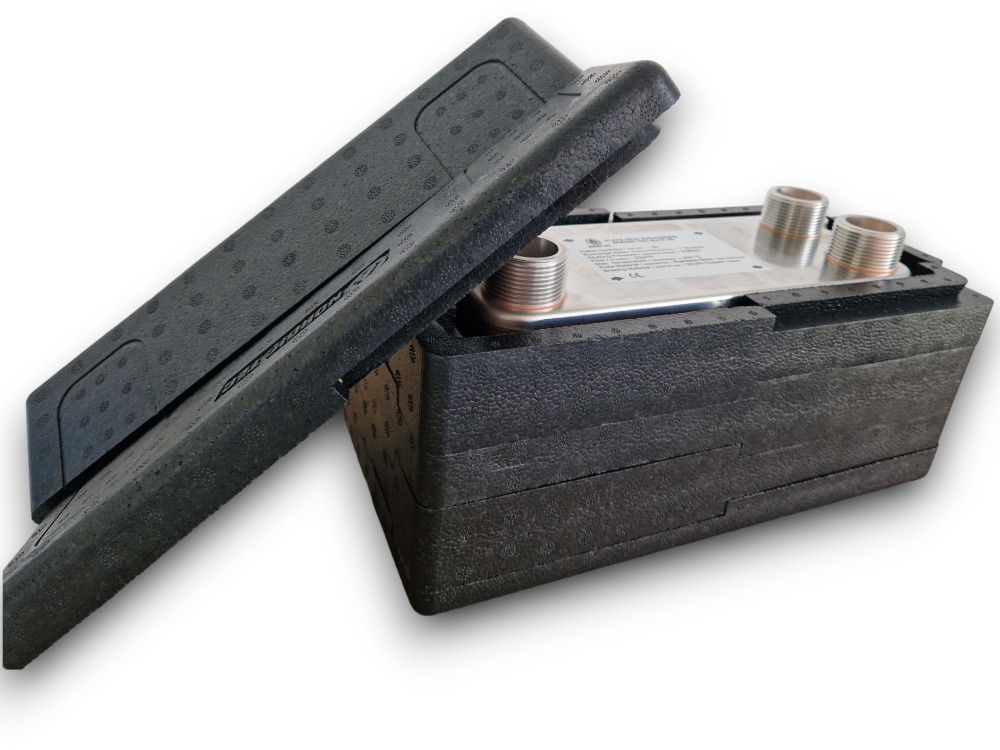

Insulating box for BA-27-70 plate heat exchanger.
Easy-to-install insulation for heat exchanger, can be placed on it with one movement.

Parts of insulation:

- 1 pair of cover plates
- 5 lifting plates

Plate heat exchanger with insulation 70 plates 390kW 4x1 1/4" with external connection Ba-27-70
