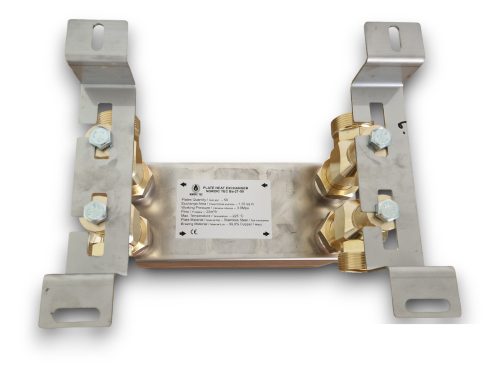

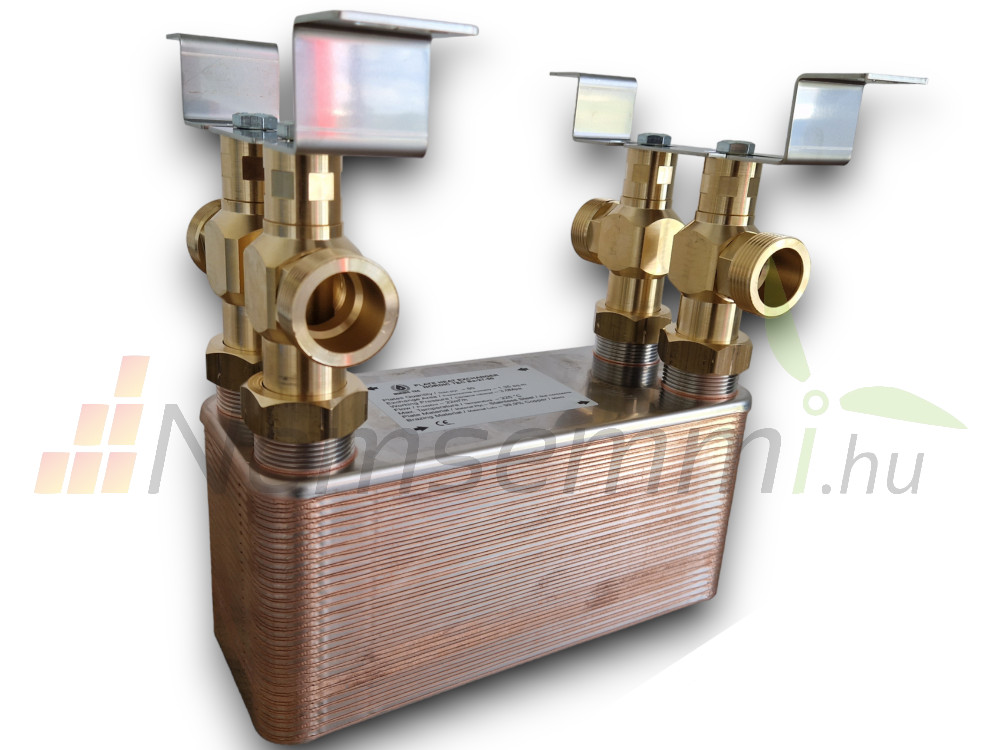

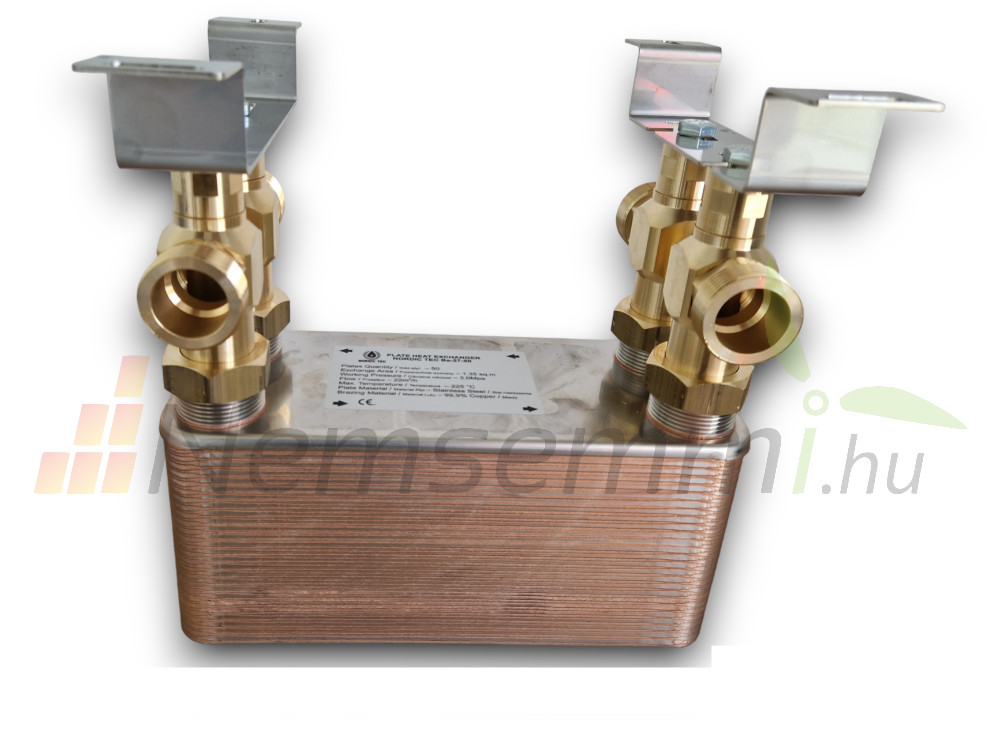

Heat exchanger with support bracket

Maximum power of heat exchanger: 390kW

Rated power: 65-150kW

Number of discs: 70

Connection: 4x 1¼” external thread

Nominal flow: 12 m³/h

Heat exchange surface: 1.89 m²

Operating pressure: 30 bar

Test pressure: 45-60 bar

Min. temperature: -190°C

Max. temperature: +225°C

Weight: 10.5 kg

Plate material: stainless steel 304 or 316

Slab thickness: 0.4 mm

Solder material: 99.9% Cu

DIMENSIONS:

Length (A): 286 mm

Width (B): 116 mm

Depth (F): 175 mm

Distance (C): 234 mm

Distance (D): 63 mm

Operating tips:

⋅ It is recommended to install the heat exchanger vertically

⋅The sides must be connected in countercurrent

⋅The heat exchanger must be cleaned periodically

Heat exchanger support bracket

Connector size: 4x1 1/4"

Connector material: copper

More information:

Heat exchanger with support structure

390kW heat exchanger

70 plate stainless design

With support structure. If you want to build a high-quality heating system, you need not only high-quality raw materials, but also a sophisticated implementation. The plate heat exchanger wall bracket is the perfect solution for this. With the help of this, the wiring system will not keep your heat exchanger on the wall or unsightly close to the wall.

Plate heat exchanger with 70 plates 390kW 4x1 1/4" external connection with support structure
