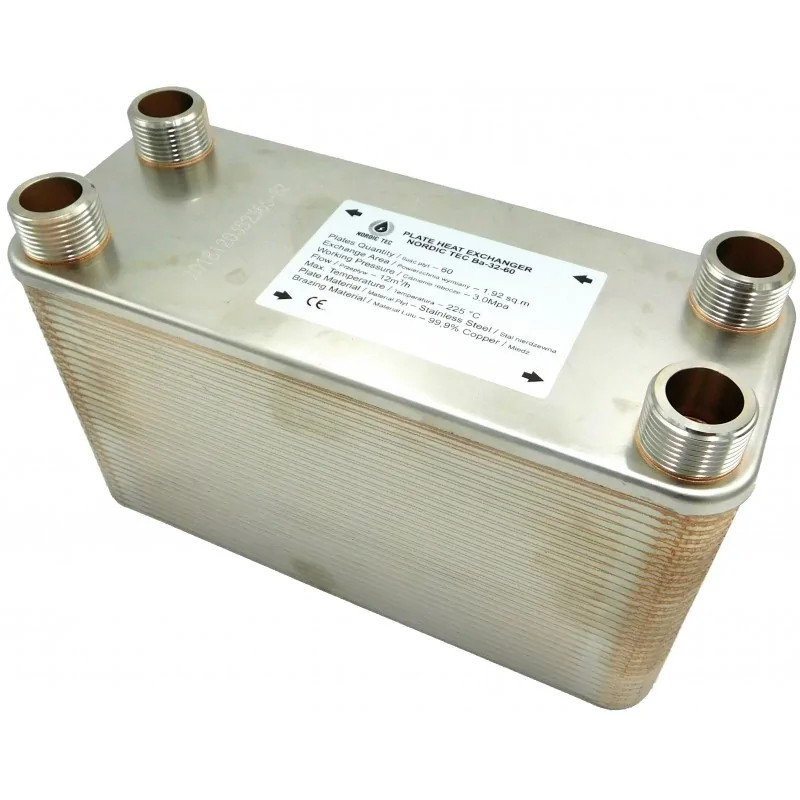

Plate heat exchanger

Maximum power of heat exchanger: 285kW
Nominal power: 50-110kW
Number of discs: 50
Connection: 4x 1 1/4" external thread
Nominal flow: 12 m³/h
Heat exchanger side: 1,350 m²
Operating pressure: 30 bar
Test pressure: 45-60 bar
Min. temperature: -190°C
Max. temperature: +225°C
Weight: 7700 g
Plate material: stainless steel 304 or 316
Plate thickness: 0.4 mm
Solder material: 99.9% Cu

DIMENSIONS:

Length (A): 286 mm
Width (B): 116 mm< /span>
Depth (F): 127 mm
Distance (C) : 234 mm
Distance (D): 63 mm

Operation tips:
⋅ It is recommended to install the heat exchanger vertically
⋅The sides must be connected in countercurrent
⋅Periodic cleaning must be carried out on a heat exchanger

More information:

Plate heat exchanger

285kW heat exchanger
50 plate stainless design
< span style="color: #000000;">Features:

316L stainless steel, soldered with 99.9% Cu copper.
Heating power between 50 and 110 kW, depending on the supply.
Connection diameter 5/4" (DN 32)
Operating pressure 30 bar
Test pressure 45-60 bar
Nominal flow rate - 12 m³/h
Heating replacement surface 1.35 m²

Plate heat exchanger 50 plates 285kW 4x1 1/4" with external connection
