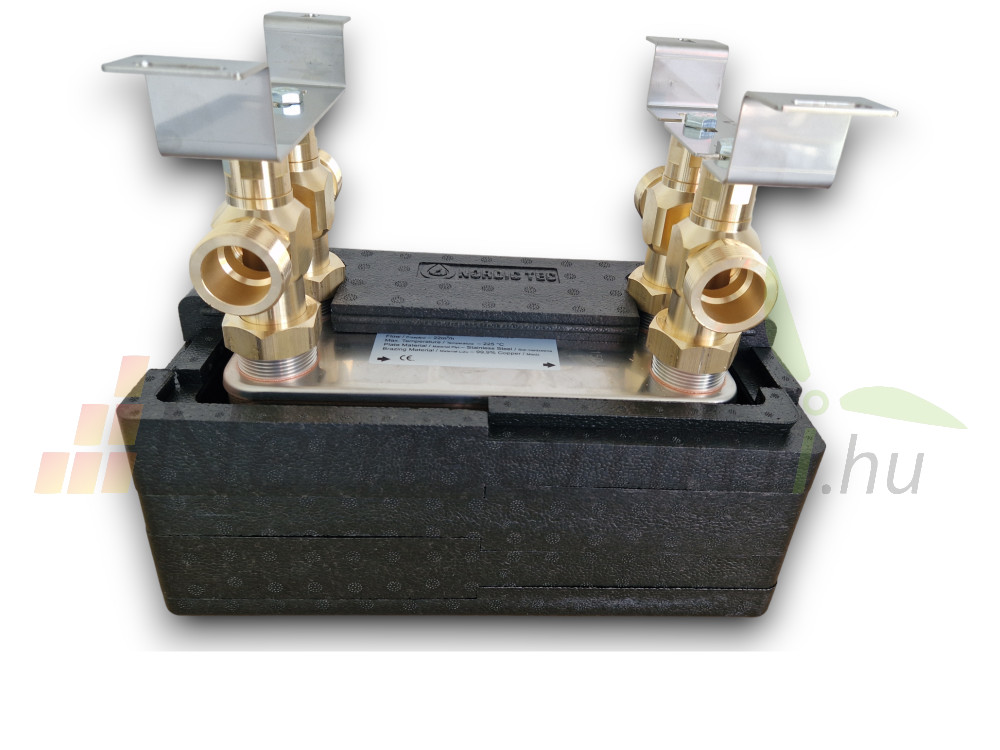

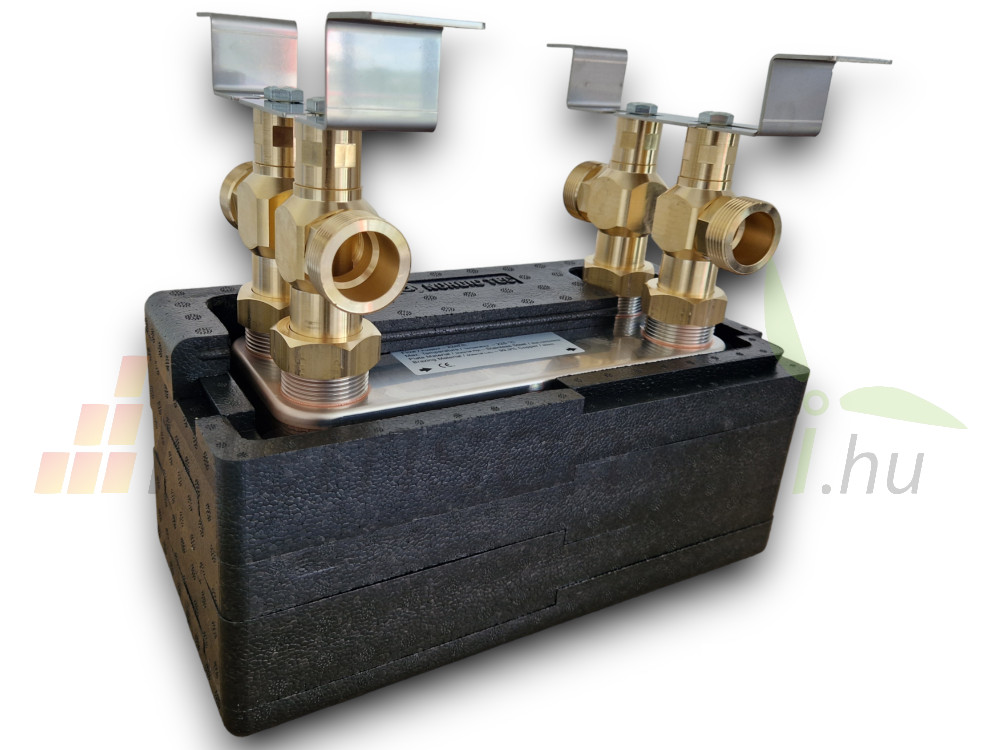

Heat exchanger with support and insulation

< meta charset="UTF-8" />

Maximum power of heat exchanger: 285kW

Rated power: 50-110kW

Number of discs: 50

Connection: 4x 1 1/4” external thread

Nominal flow: 12 m³/h

Heat exchanger side: 1,350 m²

Operating pressure: 30 bar

Test pressure: 45-60 bar

Min. temperature: -190°C

Max. temperature: +225°C

Weight: 7700 g

Plate material: stainless steel 304 or 316

Slab thickness: 0.4 mm

Solder material: 99.9% Cu

DIMENSIONS:

Length (A): 286 mm

Width (B): 116 mm

Depth (F): 151 mm

Distance (C): 234 mm

Distance (D): 63 mm

Operating tips:

⋅ It is recommended to install the heat exchanger vertically

⋅The sides must be connected in countercurrent

⋅The heat exchanger must be cleaned periodically

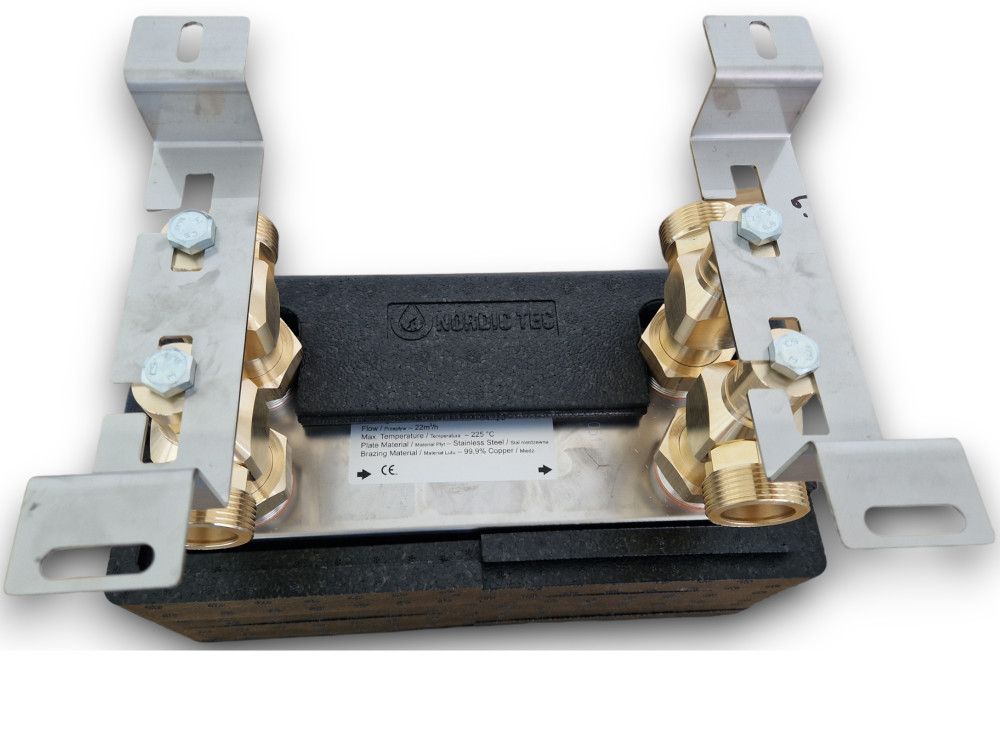

Heat exchanger support bracket

Connector size: 4x1 1/4"

Connector material: copper

Heat exchange insulation

Material: foamed, heat-resistant plastic
Material thickness: 20 mm
Heat load : max. 180 °C
The excellent thermal conductivity: 0.0029 W/(m x H) provides optimal insulation

More information:

Heat exchanger complete set

285kW heat exchanger

50 plate stainless version

Heat exchanger with support structure, including insulation.

Plate heat exchanger with insulation 50 plates 285kW 4x1 1/4" external connection, with support structure and insulation Ba-27-50
