Technical data of the heat exchanger:

< meta charset="UTF-8" />

Maximum power of heat exchanger: 165kW

Rated power: 20-45kW

Number of discs: 40

Connection: 4x 3/4” external thread

Nominal flow: 4 m³/h

Heat exchange surface: 0.920 m²

Operating pressure: 20 bar

Test pressure: 45 bar

Min. temperature: -190°C

Max. temperature: +225°C

Weight: 3300 g

Plate material: stainless steel 304 or 316

Slab thickness: 0.3 mm

Solder material: 99.9% Cu

DIMENSIONS:

Length (A): 315 mm

Width (B): 73 mm

Depth (F): 97 mm

Distance (C): 278 mm

Distance (D): 40 mm

Operating tips:

⋅ It is recommended to install the heat exchanger vertically

⋅The sides must be connected in countercurrent

⋅The heat exchanger must be cleaned periodically

Technical data of heat exchanger insulation:

Material: foamed, heat-resistant plastic
Material thickness: 20 mm
Heat load : max. 180°C

The excellent thermal conductivity factor: 0.0029 W/(m x H) provides optimal insulation.

More information:

Plate heat exchanger with insulation

165kW heat exchanger

40 plate stainless design

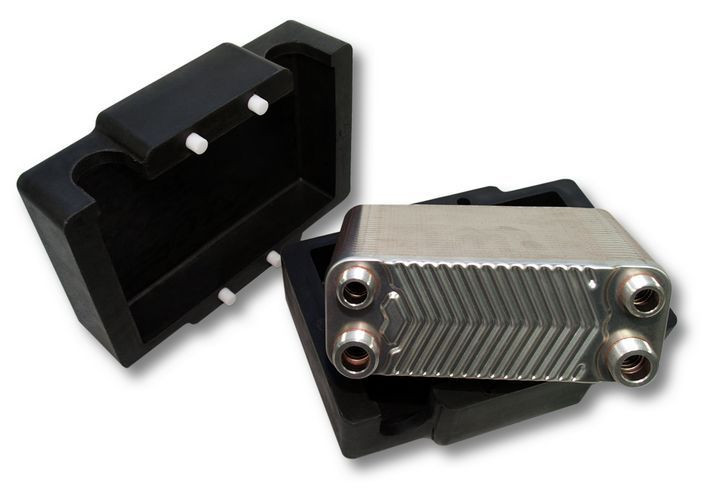

Insulating box for BA-23-40 plate heat exchanger.
Easy-to-install insulation for heat exchanger, can be placed on it with one movement.

Parts of insulation:

- 1 pair of covers
- 1 lifting plate

Plate heat exchanger with insulation 40 plates 165kW with 4x3/4" external connection
