Plate heat exchanger 40 plates 165 kW 4x3/4" with external connection and support structure

• Details
• Info

Details

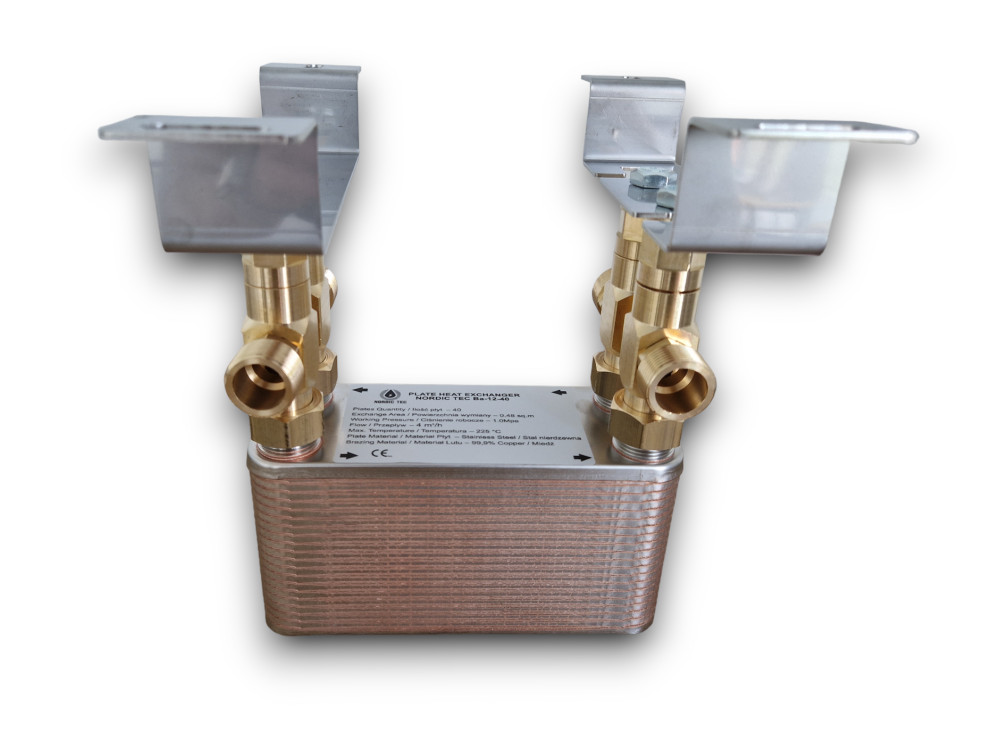

Heat exchanger with holder

Maximum power of heat exchanger: 165kW

Rated power: 20-45kW

Number of discs: 40

Connection: 4x 3/4” external thread

Nominal flow: 4 m³/h

Heat exchange surface: 0.920 m²

Operating pressure: 20 bar

Test pressure: 45 bar

Min. temperature: -190°C

Max. temperature: +225°C

Weight: 3400 g

Plate material: stainless steel 304 or 316

Slab thickness: 0.3 mm

Solder material: 99.9% Cu



DIMENSIONS:

Length (A): 315 mm

Width (B): 73 mm

Depth (F): 97 mm

Distance (C): 278 mm

Distance (D): 40 mm



Operating tips:

⋅ It is recommended to install the heat exchanger vertically

⋅The sides must be connected in countercurrent

⋅The heat exchanger must be cleaned periodically

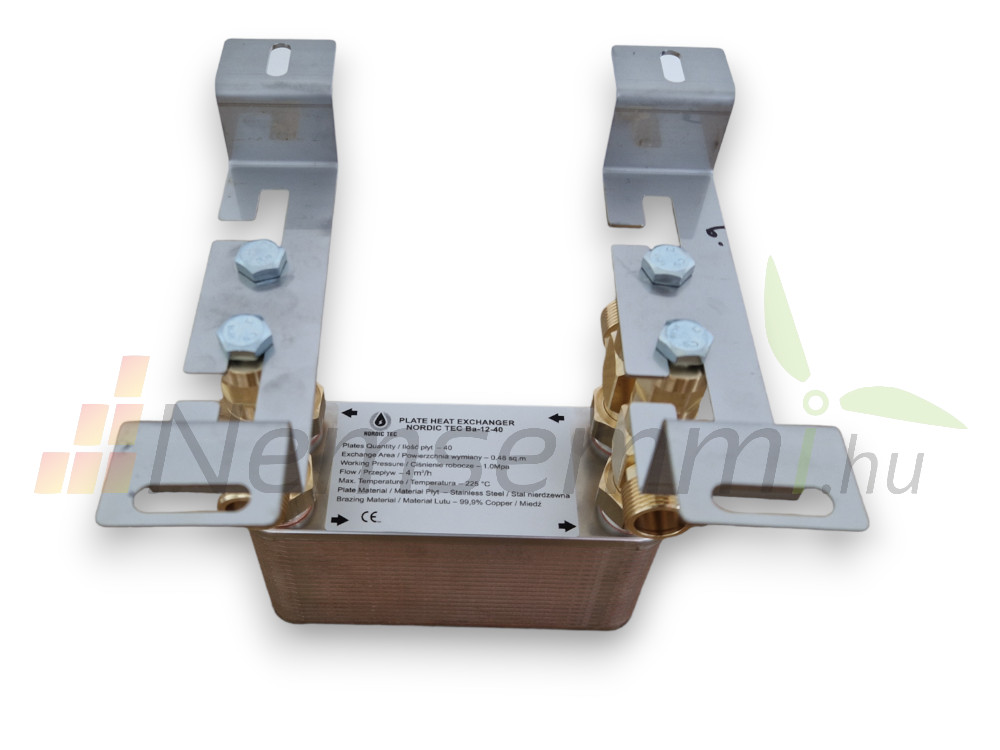

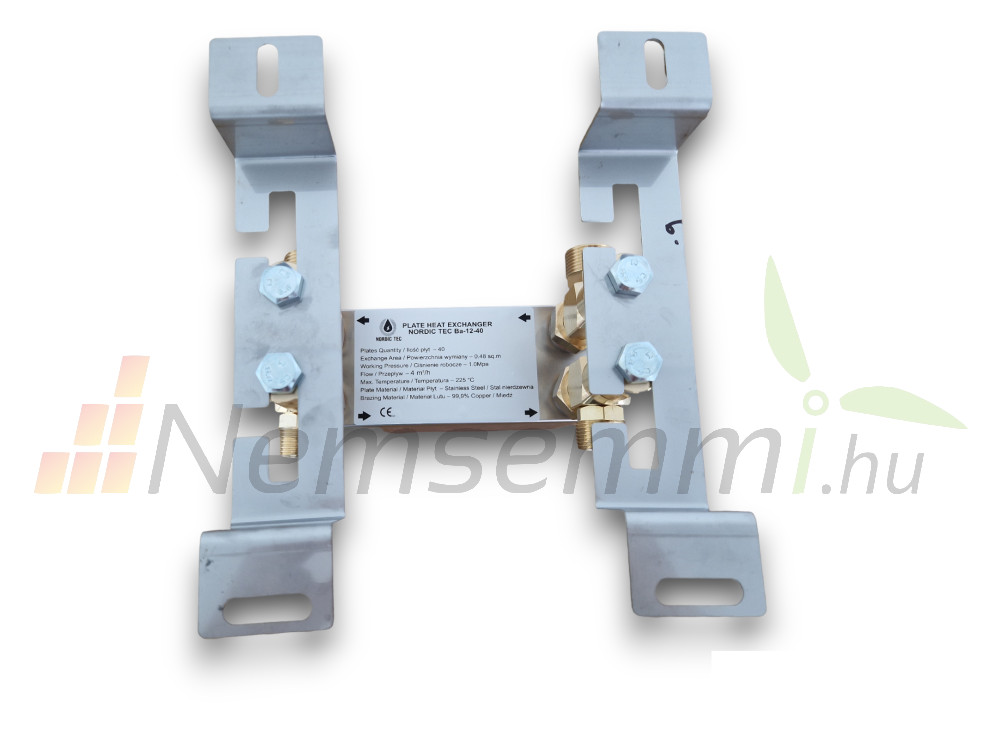

Heat exchanger support bracket

Connector size: 3/4"
Connector material: copper

More information:

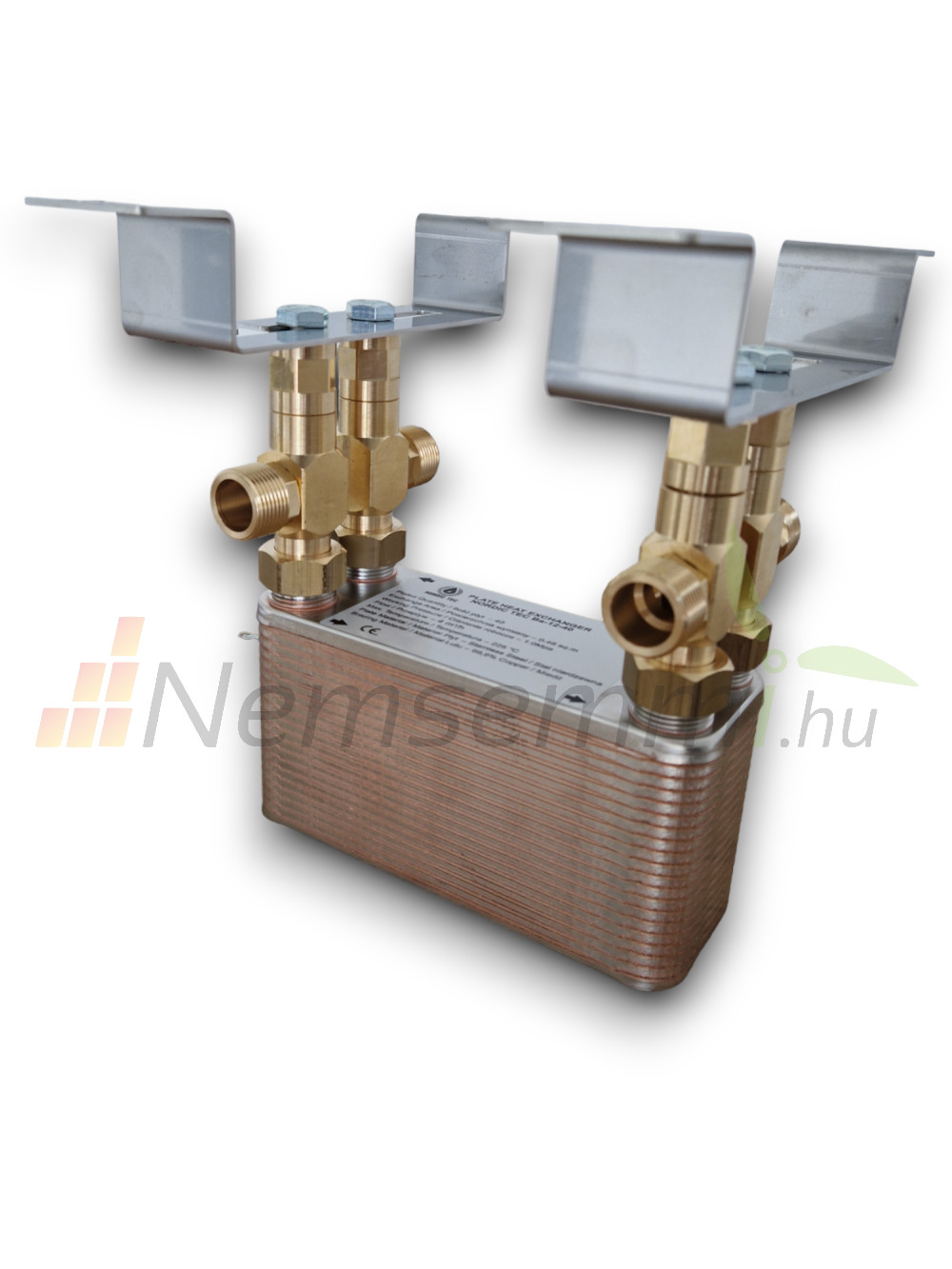

Heat exchanger with support structure

165 kW plate heat exchanger

40 plate stainless design

With support structure.

Info

Vonalkód:

3202312211397

EAN-kód:

5202307110857

MPN-kód:

NS07110857

Weight:

3.6 kg/pcs
