Heat exchanger with support and insulation

Maximum power: 55kW

Rated power: 7-20

Number of discs: 12

Connection: 4x 3/4” external thread

Flow velocity: 12x0.023 m²

Nominal flow: 4 m³/h

Heat exchange surface: 0.276 m²

Operating pressure: 20 bar

Test pressure: 45 bar

Min. temperature: -190°C

Max. temperature: +225°C

Weight: 1.2 kg

Plate material: stainless steel 304 or 316

Slab thickness: 0.3 mm

Solder material: 99.9% Cu

DIMENSIONS:

Length (A): 312mm

Width (B): 71mm

Depth (F): 32mm

Distance (C): 278mm

Distance (D): 40mm

Operating tips:

⋅ It is recommended to install the heat exchanger vertically

⋅The sides must be connected in countercurrent

⋅The heat exchanger must be cleaned periodically

Heat exchanger support bracket

Connector size: 3/4"

Connector material: copper

Heat exchange insulation

Material: foamed, heat-resistant plastic
Material thickness: 20 mm
Heat load : max. 180 °C
The excellent thermal conductivity: 0.0029 W/(m x H) provides optimal insulation

More information:

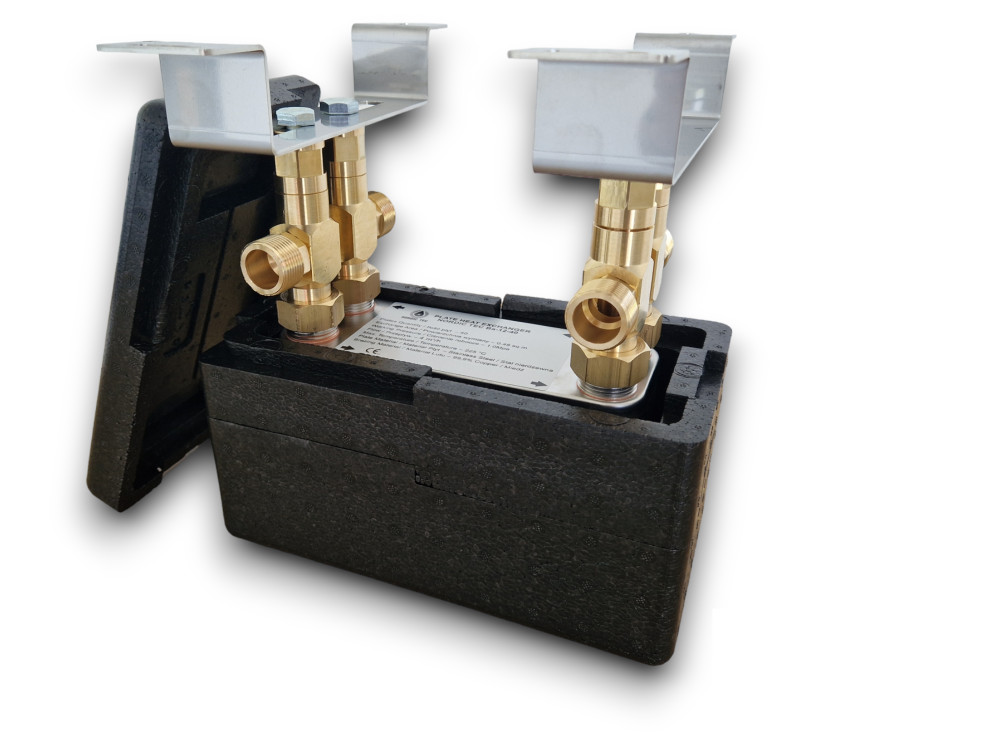

Heat exchanger complete set

55kW heat exchanger

12 plate stainless design

Heat exchanger with support structure, including insulation.

Plate heat exchanger with insulation 12 plates 55kW with 3/4" external connection, support structure and insulation Ba-23-12
