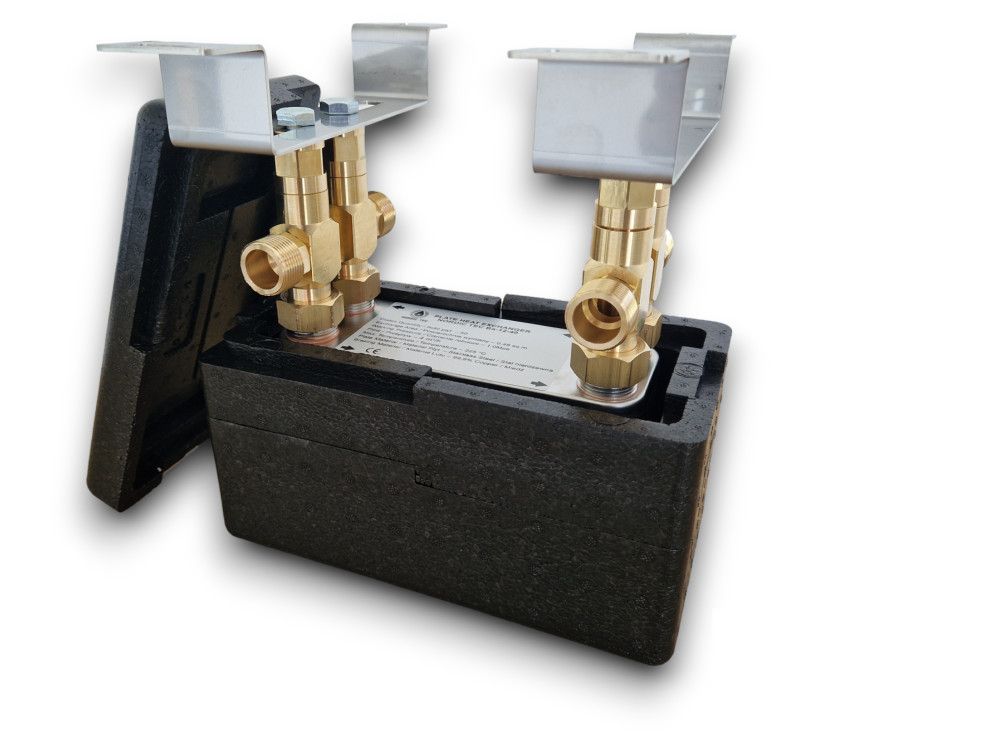

Heat exchanger with support and insulation

< meta charset="UTF-8" />

Maximum power of heat exchanger: 150kW

Rated power: 30-50kW

Number of discs: 40

Connection: 4x 1” external thread

Nominal flow: 8 m³/h

Heat exchange surface: 0.640 m²

Operating pressure: 20 bar

Test pressure: 40 bar

Min. temperature: -190°C

Max. temperature: +225°C

Weight: 2800 g

Plate material: stainless steel 304 or 316

Slab thickness: 0.4 mm

Solder material: 99.9% Cu

DIMENSIONS:

Length (A): 220 mm

Width (B): 90 mm

Depth (F): 98 mm

Distance (C): 180 mm

Distance (D): 52 mm

Operating tips:

⋅ It is recommended to install the heat exchanger vertically

⋅The sides must be connected in countercurrent

⋅The heat exchanger must be cleaned periodically

Heat exchanger support bracket

Connector size: 1"

Connector material: copper

Heat exchange insulation

Material: foamed, heat-resistant plastic
Material thickness: 20 mm
Heat load : max. 180 °C
The excellent thermal conductivity: 0.0029 W/(m x H) provides optimal insulation

More information:

Heat exchanger complete set

150kW heat exchanger

40 plate stainless design

Heat exchanger with support structure, including insulation.

Plate heat exchanger with insulation 40 plates 150kW with 1" external connection, support structure and insulation Ba-16-40
