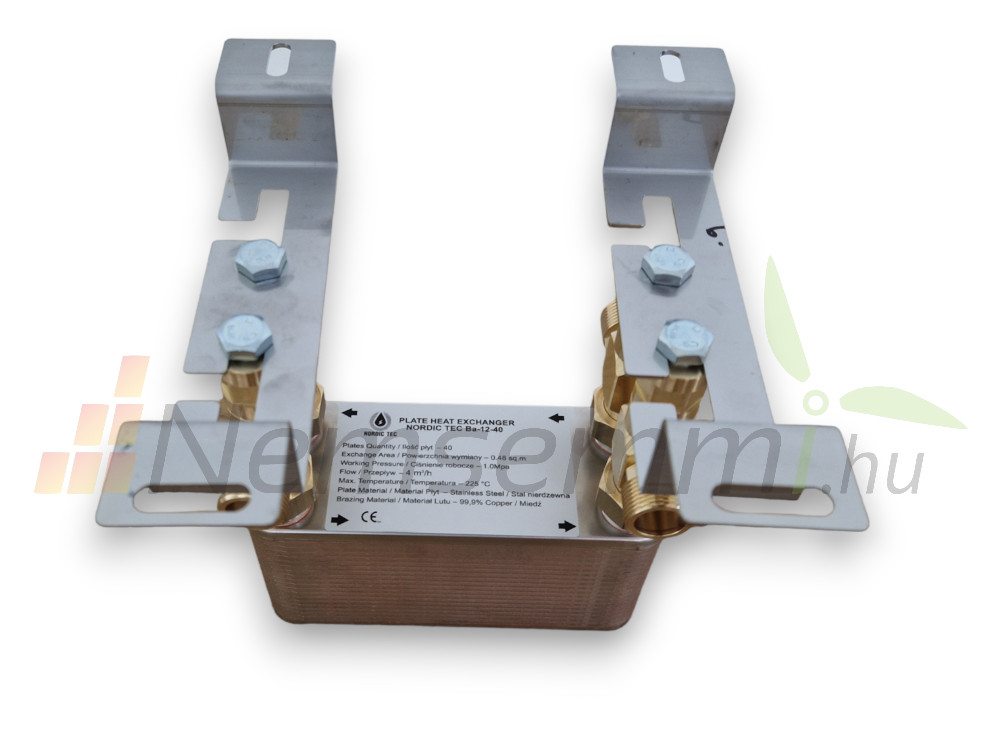

Heat exchanger with support bracket

Maximum power of heat exchanger: 105kW

Rated power: 18-35kW

Number of discs: 26

Connection: 4x1" external thread

Nominal flow: 8 m³/h

Heat exchange surface: 0.416 m²

Operating pressure: 20 bar

Test pressure: 45 bar

Min. temperature: -190°C

Max. temperature: +225°C

Weight: 2100g

Plate material: stainless steel 316

Solder material: 99.9% Cu

DIMENSIONS:

Length (A): 220 mm

Width (B): 90 mm

Depth (F): 65 mm

Distance (C): 180 mm

Distance (D): 52 mm

Operating tips:

⋅ It is recommended to install the heat exchanger vertically

⋅The sides must be connected in countercurrent

⋅The heat exchanger must be cleaned periodically

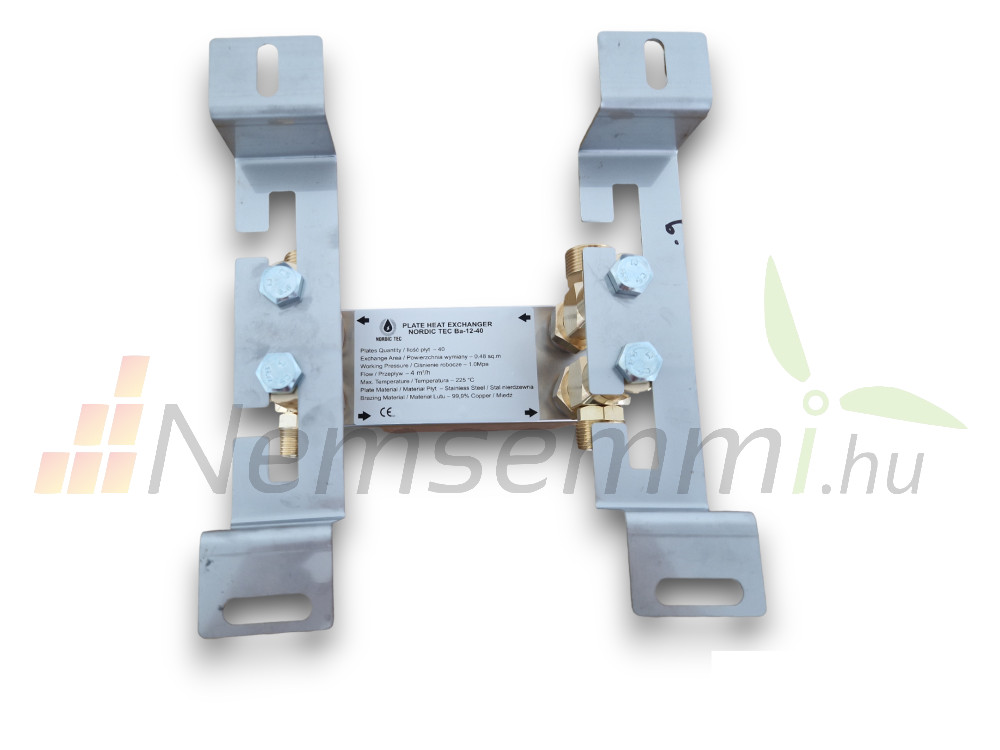

Heat exchanger support bracket

Connector size: 1"

Connector material: copper

More information:

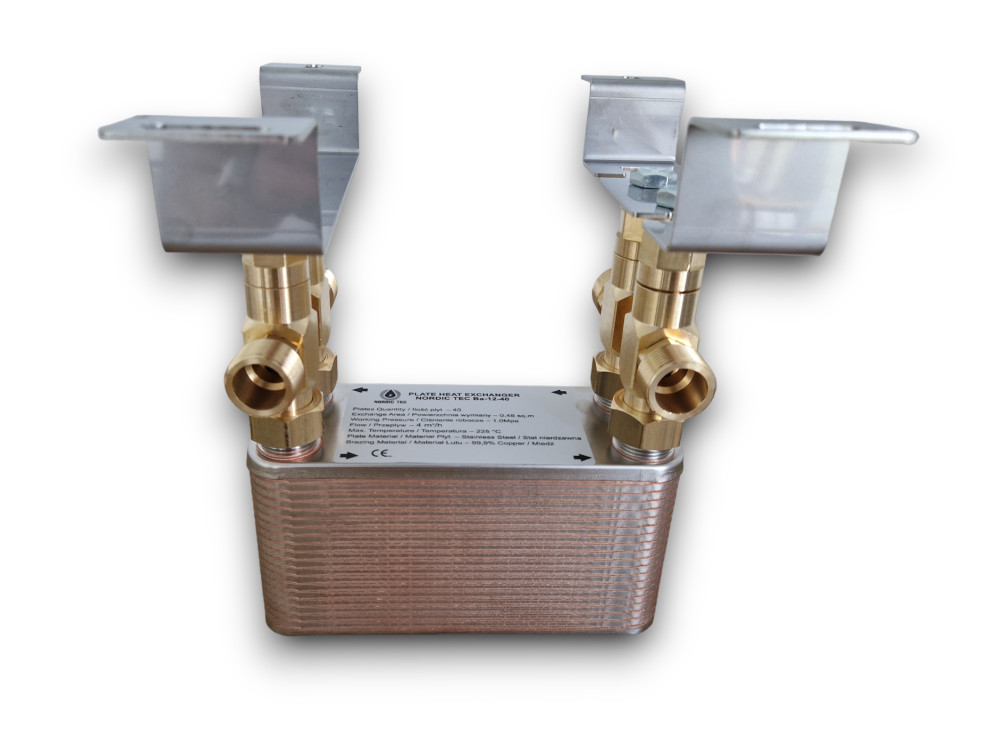

Heat exchanger with support structure

105kW heat exchanger

26 plate stainless design

With support structure. If you want to build a high-quality heating system, you need not only high-quality raw materials, but also a sophisticated implementation. The plate heat exchanger wall bracket is the perfect solution for this. With the help of this, the wiring system will not keep your heat exchanger on the wall or unsightly close to the wall.

Pay attention to compatibility, which depends not only on the diameter of the heat exchanger connector (1"), the distance of the stubs is also limited, you will find a detailed description below.

Plate heat exchanger 26 plates 105kW with 1" external connection and support structure

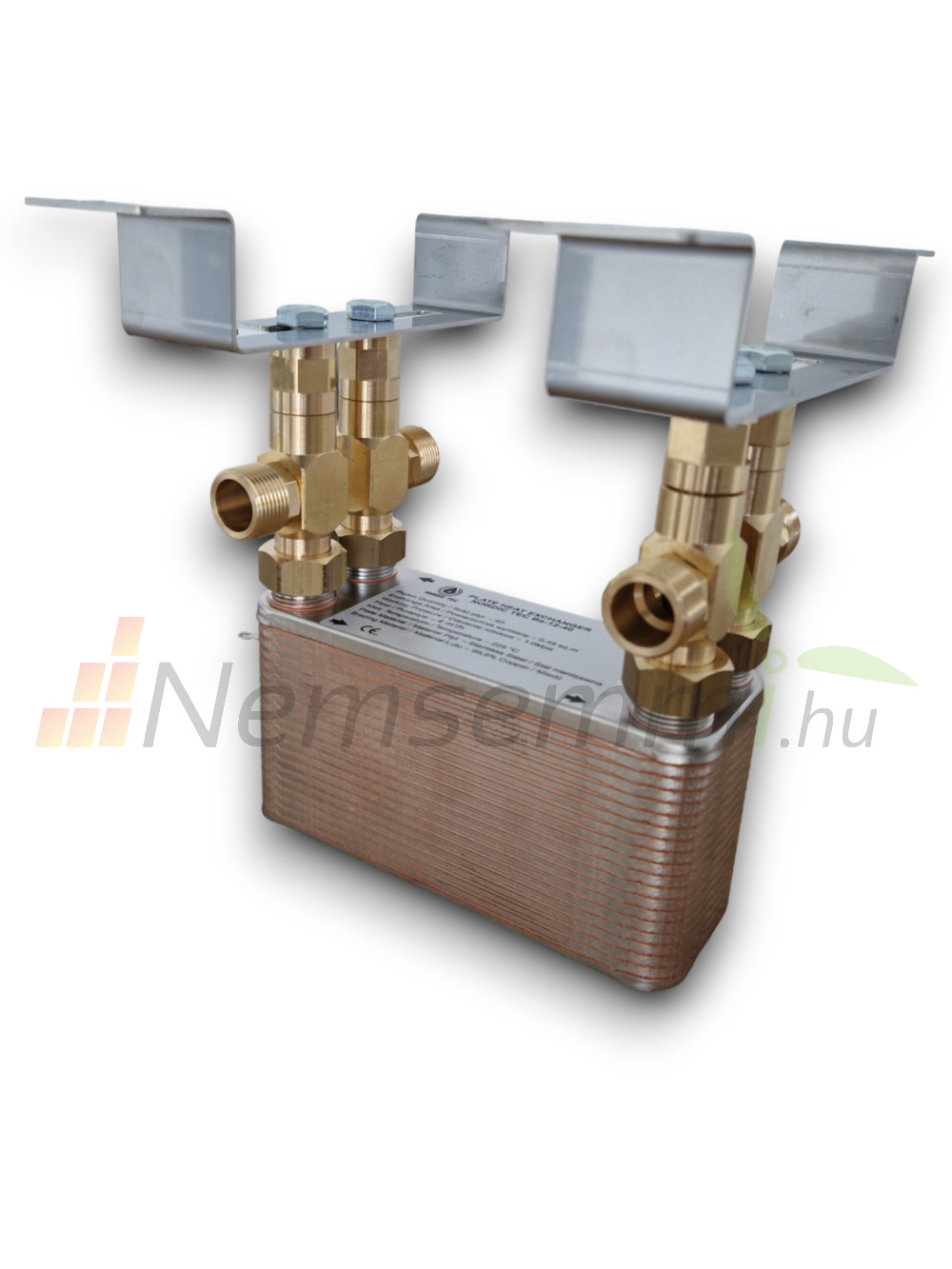

Heat exchanger with support bracket
