Plate heat exchanger 40 plates 85kW with 3/4" external connection and support structure

• Details
• Info

Details

Heat exchanger with holder

Maximum power of heat exchanger: 85kW

Rated power: 12-35kW

Number of discs: 40

Connection: 4x3/4" external thread

Nominal flow: 4 m³/h

Heat exchange surface: 0.480 m²

Operating pressure: 10 bar

Test pressure: 20 bar

Min. temperature: -190°C

Max. temperature: +225°C

Weight: 1850 g

Plate material: stainless steel 304 or 316

Slab thickness: 0.3 mm

Solder material: 99.9% Cu



DIMENSIONS:

Length (A): 191 mm

Width (B): 73 mm

Depth (F): 97 mm

Distance (C): 154 mm

Distance (D): 40 mm



Operating tips:

⋅ It is recommended to install the heat exchanger vertically

⋅The sides must be connected in countercurrent

⋅The heat exchanger must be periodically cleaned

More information:

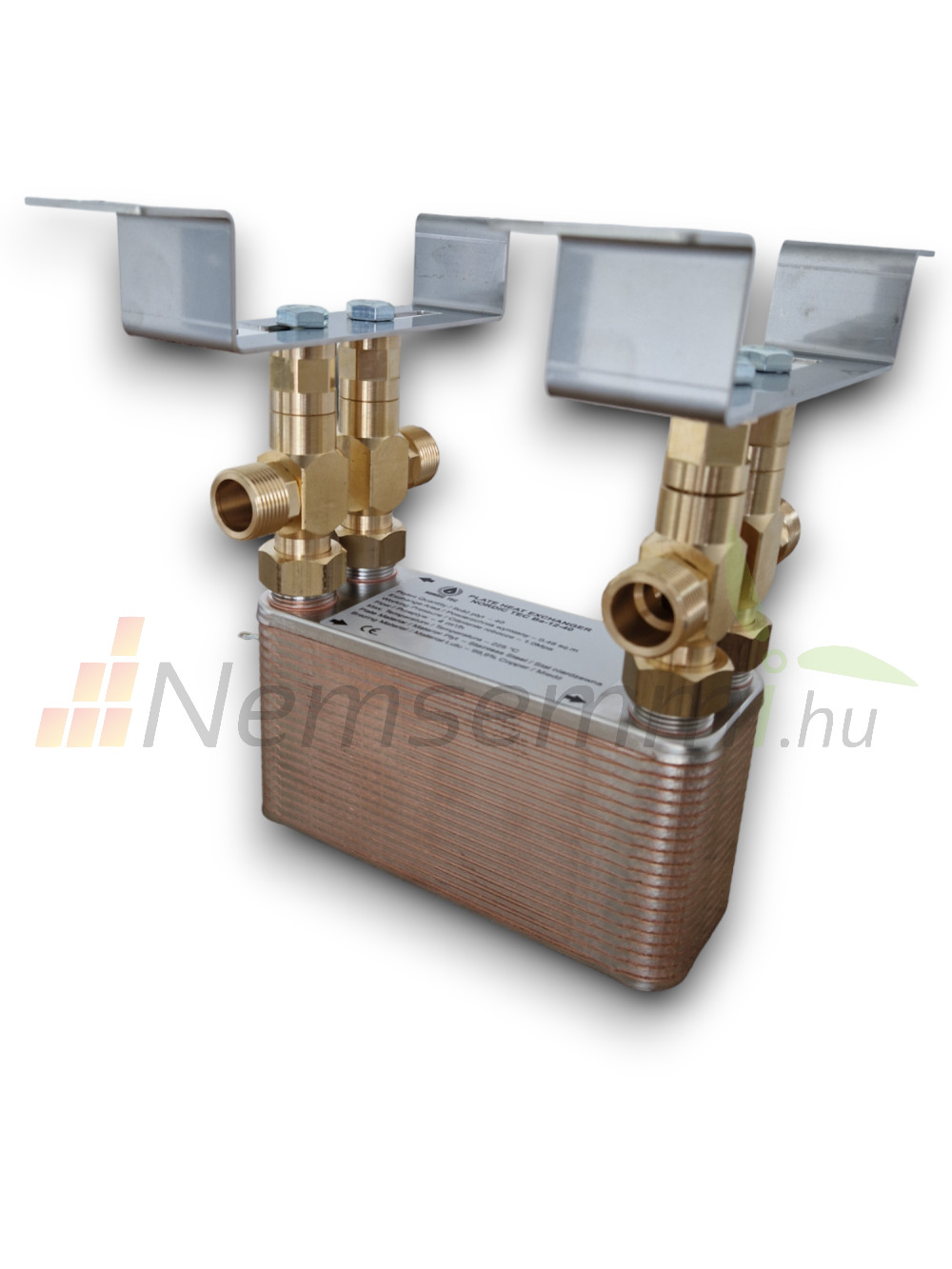

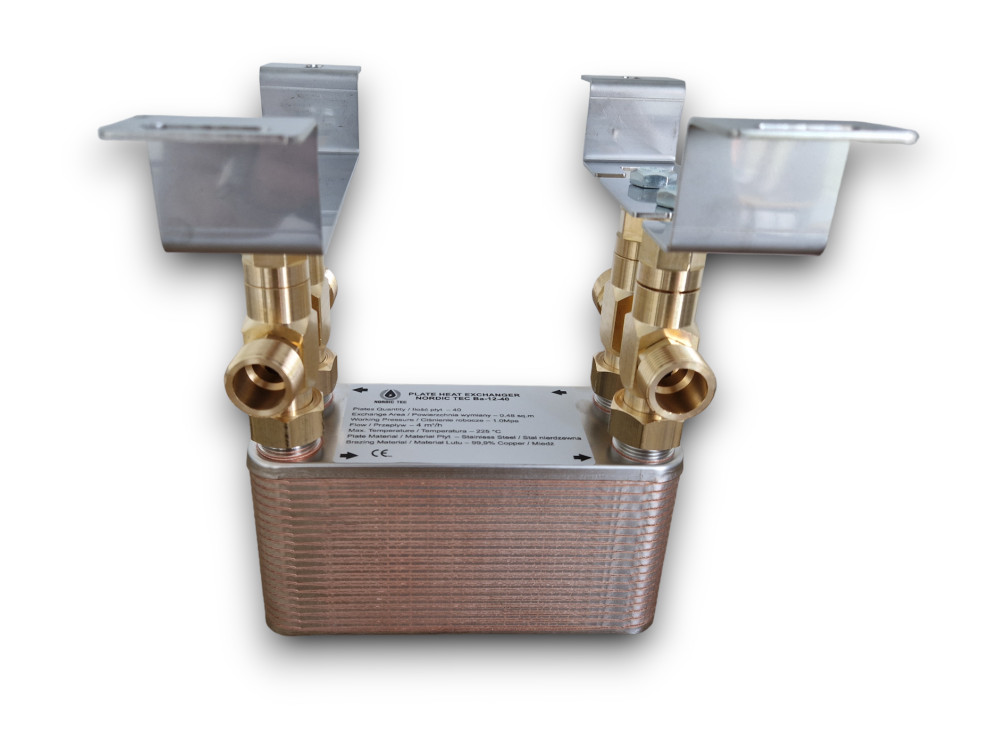

Heat exchanger with support structure

85kW heat exchanger

40 plate stainless design

With support structure.
