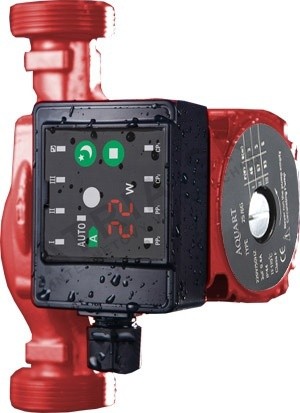

Circulation pump Avansa 25/6/180E 180 mm self-regulating energy-saving heating and solar collector circulation pump

Energy efficient circulation pump "A"

Type: Avansa 25/6/180E
Connection length: 180 mm
Connector size: 6/4"
Voltage: 230V
Power: adjustable between 5-45W
Lift height: 6 meters
Temperature range: -2 +110 C
Maximum pressure: 10 bar
Maximum circulation: 60 liters/minute
Transportable medium: water or a mixture of water and solar antifreeze max. 1:1

The circulation pump is a piece of equipment that is particularly useful in heating, cooling and water supply systems. Here are some areas where it comes in handy:
Heating systems: A circulation pump is responsible for circulating hot water or heating medium between radiators, radiators or underfloor heating systems. This ensures that we reach the same temperature throughout the house or building and prevents the formation of cold spots.
Cooling systems: The use of a circulation pump in cooling systems helps to circulate the coolant more efficiently. This is used, for example, in cars or industrial cooling systems.
Hot water supply: A circulation pump allows hot water to be delivered to faucets and showers faster, saving time and water.
Pumps in water movement: Circulating pumps are often used in the water movement of pools, garden ponds, and other water systems.
Various industrial applications: Circulating pumps are also used in industrial environments, for example in material handling, cooling, process control or pumping systems.

For help, the plumbing thread dimensions are in inches and millimeters.

Energy-saving circulation pump

The purpose of circulating pumps is usually to move liquid efficiently and comfortably, to ensure heat transfer or to create conditions necessary for other processes. Using them can improve energy efficiency, the efficiency of the entire system, and save time in tasks related to the movement of liquids. is allowed to build.
Indicates the current consumption, heating or solar collector system, heat pump, heating it is recommended to connect it to the
colder branch going to the collector. it is best if it is installed in the vertical branch going up.
The pump should only be installed with a horizontal motor shaft.

• Transparent interface
• Easy programming
• Low power consumption
• Night mode
• Self-regulating mode
• Automatic power control adapted to operating mode

Adjustable operating modes
- Δ p-c for constant pressure difference
- Δ p-v for variable pressure difference
- Manual mode
