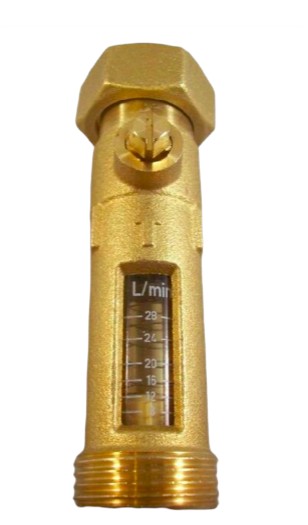

Flow meter flow meter brass 8-28 l/p adjustable flow quantity meter with 3/4" thread

• Details
• Info

Details

Copper flow meter

Maximum operating temperature: 100°C
Maximum pressure: 10 bar
Insulation: EPDM
Length: 135 mm
Flow measurement limits: 8 - 28 l/min
Size of connectors: 3/4 " external thread and 3/4 " internal thread
Material: brass



More information:

Flow meter

Copper flow meter measuring between 8-28 liters / minute
It can be adjusted with the built-in tap the amount of liquid flowing through. If necessary, the flow can be completely blocked if one of the components needs to be installed in front of the flow meter.

The flow meter has a plastic float and a coil spring built in behind a scaled Plexiglas sheet. The float in the flow meter floats in the liquid, so when the flow starts the float would rise to the stop. That is why they use a well-calibrated spring that resists the float. Thus, the float depressed by the spring and raised by the liquid can accurately show the flow of the liquid.

Info

Vonalkód:

00137317

MPN-kód:

NS000144

Weight:

200 g/pcs
