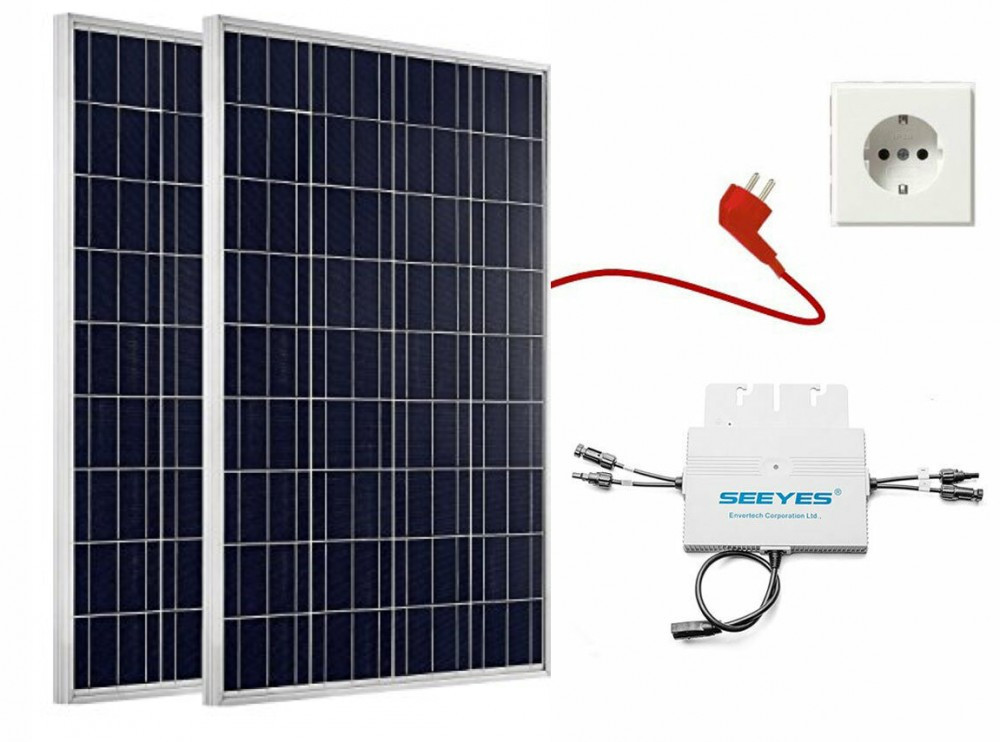

Plug-in solar panel system 230V 600W - compensates momentary consumption in isolated system

Solar system

2 310W monocrystalline solar cells

Maximum power 310Wp
Nominal voltage 33.7V
No-load voltage (Voc) 40.1V
Nominal current 9.08A
Short circuit current (Isc) 9.65A
Maximum system voltage: 1000 V / DC
Ambient temperature.: -40 ... + 85 ° C
Dimensions: 167.5 x 99.2 x 3.5 cm
Weight: 19 Kg
The performance guarantee is 10 years, 90% performance and 25 years 80%
Normal operating temp. 42°C ± 3°C
Temperature coefficient Voc -0.29 %/°C
Temperature coefficient Isc 0.05 % /°C
Temperature coefficient power -0.37 % /°C

1 inverter

Protection level: IP65 outdoor design, we recommend installing next to or under the solar panel.
Maximum humidity: 85%
Size: 238x248x27 mm
Maximum solar panel power: 720W
Maximum output power: 560W
Input voltage from solar panel side: max. 54V
Starting voltage: 18V
Input current: max 9 ,5A
Output voltage: 230 V (184-264 V)
Frequency: 49.8-50.2 Hz
Power factor: 95%
Idle power consumption: < 0.1 W
CE certificate
Conforms to:
VDE-AR-N-4105, VDE 0126-1-1, G83/2, UTE C15-712 -1, AS4777, EN50438, EN62109, EN61000

1 pc 5 meter long network connector
You will also need an earthed plug to connect to an outlet!

Into an outlet solar panel

The 620W solar panel system uses up the energy obtained from the solar panel in the first instance, the surplus is fed directly into the network, thus reducing the amount of electricity coming from the central power source, i.e. reducing consumption, saves money. What the solar panel produces is used by your apartment and only the rest is taken from the battery/isolated network.
You can find the necessary materials for fixing the solar panels in our online store, but you can make it yourself.
Who is this simple and brilliant system particularly suitable for?
Where there is electricity consumption during the day (where there is not?), e.g. air conditioner, the circulation pump of the heating or solar collector, the refrigerator, the electric boiler, washing machine or dishwasher and all the adapters and standby TVs...
These consume a lot can be reduced during sunny periods.
In case of suitable location and good weather, 4 kWh of energy can be saved reach daily.
Before use, we recommend that you consult an electrician, if you are not using it in an isolated operation, contact your electricity supplier. In many places in the EU, after requesting a round-trip meter, it can simply be connected to the network! In Hungary, the regulation only allows inverters to be connected in a switch cabinet

Principle of operation: The task of the inverter is to convert the direct current produced by the solar panels into mains voltage. which complies with the 230 V / 50 Hz standard. Our unused energy is lost, so it is worth buying a system as large as the house's consumption during the day.
Important: in the event of a power cut, the inverter is also switched off, thus avoiding risk of possible electric shock.
