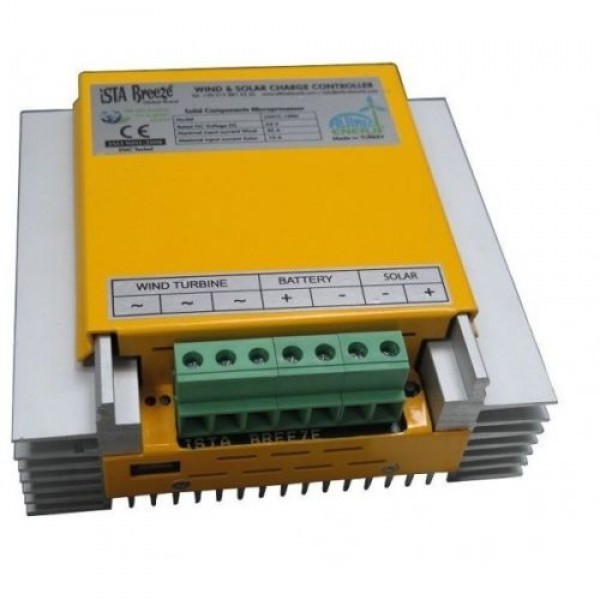

48V 1200W+300W hybrid charge controller for wind wheel and solar panel wind generator wind wheel wind turbine

• Details
• Info

Details

Hybrid charge controller

Aluminum housing
Connection to 48V 3-phase windmill max 1200W
Connection to DC solar panel max. 300W
Connection to 48V battery
Overload protection.< /span>
When the battery is charged or in a storm, the wind wheel brakes the wind wheel with a magnetic brake.

More info:

Microchip controlled hybrid charge controller

Microchip-controlled hybrid charge controllera maximum 1200 Watt wind turbine,and a max. For 300W solar panel

LED lights meaning:

LED lights up yellow -» system is operating
LED does not light yellow -» no electricity is connected to the system
LED flashes yellow -» system is operating (charging)
LED lights up red -» fully charged battery
LED does not light red -» battery not fully charged
LED flashes red -» 1 flash: battery disconnected/battery with incorrect voltage

                            2 flashes: input voltage too high

                              3 flashes: wind wheel spinning too fast

                            4 flashes: overheating

                              continuous flashing: wind wheel braking is in operation

Info

Vonalkód:

00070935

MPN-kód:

NS000075

Weight:

3 kg/pcs
