Spring-return three-way motorized valve 1" KK external thread zone valve three-way mixing valve 230V Switches to voltage, resets automatically if there is no voltage

Nettó ára: 111.59 €
Bruttó ára: 141.72 €

Spring-return three-way motorized valve 1" KK external thread zone valve three-way mixing valve 230V Switches to voltage, resets automatically if there is no voltage

Nettó ára: 111.59 €
Bruttó ára: 141.72 €

Szelepjáratok száma:

Kétjáratú

Háromjáratú

Menet mérete:

3/4"

1/2"

1 1/4"

1 1/2"

Csatlakozás típusa:

Külső menet

Belső menet

Feszültség:

230V

Működés típusa:

Rugó visszatérítéses

	Kockázatmentes vásárlás
	180 napos elállás
	Magyar cég, magyarországi raktár!

Máshol olcsóbban látta?

Details
Info

Details

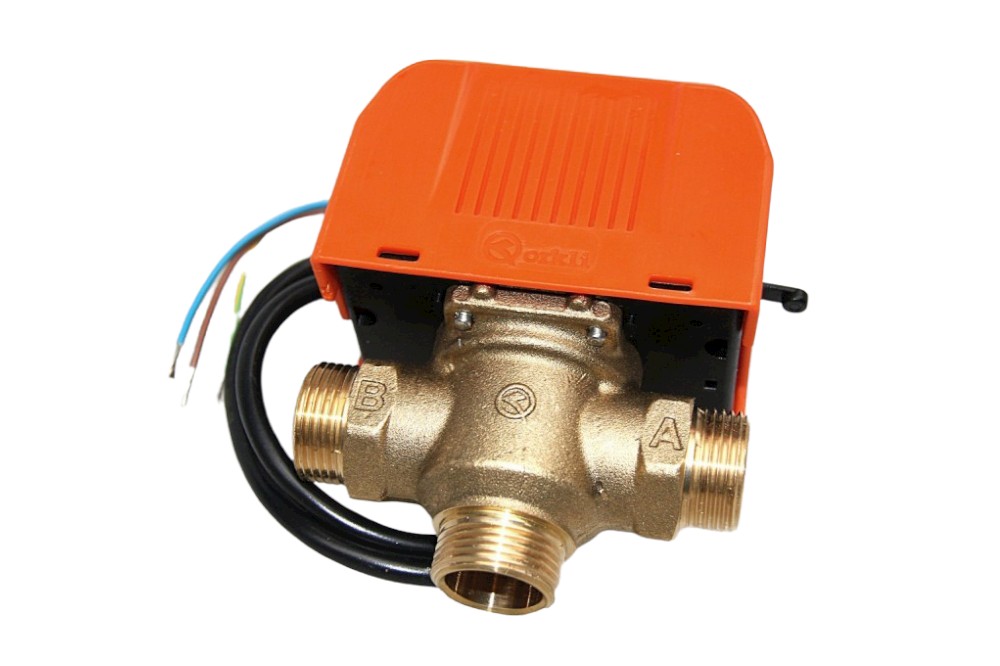

Three-way zone valve

Motorized ball valve, valve for water, heating

- Connection: 1" KK external thread
- Operating voltage: 230V, 50Hz
- Nominal pressure: 10 bar
- Operating temperature: from -20 °C to 160 °C
- Opening time: 12s
- Closing time: 5s

More information:

Motorized valve

3-way motorized valve
It has 3 1" external thread connectors: A, AB, B
In the default position, there is flow between AB and B, and when the valve is energized, between AB and A
< span style="color: #000000;">The valve switches under the influence of voltage (e.g. solar collector control, room thermostat), and then returns to its default position when the voltage is removed.

Can also be switched manually.

Info

Vonalkód:

00070868

EAN-kód:

6445563434017

MPN-kód:

NS000037

Weight:

1 kg/pcs
