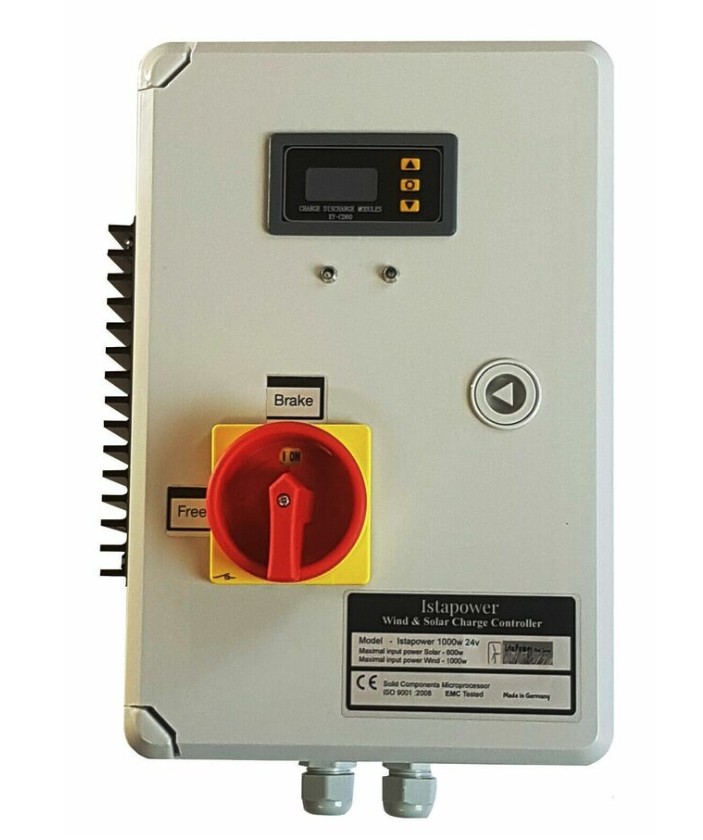

Hybrid wind wheel charging controller

Installation position: vertical, the wire inputs must be at the bottom.
Connection 24 V for 3-phase windmill max 1500W
Connection to DC solar panel max. 600W
Connection to 24V battery
Maximum charging voltage: 29.2 V
Minimum charging voltage: 17.5 V
Maximum input wind generator side current: 60 A
Overload protection.
When the battery is charged or in a storm, the wind wheel brakes the wind wheel with its magnetic brake.
By hand can be switched to braking mode.

Mounting on the wind wheel only when standing or free with fixed propellers, due to the risk of electric shock!!

The main functions of the hybrid charge controller:

Charge control: A charge controller is a device that controls the amount of energy entering the batteries. Maintaining the correct charge level helps extend battery life and optimize charge cycles.
Coordination of energy production: The amount of energy generated by the solar panels and wind wheel is constantly changing depending on the environmental conditions. The task of the charge controller is to coordinate and balance the energy production of the two systems to ensure the optimal charge level of the batteries.
Setting the charging priority: The charging controller allows you to set the priority between the solar panels and the wind wheel, depending on which energy source is more abundantly available at the given location.< /span>
Overcharge and deep discharge protection: The charge controller prevents the batteries from overcharging and deep discharge, which can damage them in the long term. This increases the lifetime and reliability of the batteries.
Data collection and monitoring: Many more modern charge controllers have data collection and monitoring capabilities. With the help of these, we can monitor energy consumption, the condition of the batteries and the performance of the system.

More information:

Windwheel charge controller< /span>

Microchip-controlled hybrid charge controllera maximum 1500 Watt wind turbineand a max. For 600 W solar panel.

Meaning of LED lights:

LED lights up yellow -» system is operating
LED does not light yellow -» no electricity is connected to the system
LED flashes yellow -» system is operating (charging)
LED lights up red -» fully charged battery or braking mode
LED does not light red -» battery is not fully charged
The display shows voltage or we get information about the battery charge.
The minimum and maximum charging voltage can be modified and set with the buttons.

A hybrid charge controller is a device used to simultaneously charge and control the energy generated by solar panels and wind turbines. This makes it possible to efficiently utilize and store energy from both renewable energy sources.

Solar panels generate electricity from sunlight, while the windmill gets electricity from the power of the wind. The systems of both energy sources have a variable nature, so proper regulation and coordination are important for efficient operation.

24V 1500W+600W hybrid charge controller for wind wheel and solar panel wind generator wind wheel wind turbine
