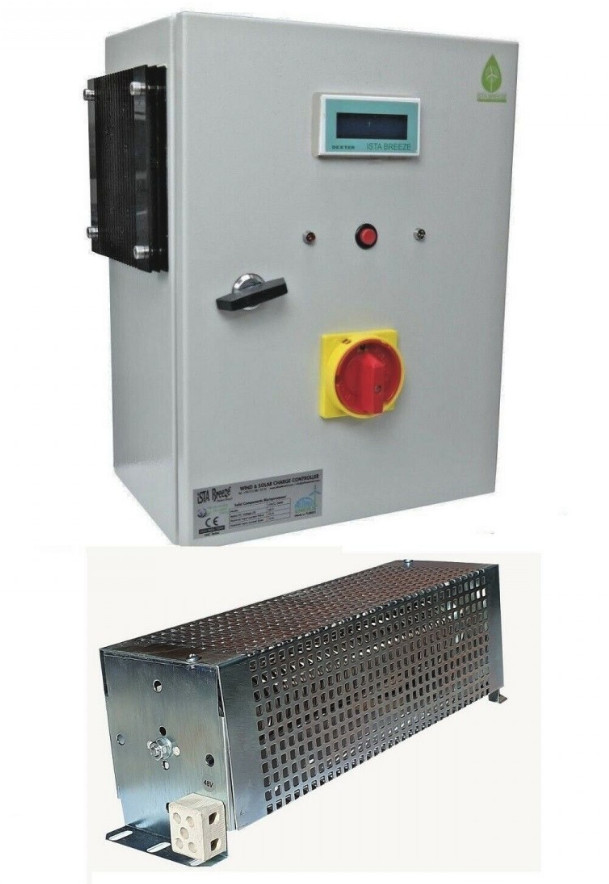

24V 1500W+300W hybrid charge controller for wind wheel and solar panel wind generator wind wheel wind turbine

Wind generator and solar charge controller

Aluminum housing
LCD display with 6 functions: current, power, RPM, battery voltage , charging voltage, temperature
Connection to 24 V 3-phase windmill max 1500 W
Connection to DC solar panel max. 300 W
Connection to 24 V battery
Battery minimum voltage 17.5 V
Charging voltage: 25.2 V
Maximum charging current for solar cells: 10 A
Maximum charging current: 55 A
Maximum braking resistance 1.5kW (1.8Ohm)
Anti-moisture protection: IP20
Overload protection.
Wind wheel braking voltage 26 from .9 V
Operating temperature Normal: 20 ~ + 55 ° C / 35 ~ 85% RH Industrial: 30 ~ + 55 ° C / 35 ~ 85% RH
When the battery is charged or in a storm, the wind wheel brakes the wind wheel with a magnetic brake.
Dimensions: 480 x 360 x 230 mm
Weight: 12 kg
Minimum recommended battery size 2x100 Ah, 12 V
Resistance size: 290 x 250 x 130 mm
Weight: 4.5 kg

Microchip controlled hybrid wind wheel and solar charge controller

A maximum 1500 Watt wind wheel, and a max. Charge controller suitable for 300 W solar panels. This equipment can even be used as a monitoring device, and it can safely charge your batteries with a combination of solar panels and wind generators.
The charge controller has low internal consumption and stable operation. . With this equipment, you can extend the life of the wind turbine and the battery.
The controller has a built-in wind generator brake, which is activated at maximum current.
A short-circuit switch is factory-built into the charging controller, which can brake the wind generator. Attention, the wind wheel is not suitable for long-term braking, only for stopping it from rotating, then the turbine rotor must be mechanically positioned!
The equipment is equipped with built-in lightning protection.
Protection devices: against deep discharge, short circuit, overload and wrong polarity.
Supplied with an integrated LCD display.
The controller brakes the wind generator with the help of an external resistor when the battery is full state.
