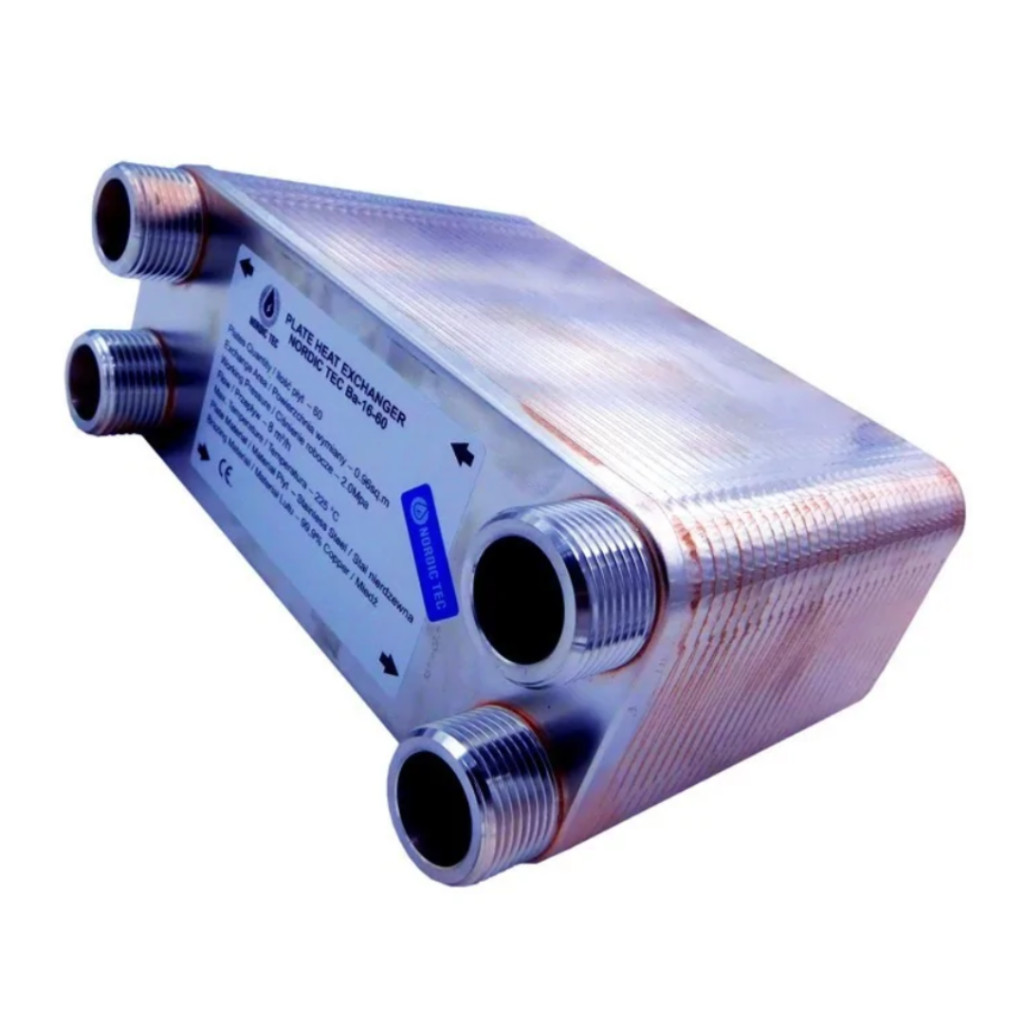

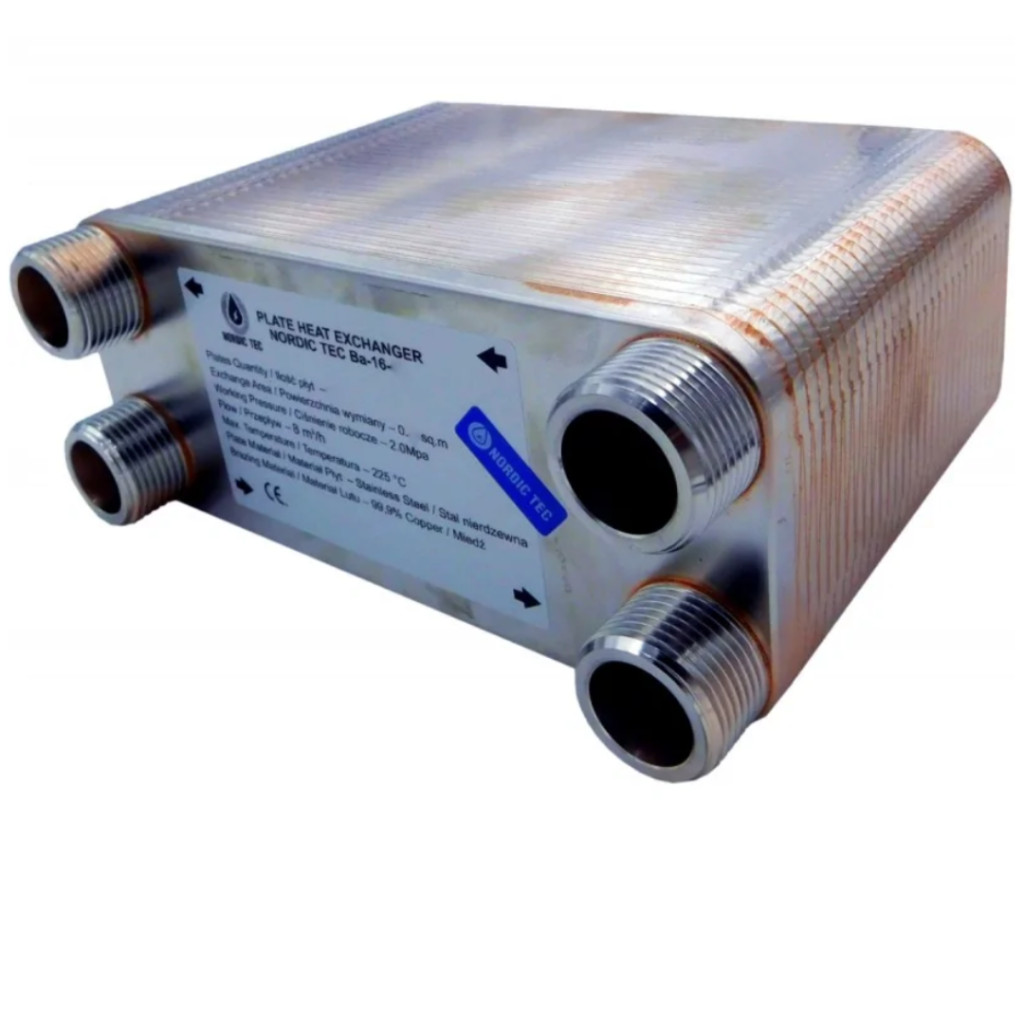

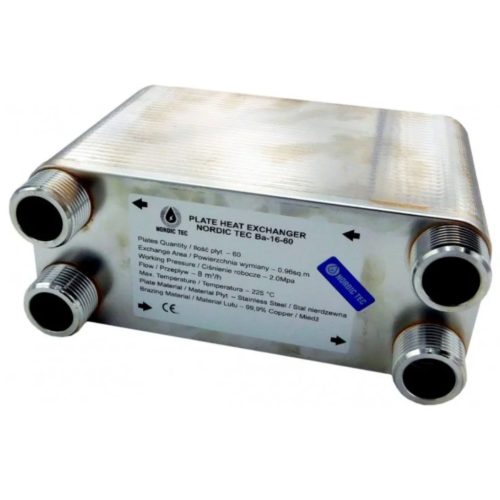

Heat exchanger

Maximum power of heat exchanger: 175kW
Nominal power: 32-55kW
Number of discs: 50
Connection: 4x1" external thread
Nominal flow: 8 m³/h
Heat exchange surface: 0.800 m²
Operating pressure: 20 bar
Test pressure: 45 bar
Min. temperature: -190°C
Max. temperature: +225°C
Weight: 3200 g
Plate material: stainless steel 316
Plate thickness: 0.4 mm
Solder material: 99.9% Cu

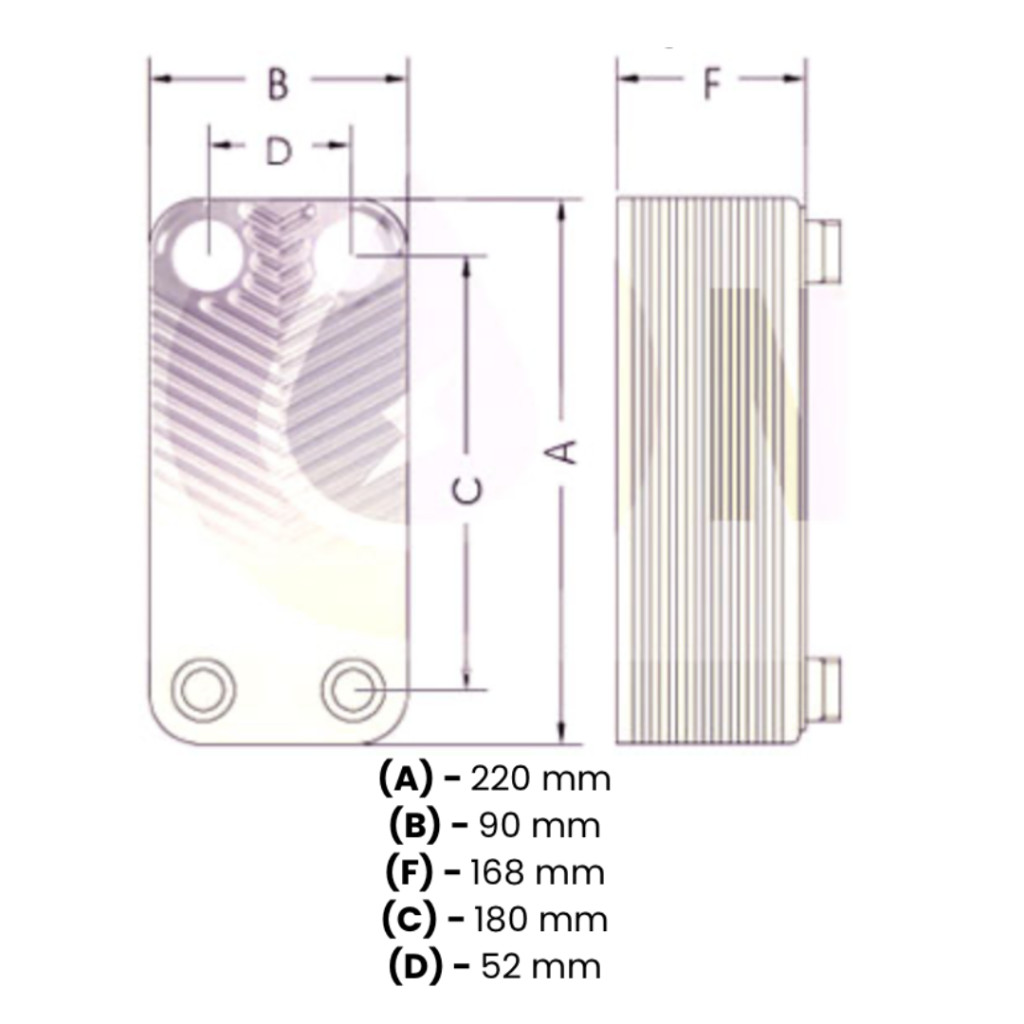

DIMENSIONS:
Length (A): 220 mm
Width (B): 90 mm
Depth (F): 120 mm
Distance (C): 180 mm
Distance ( D): 52mm

Operation tips:
⋅ It is recommended to install the heat exchanger vertically
⋅The sides must be connected in countercurrent
⋅Periodic cleaning must be carried out on a heat exchanger

More information:

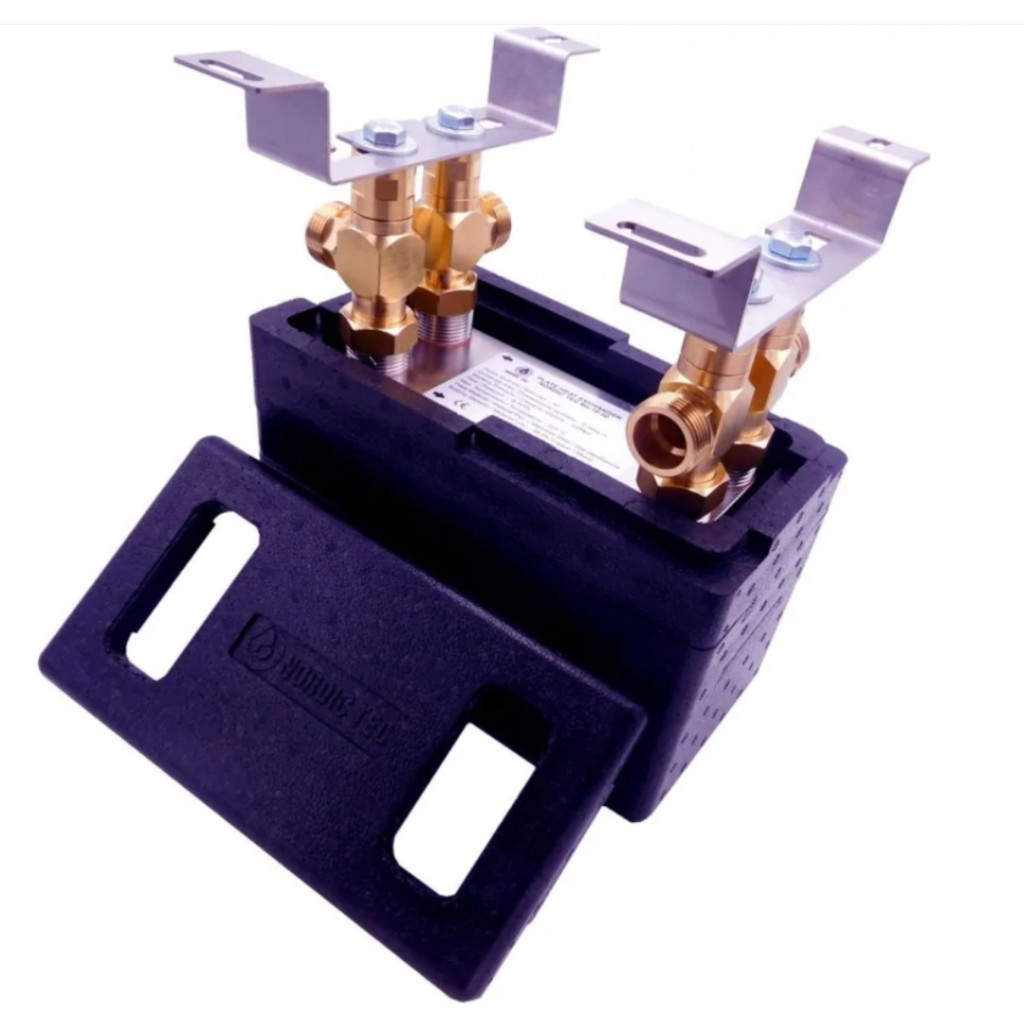

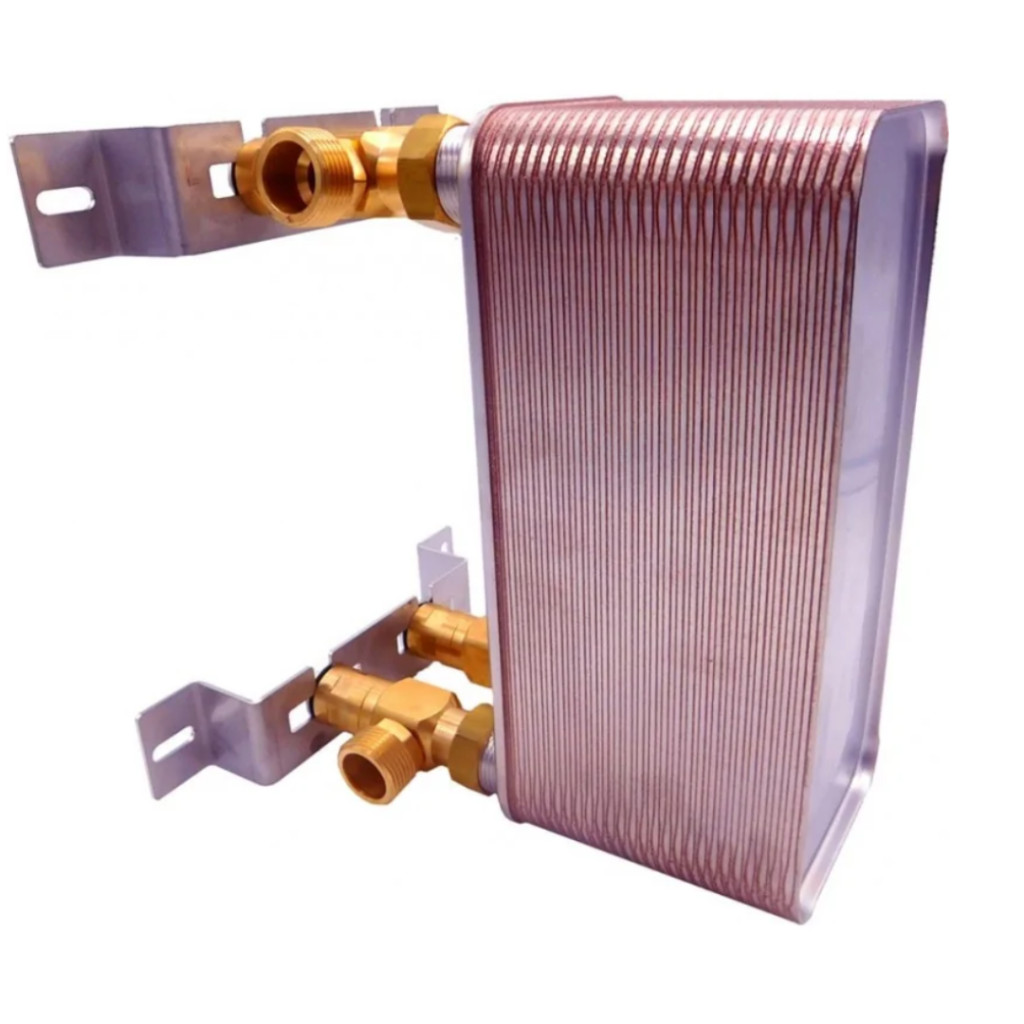

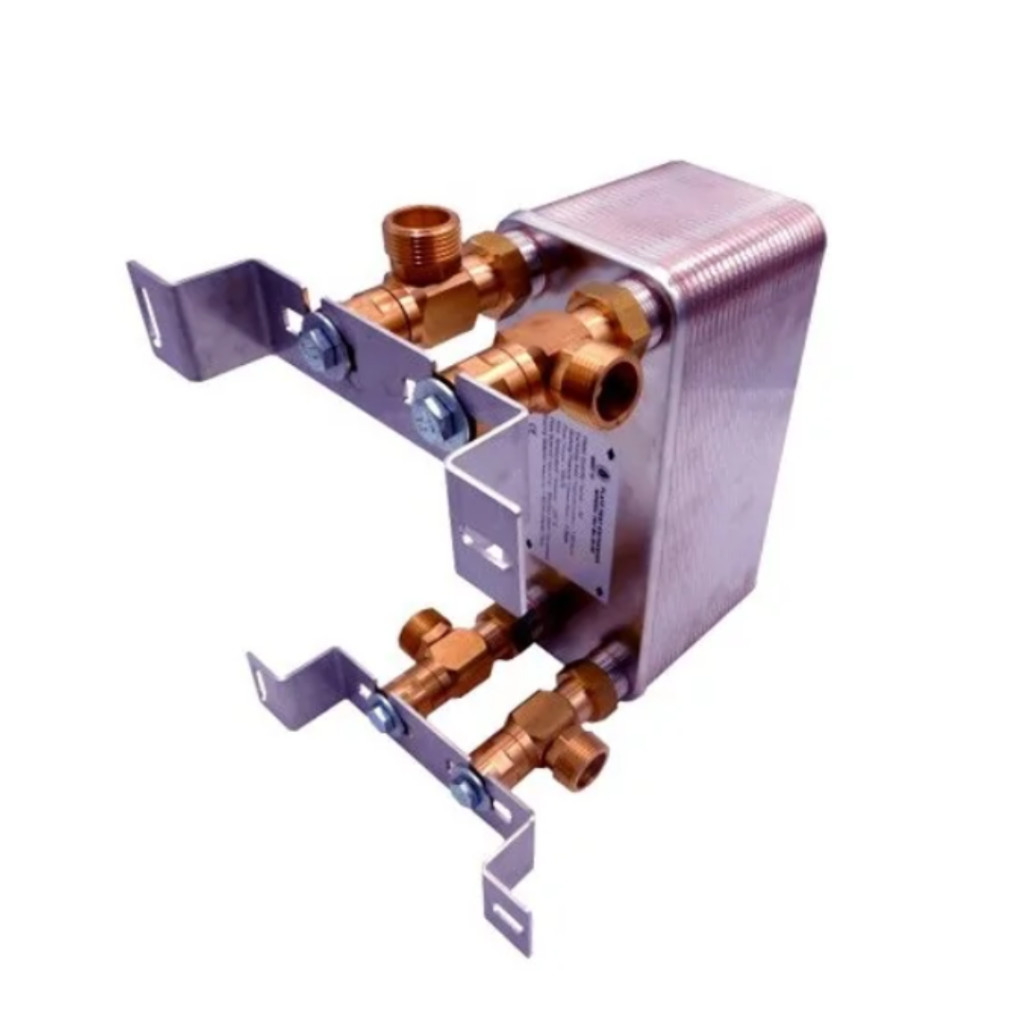

Plate heat exchanger
175kW heat exchanger
50 plate stainless design

The Ba-16-50 heat exchanger works comfortably with devices up to about 30 kW in modern or modernized hydraulic systems, new constructions or well-insulated facilities. In the case of older facilities, the maximum recommended power of the gas boiler is lower, approximately 25-28 kW.

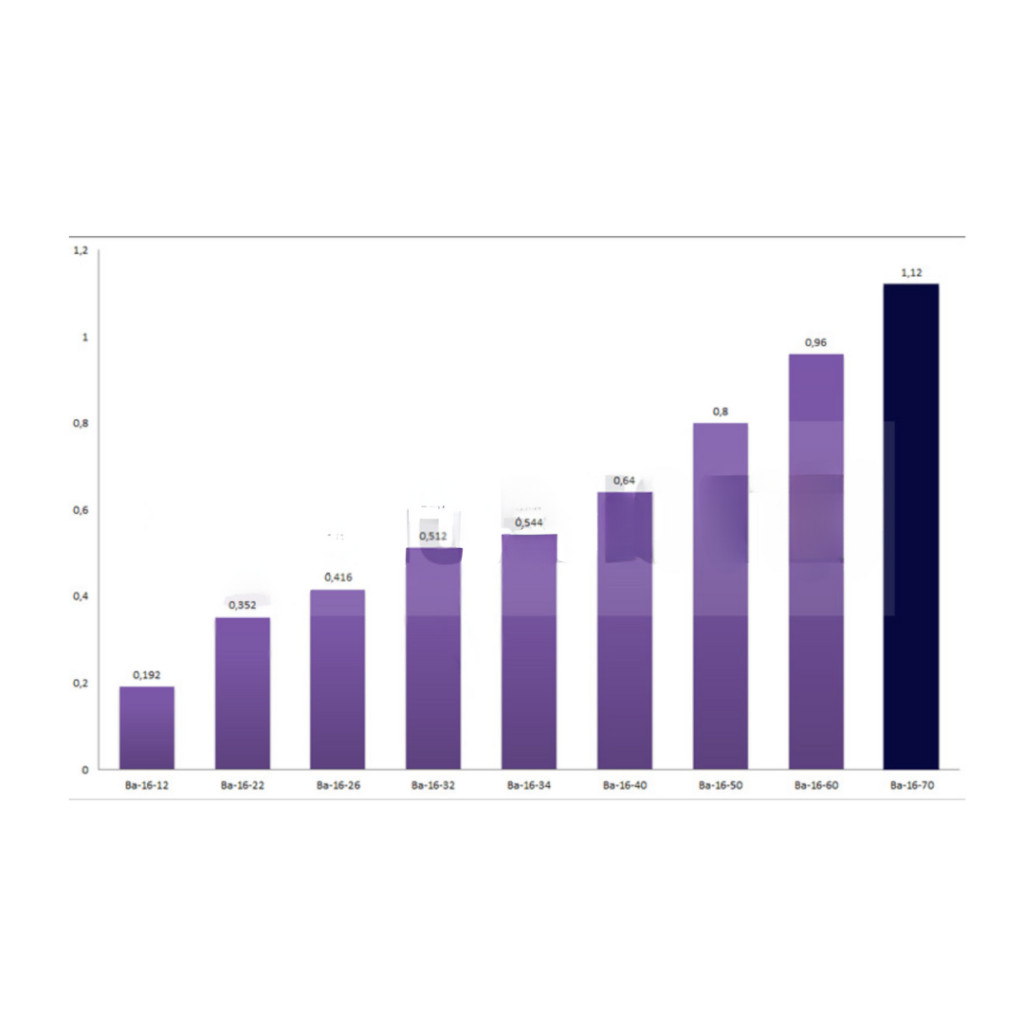

The Ba-16-50 model with a surface area of 0.80 m² in practice it cannot work with heat pumps larger than 5-6 kW. This size is not intended for heat pumps, its primary field of use is the connection of closed and open circuit processes in cooperation with boilers operating with gas, pellet, solid fuel, biomass or coal.

Plate heat exchanger 50 plates 175kW with 1" external connection
