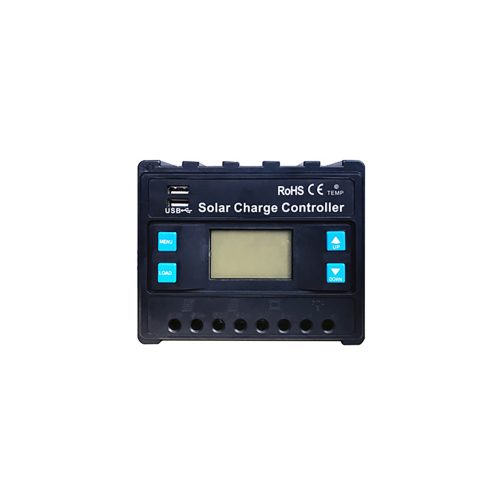

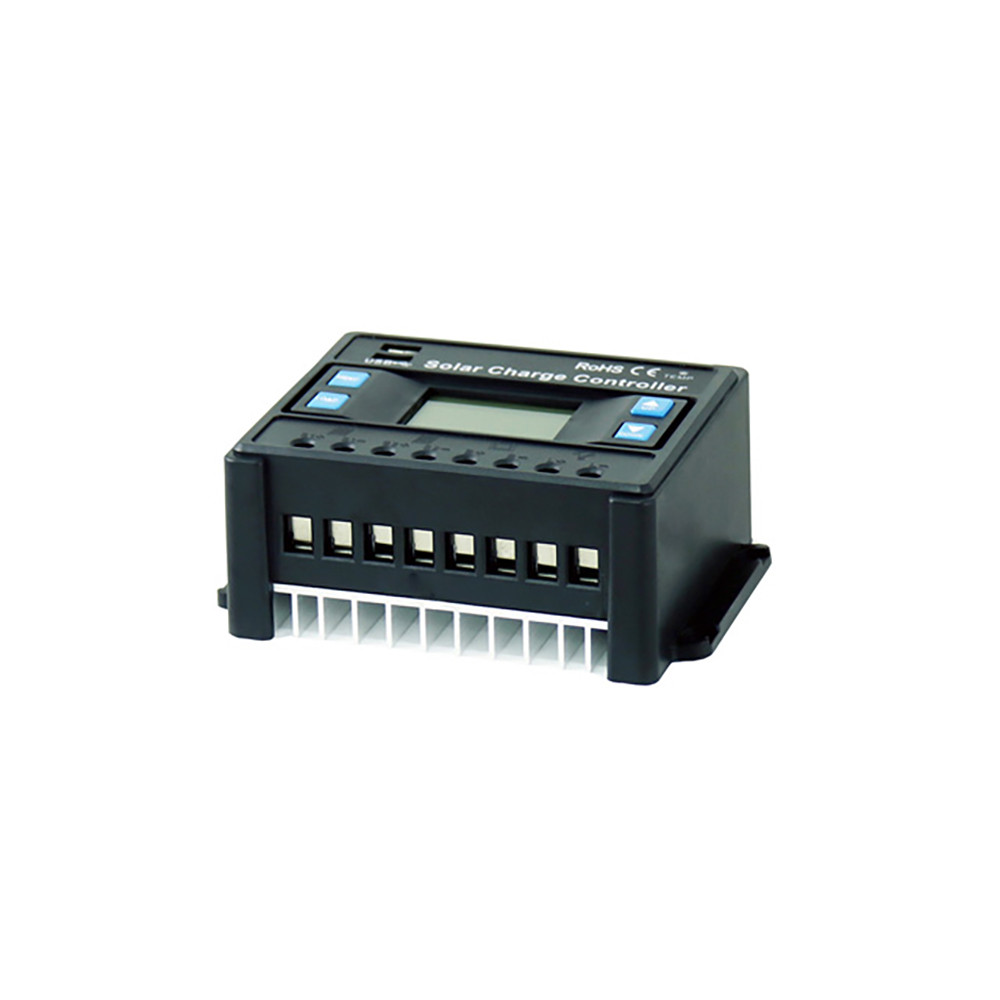

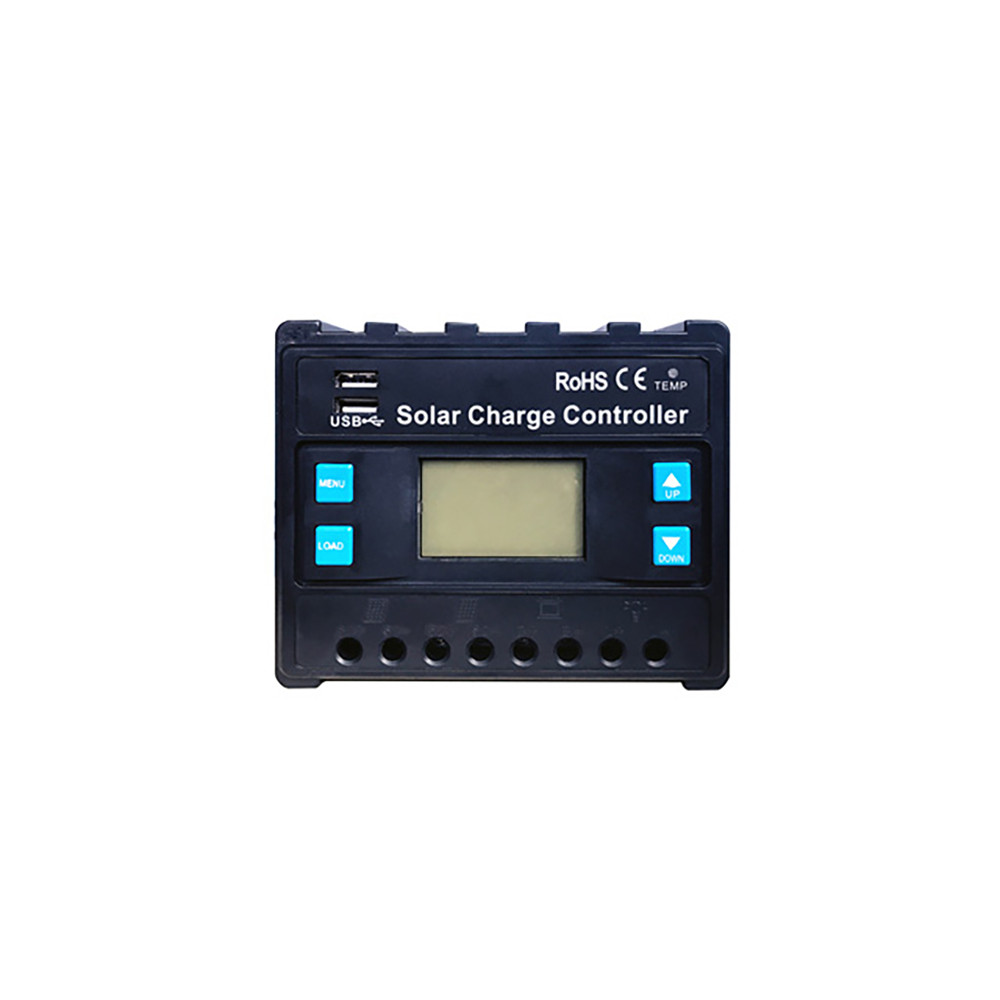

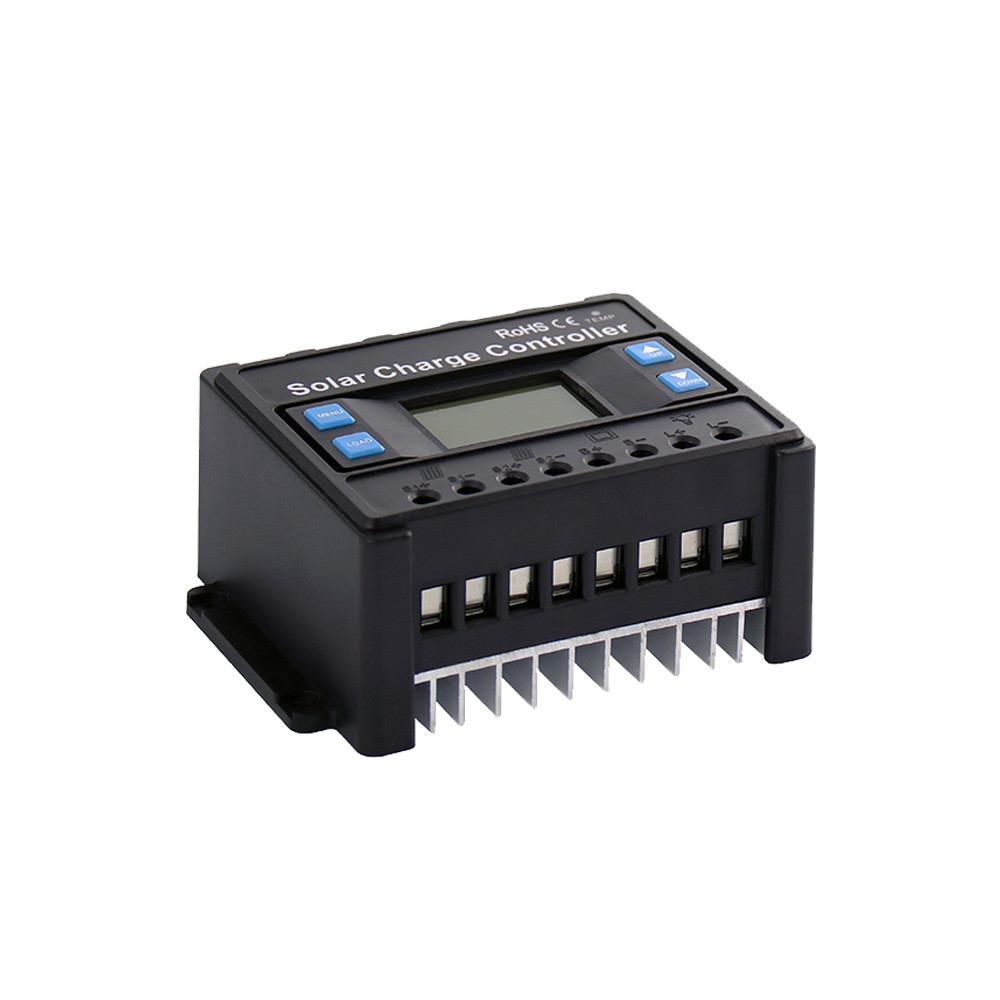

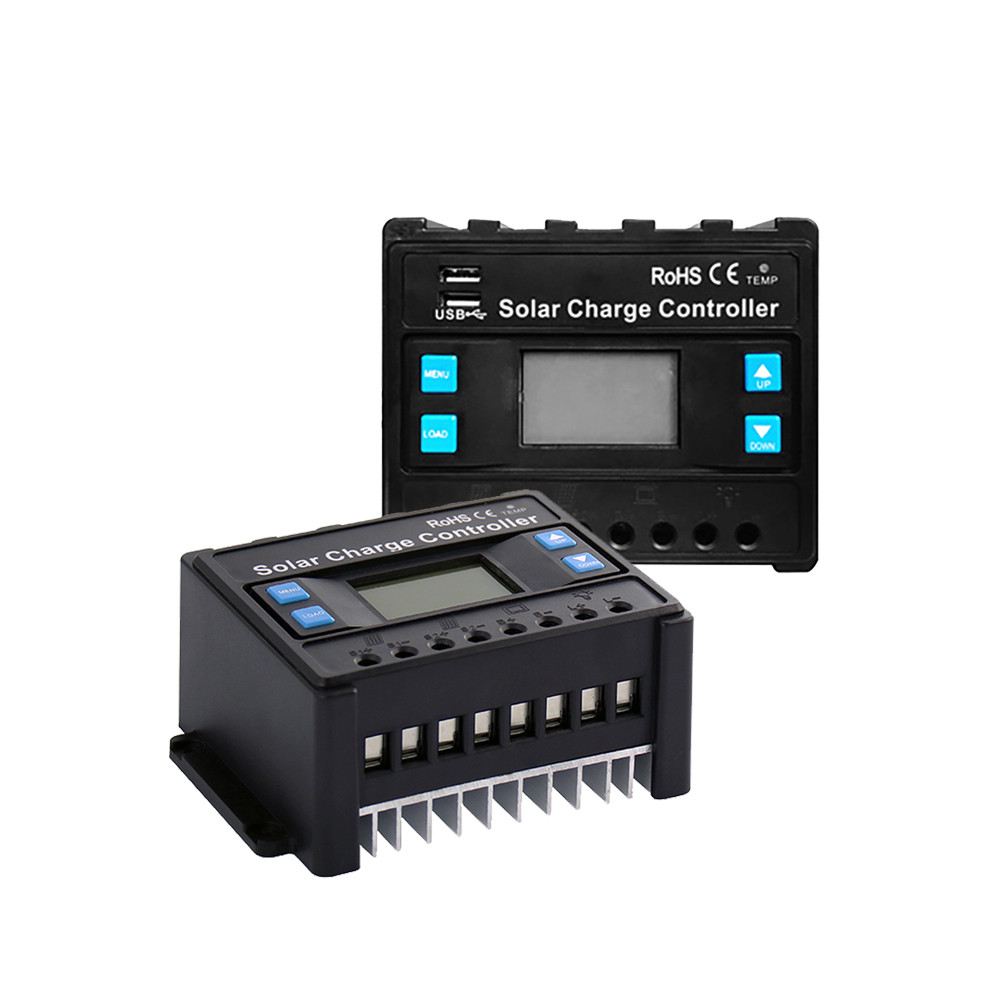

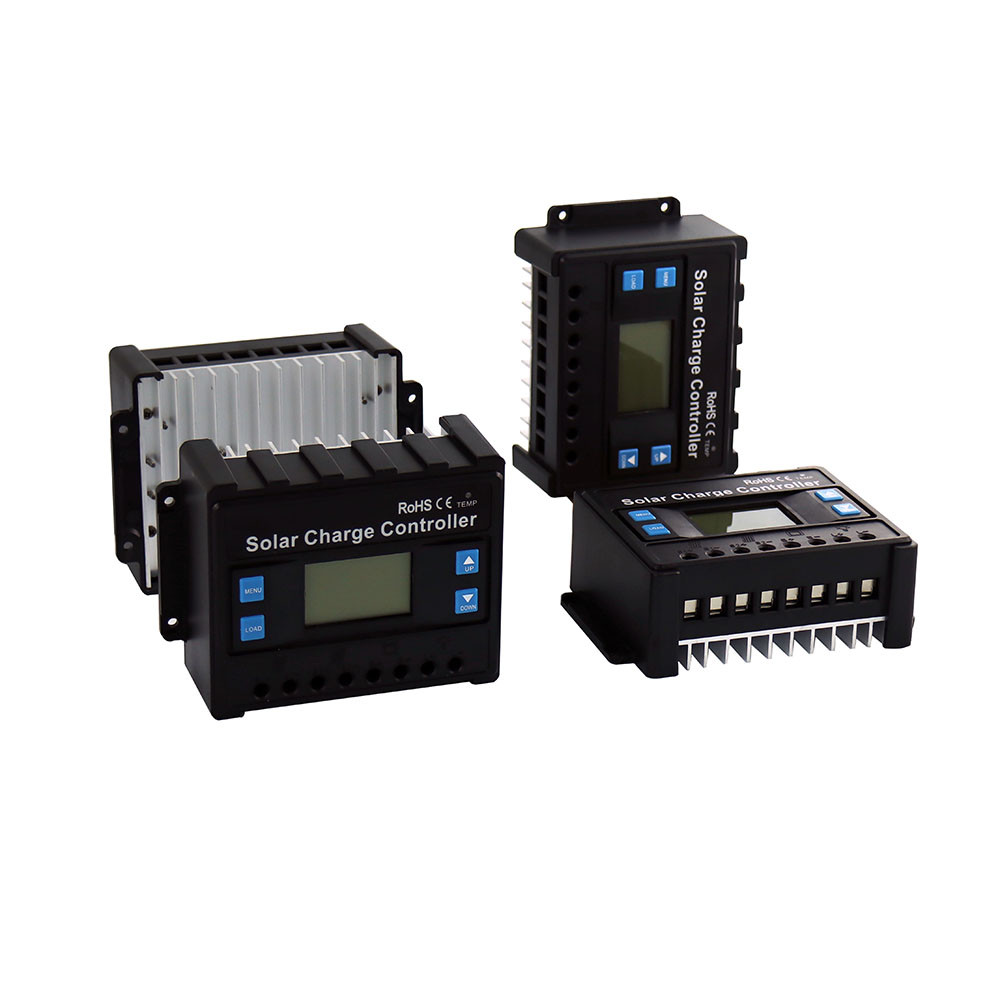

Solar charge controller

Weight: 0.55 kg
Dimensions: 172x126.3x73 mm
Solar input: 2
Battery voltage: 12V or 24V automatic recognition
USB outputs: 2
Charging current: 60 A
Max. operating current: 60A (also on low-load output)
Max. Photovoltaic charging power: 900W at 12V / 1800W at 24V
The nominal voltage of the solar module is up to 20V for 12V systems, up to 40V for 24V- os systems.
Up to Suitable for 16 mm² cable cross-section.

More information:

Charge controller

All voltages and charging processes can be displayed on the display. You can set the end voltage of the charge via the control panel, so the solar charge controller can be used on any battery.

Battery overcharging is prevented by the charging controller stopping the charging process when the set final charging voltage is reached.

Properties:

for lead, gel and AGM batteries (batteries)
Display with LCD graphic display
Automatic Voltage Level Identification System
Smart PWM charging mode
Automatic temperature compensation
Protection against battery discharge with solar connection
Low-load output shutdown under voltage
Protection against battery reverse polarity
Overload and short circuit protection
