Solderable solar cell connection TAB tape 0.15 x 1.6 mm, in 30 m long rolls

• Details
• Info

Details

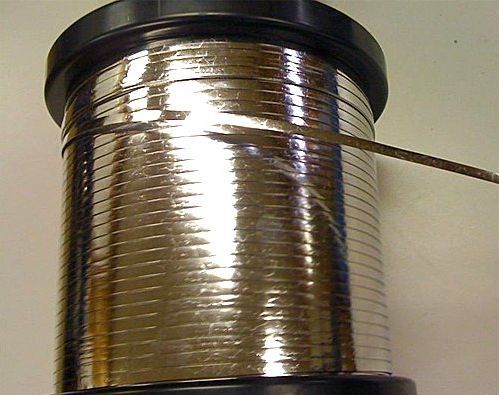

Solderable solar panel connection tape

Material: pure copper ( Quality: E-CU58 )
Size: 0, 15 x 1.6 mm (thickness x width)
Both sides coated with zinc (quality: L-Sn62Pb36Ag2 )

More information:

Solderable solar panel connecting tape, can be purchased by 30 meters

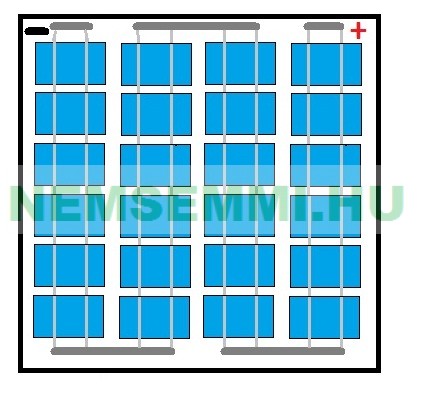

Required quantity: 10 meters of tape to connect 8 solar cells (156 x 156 mm, 2 sines).
It can be soldered well thanks to the silver content

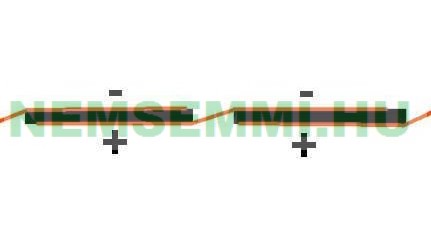

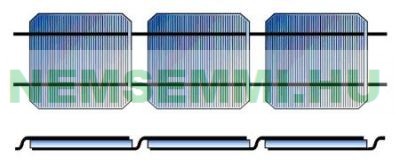

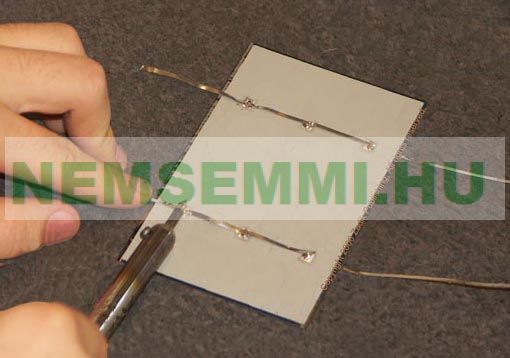

Solar cells must be joined to solder.

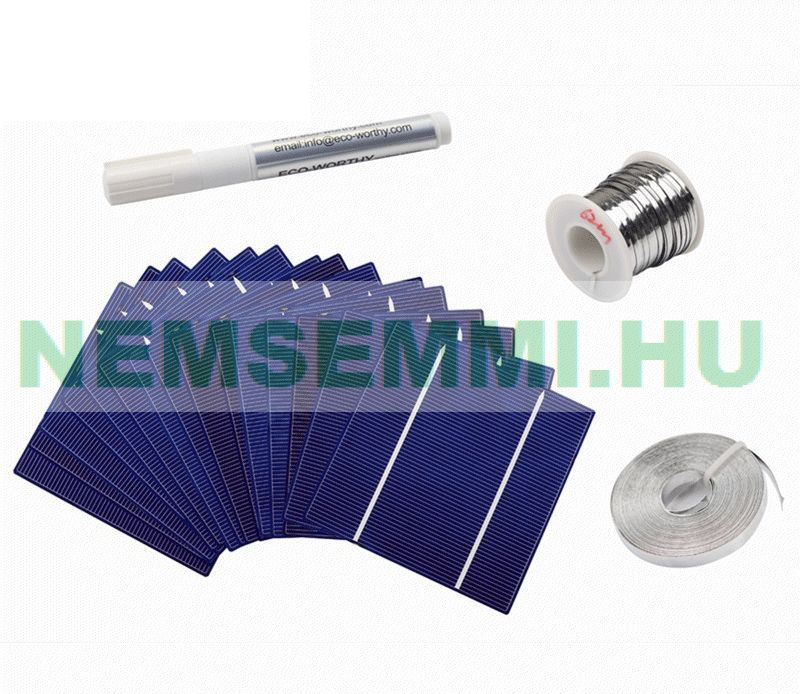

Materials needed for this:
- solderable TAB tape , this is a thin copper strip coated with tin
- a special felt-tip pen containing soldering water
- cin

Info

Vonalkód:

00111874

MPN-kód:

NS002489

Weight:

300 g/pcs
