SR882 solar collector control

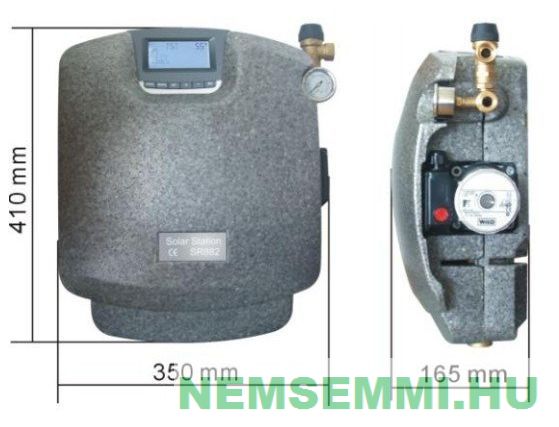

Size: 410 x 350 x 165 mm
Pump: Wilo 15-6 + another max. can be controlled. 200W pump!
Connecting cable: 1.5 meters
Connectors: 3/4"
Pressure gauge: 1-6 bar
Safety valve: 6 bar
Thermometer: 0-120 °C
Max. operating temperature 120'C
Flow meter
2 flow regulators (both electronic and manual)shutoff tap with check valve,filler tapexpansion tank connection point.

More information:

2-circuit solar collector control

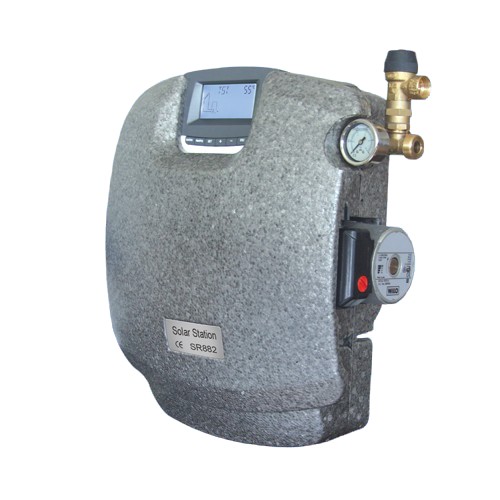

Solar station with WILO pump and built-in control

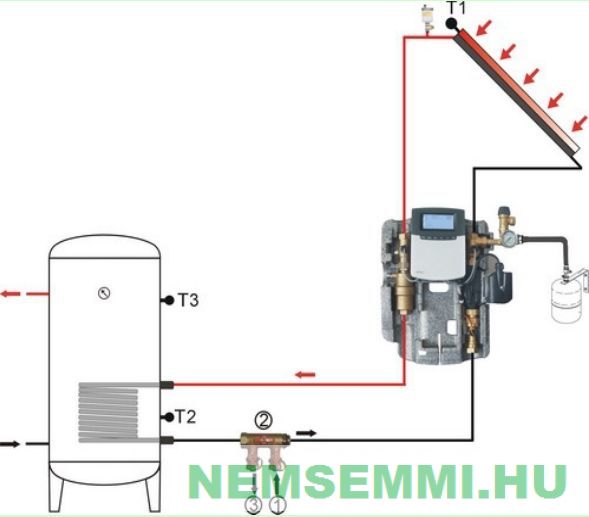

1 with bubble separator, 2 tanks and 1 collector with heat probe
The entire station is covered with polystyrene insulation.

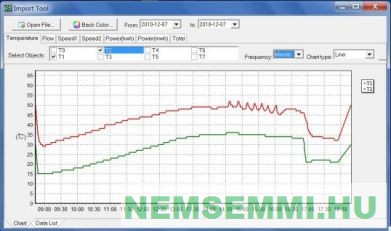

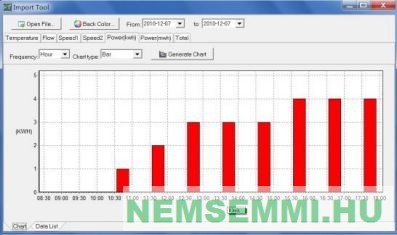

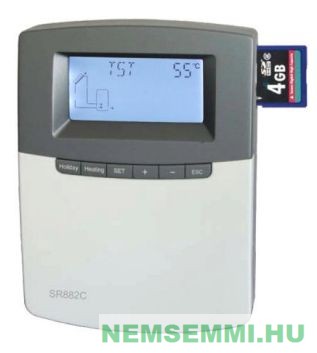

SD card data backup, heat quantity calculation

Time display (hour and week)
Freeze protection
Water temperature display (tank, collector)
Memory function in case of power failure
ΔT controlled circulation
Display in case of sensor error
< span style="color: #000000;">Time-controlled hot water circulation
Flow volume display
Time controlled heating
System pressure display (separate instrument)
Interval temperature controlled heating support
Max. collector temperature (collector cooling)
Max. tank temperature (tank cooling)
"Free" function

Inputs and outputs
1 collector temperature sensor
5 other heat sensors max 135 'C
1 second pump
1 heating cartridge, max 1500W

Solar collector control SR882 2-circuit solar pump station controller SD card data recording and Wilo circulation unit + extra bubble separator
