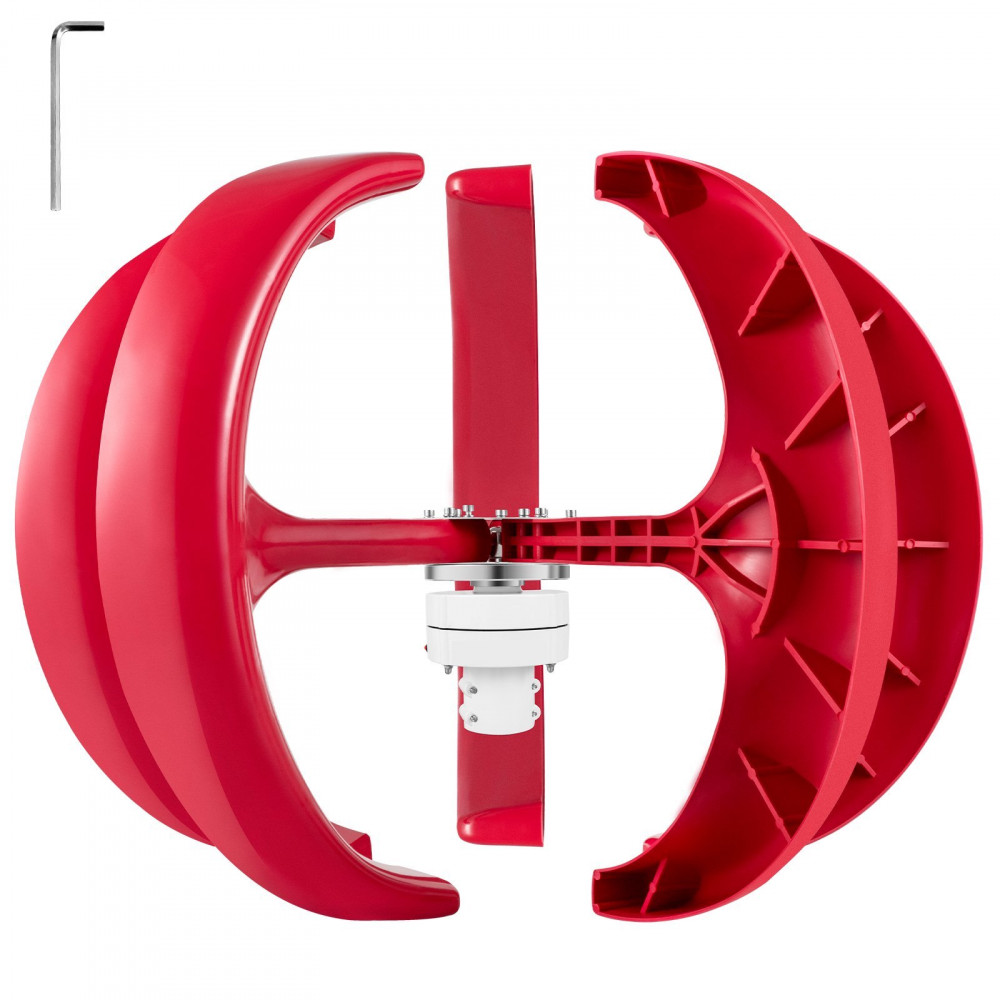

Vertical Axis Wind Turbine 100W 12V Wind Generator with 5 Bl

Wind turbine

Rated power: 100W
Maximum power: 130W
Rated voltage: 12V
Rated current: 5.88A
Rotor diameter: 90 cm
Weight: 13 .5 kg
Number of blades: 5
Starting wind speed: 2 m/s
Nominal wind speed: 11 m/s
Max. wind speed: 45 m/s
Rated speed: 1100r/min
Operating temperature: 40 ℃ ~ 80 ℃
Package size: 61x44x30cm
Generator: 3-phase AC permanent magnet
Control system: electromagnetic< br />Control mode: automatic adjustment
Controller type: built-in

More information:

Wind generator

This is a 5-blade, 100W wind turbine, safe, stable and quiet. The vertical axis wind turbine collects airflow better and has high wind energy utilization.
This wind generator set includes a high-quality aluminum alloy frame and fiber-reinforced blade, low it has starting speed, high wind energy utilization and low vibration. The turbine uses a three-phase magnetic motor, built-in controller, which ensures high energy efficiency and easy installation. In addition, you can check the working status of the turbine through the indicator light, perfect for fishing boat, RV, monitoring system and other charging uses. its blade design looks like a lamp. In addition, this wind turbine has low operating vibration, good performance and increasing annual energy production, ensuring long-term use.
Our vertical axis wind turbine adopts three-phase synchronous motor with large with powerful NdFeB permanent magnet. A turbine power of 100W can meet basic charging requirements. You no longer need to connect complicated wires because the machine has a built-in controller.
The blade of the vertical turbine generator is fiber reinforced, which is light, corrosion resistant and strong in intensity. The temperature range is -40℃~80℃, suitable for year-round use. The vertical wind blades can be launched by the wind at a speed of 2 m/s and can automatically capture the wind direction.
This vertical wind wheel has a power indicator, the light flashes twice flashes when the generator is running at low speed, which is convenient for monitoring the generator's working condition. Meanwhile, it can also be used as a bird deterrent to drive birds away from the turbine.
The small wind turbine generator can generate energy to meet different charging needs. At the same time, it can be conveniently installed and maintained, and is perfectly suitable for home use, for meeting the charging needs of motorhomes, boats, pavilions, wooden houses.
Main features:
