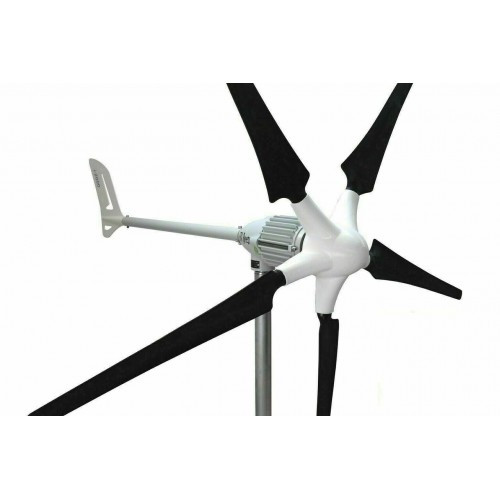

Wind generator with carbon blades

Rated power: 1000W
Voltage: 24V
Current: 17A
Number of blades: 5
Rotor diameter: 220 cm
Rotor material: Polyamide with 30% glass fiber!
Length of rotor blades: 107 cm
Maximum noise load: only 40 dB
Weight: 20 kg

In connection with the wind wheel, please note that the wind wheel may only be operated with a charge controller that
in which the speed-dependent engine brake is built-in, which provides the
wind wheel against over-revving from the continuously connected battery braking through the generator, which in this case functions as a magnetic brake.

More information:

Wind wheel 24V 1000W with carbon blades

The wind wheel can be used universally in low, medium and strong winds.
3-phase magnets - high efficiency thanks to strong permanent magnets (NdFeB magnets, temperature resistant to 150 °)
Aerodynamic design
Powder coated aluminum housing
Low noise
UV-resistant plastic +30% glass fiber blades
Power transmission via slip ring, thus cable is not possible twisting
Durable and low maintenance

Wind wheel wind turbine 5 carbon blades 1000W AC 24V Breeze I-1000 wind energy 220 cm rotor diameter 2 year warranty!

Wind generator with carbon blades

Wind wheel 24V 1000W with carbon blades
