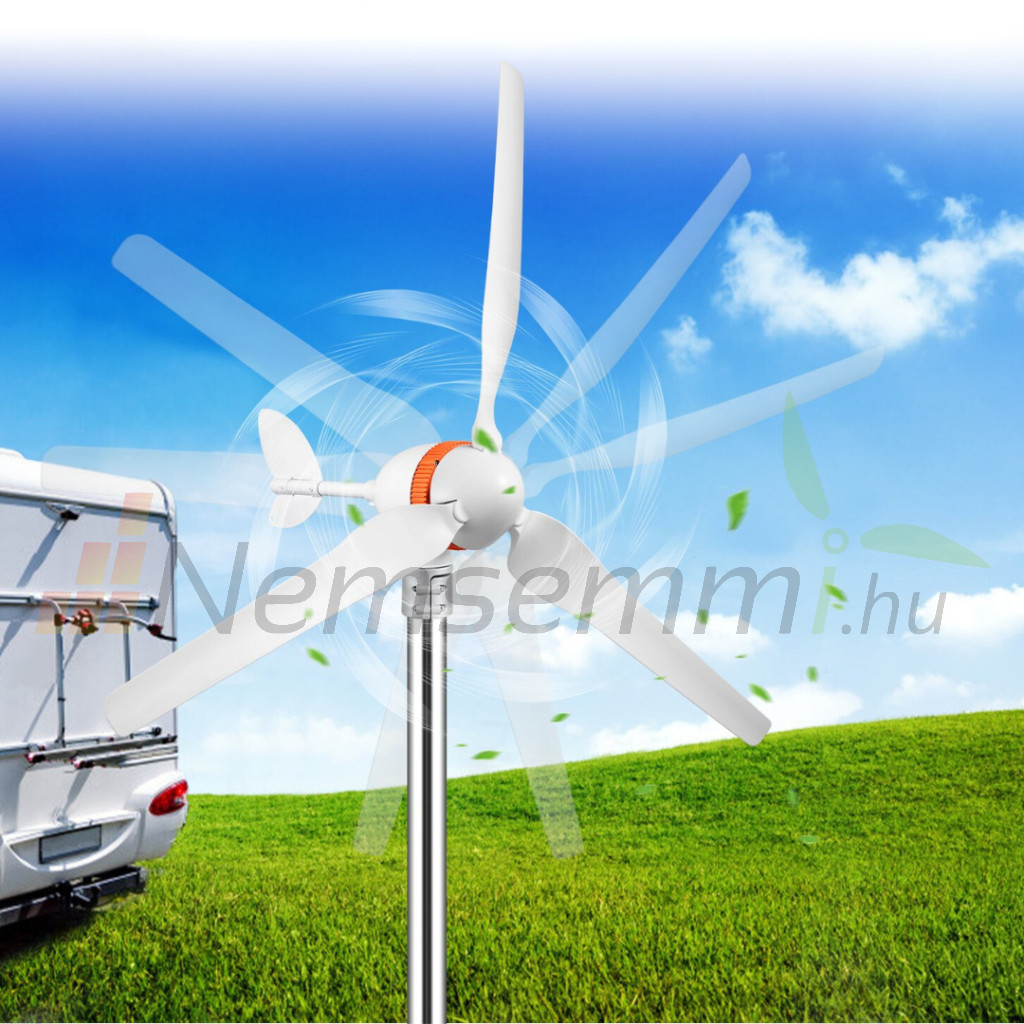

Wind generator 400W 12V, with MPPT controller, 3-bladed wind wheel, wind turbine to supplement household power supply

Wind generator

Nominal power: 400 W
Maximum power: 400 W< br />Rated voltage: 12 V
Rated current: 24 A

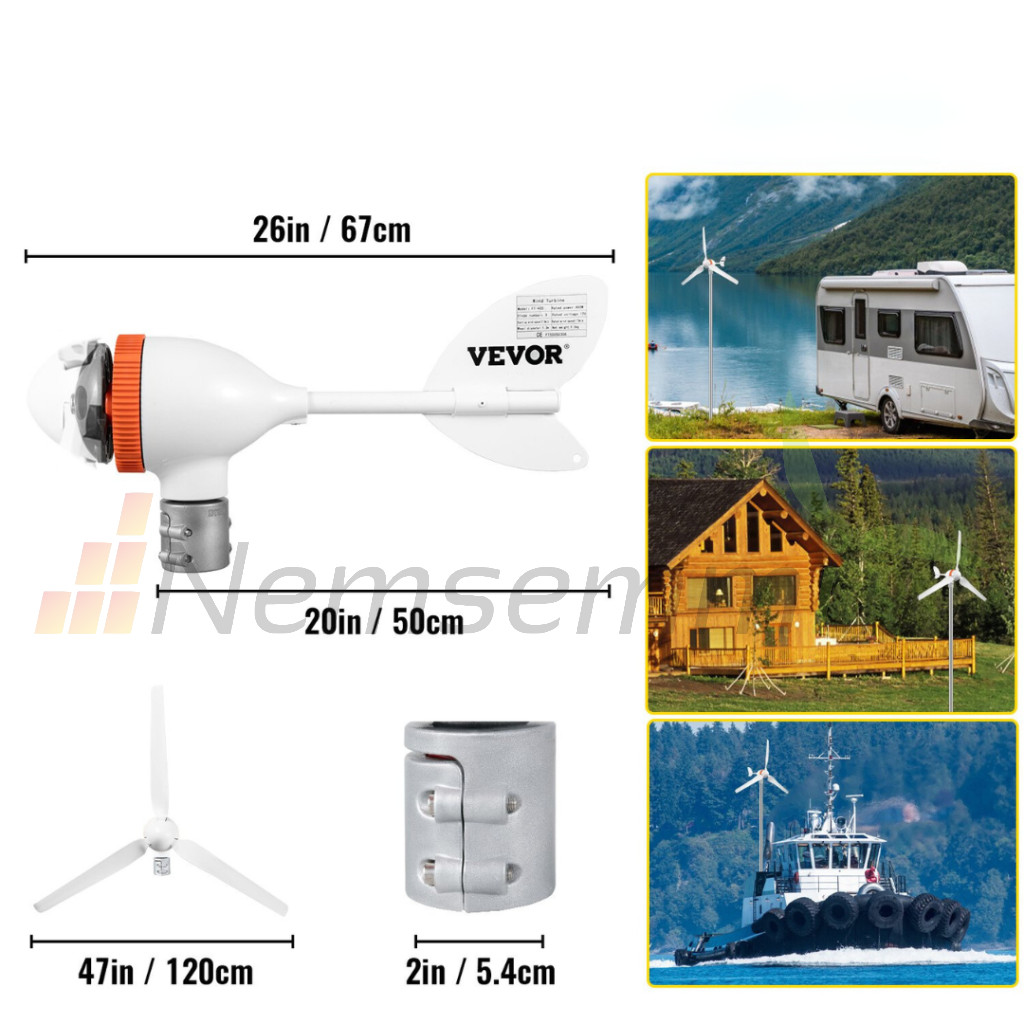

Clamp diameter: 54 mm
Rotor diameter: 1 .2 m
Net weight: 9 kg
Number of blades : 3
Blade material: nylon fiber
Starting wind speed: 2 m /s
Nominal wind speed: 13 m/s
Survival wind speed: 50 m/s
Rated speed: 900 rpm
Operating temperature: -40 °C to 80 °C
Package size: 69 x 29.5 x 19.5 cm
Generator: three-phase alternating current permanent magnet motor
Magnetic material: neodymium-iron-boron
Control system: electromagnetic / gimbal system
Regulation type: automatic adjustment
Cabinet material: aluminum casting with powder coating
Back panel material: stainless steel coating
More information:

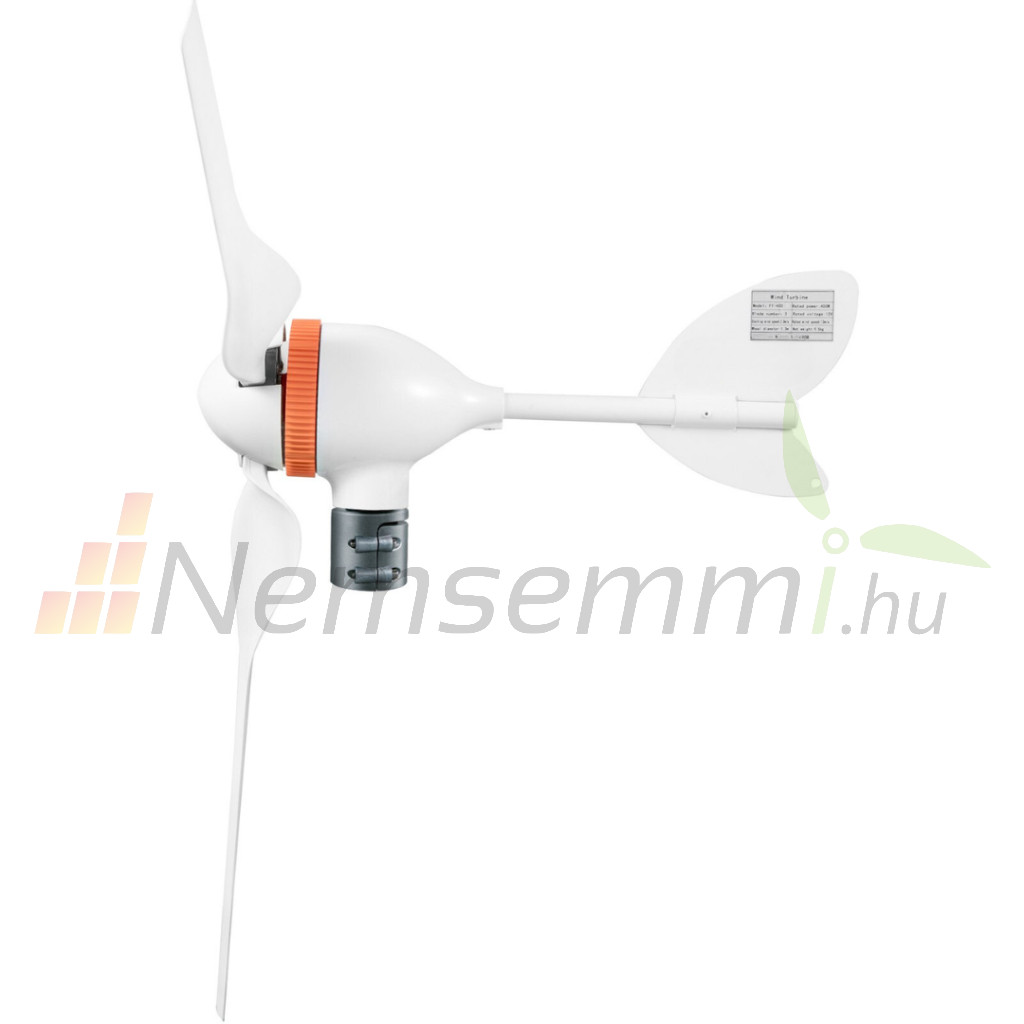

Horizontal wind wheel

This wind generator is made of high quality aluminum housing, stainless steel control board and nylon fiber blades. The three-phase magnetic motor and MPPT controller ensure outstanding energy efficiency. The low starting speed and quiet operation make it ideal for home, boat or RV use.

The generator is powered by a 400W / 12V three-phase NdFeB permanent magnet synchronous motor, which is quiet and long-lasting. Its outer housing is designed for fast heat dissipation. The MPPT controller provides effective tracking performance.

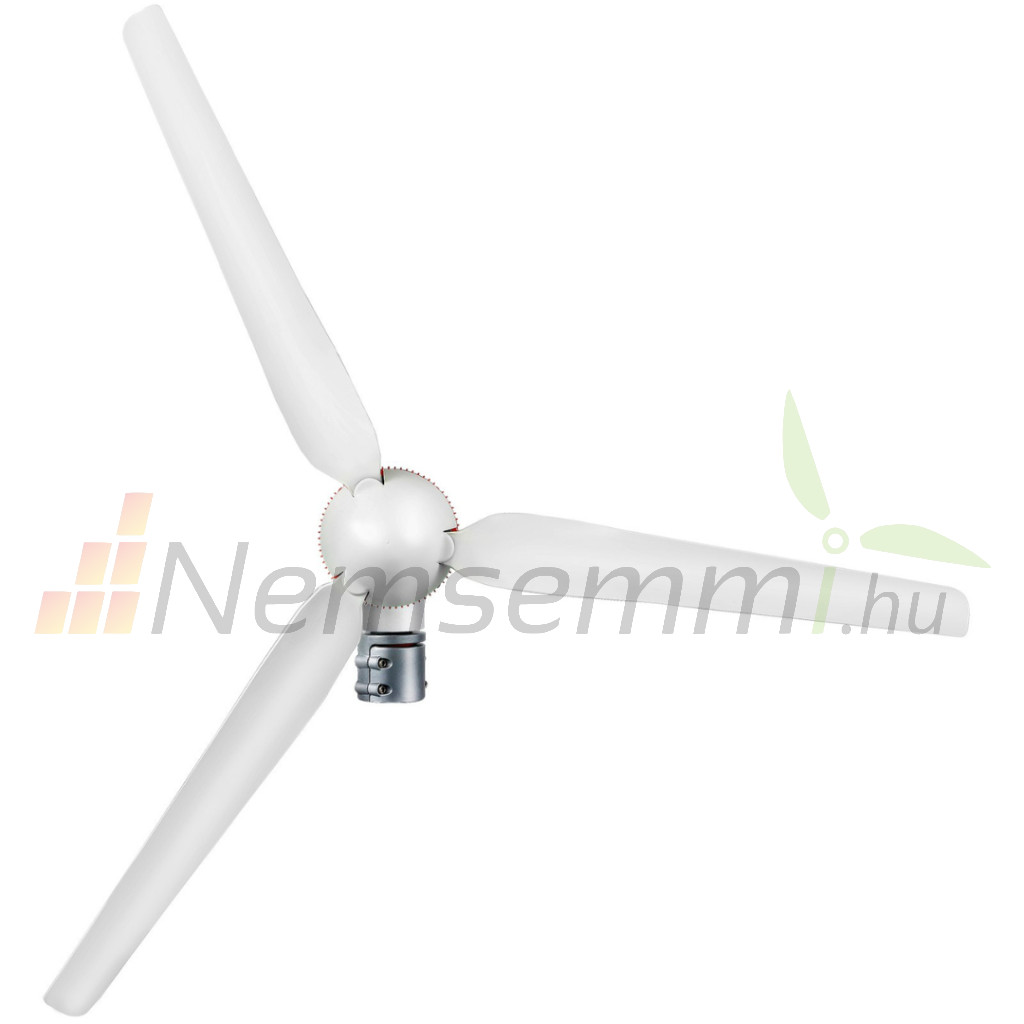

The rotor blades are made of lightweight, water- and corrosion-resistant nylon fiber. The temperature tolerance can be adjusted between -40 °C and 80 °C. The generator only needs a wind speed of 2m/s to start and it automatically adjusts the direction to get the maximum wind power.

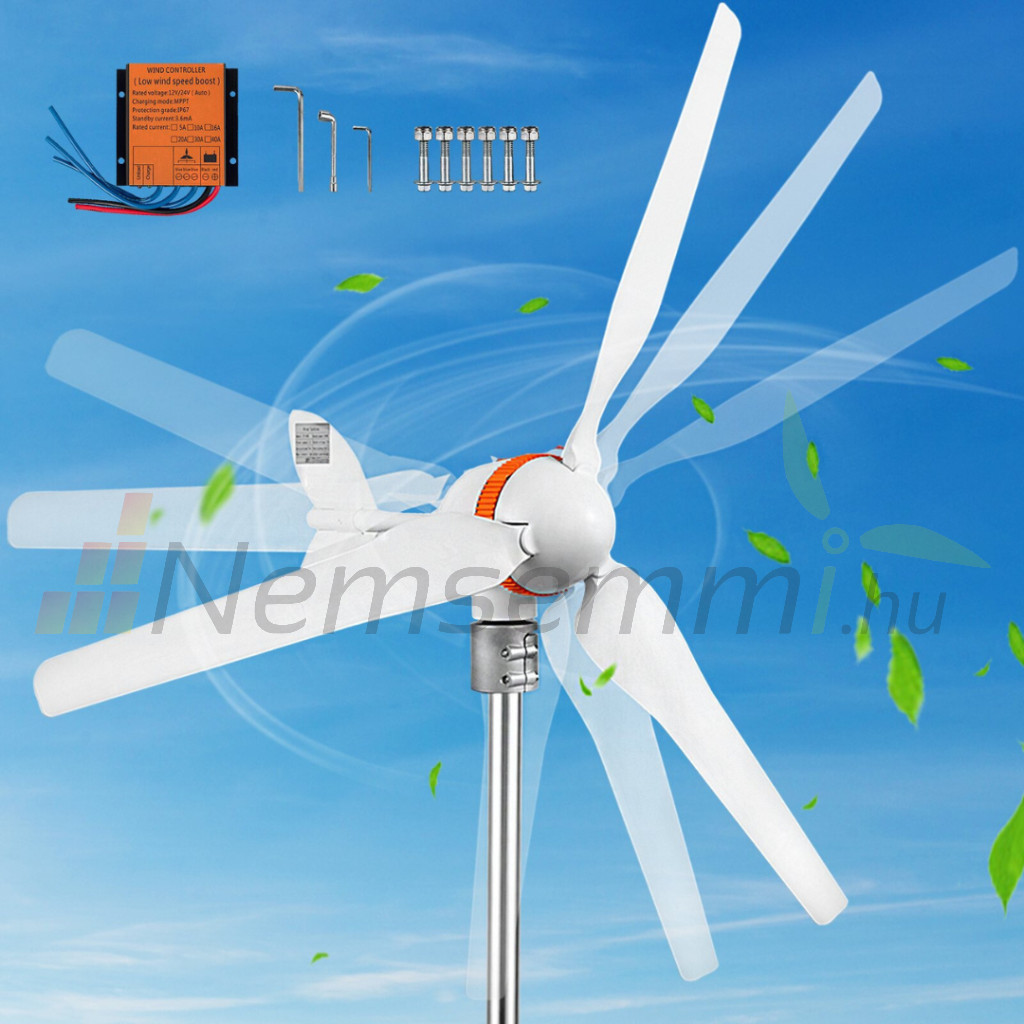

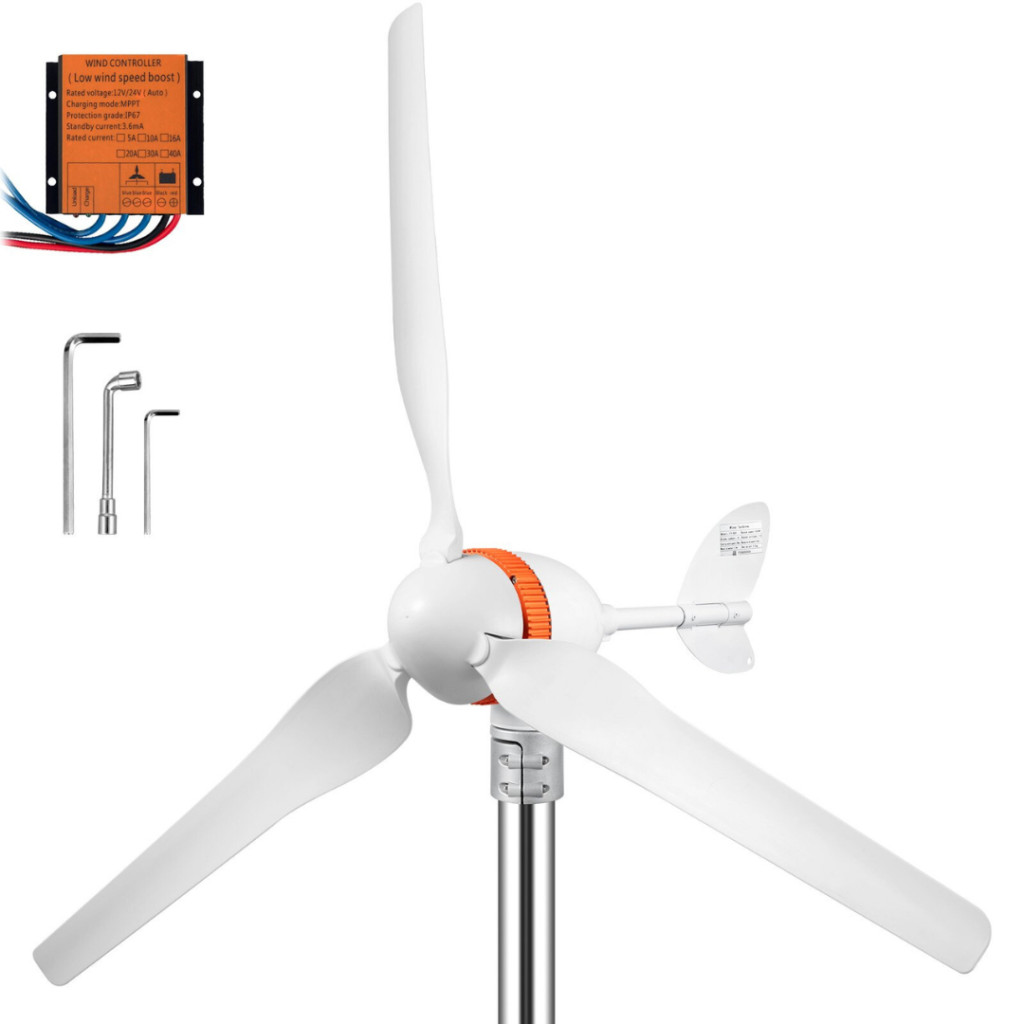

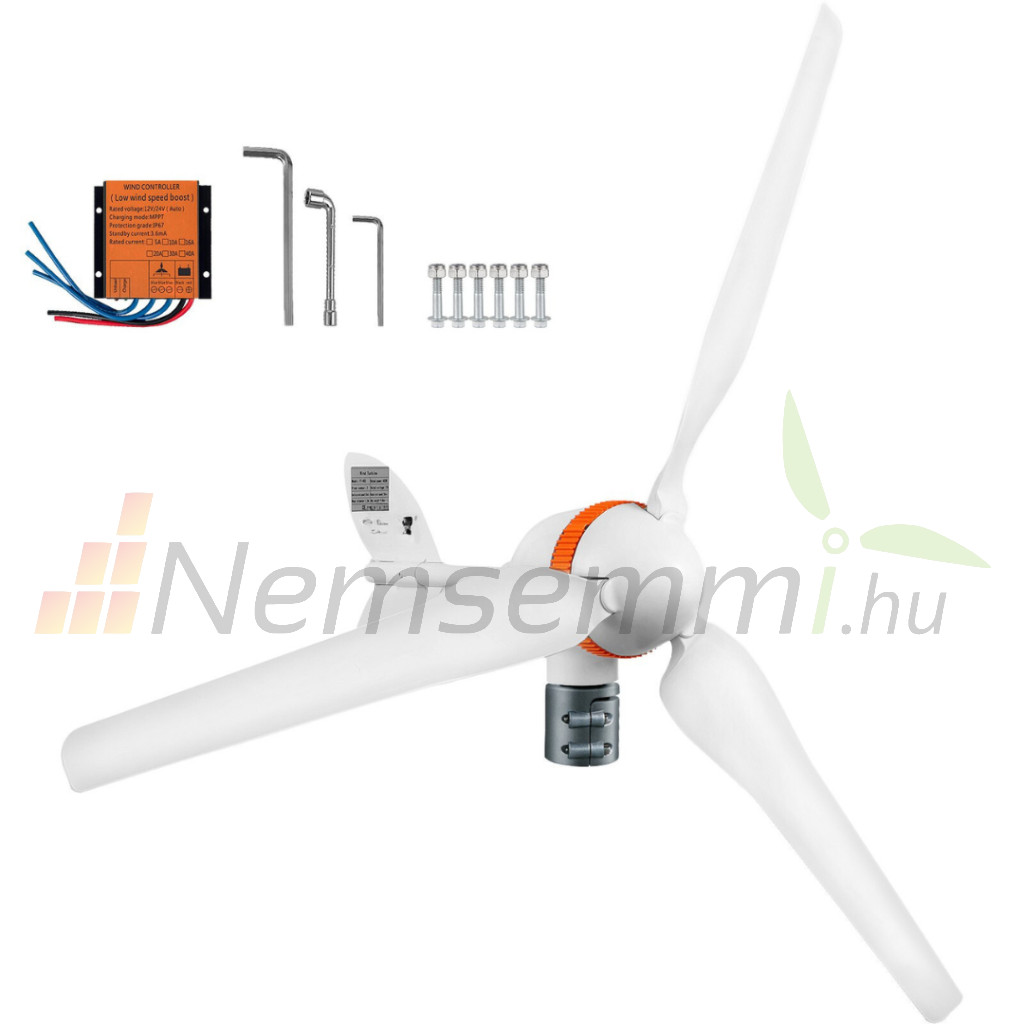

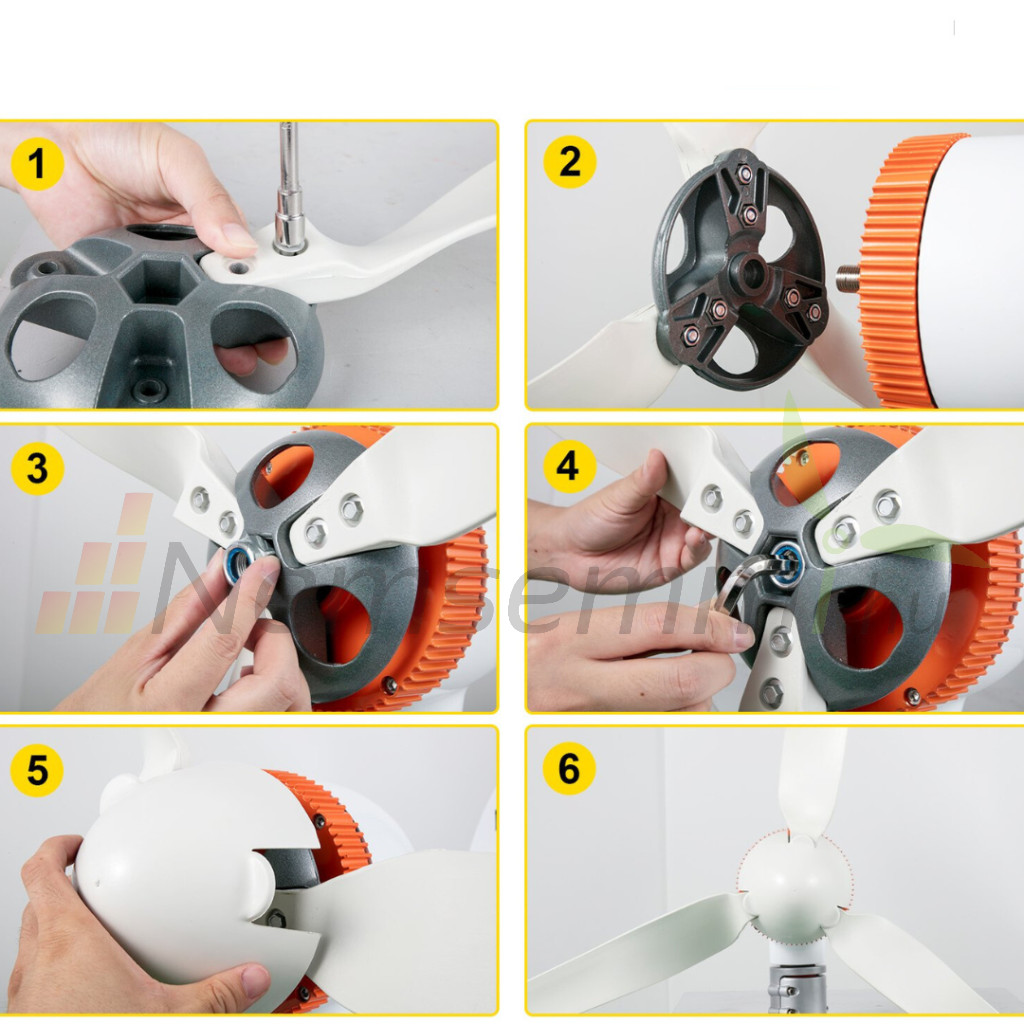

This wind generator kit is equipped with a stirrup which more convenient than flange mounting. The precise matching of the blades and fasteners makes assembly easier.

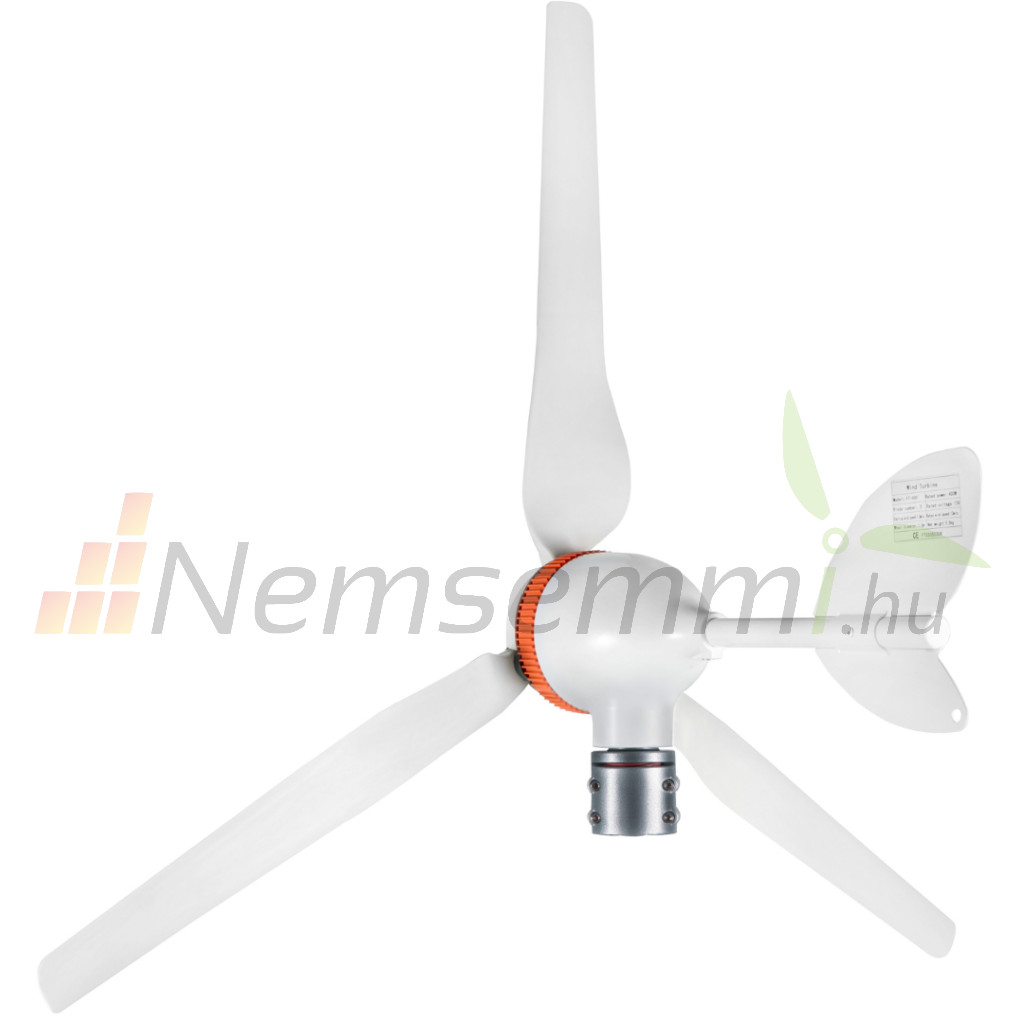

The wind generator's housing is made of aluminum casting, the rear part is stainless steel. Thanks to the uniform cast form, it is strong, corrosion-resistant and durable. The surface is provided with a powder coating, which is waterproof and resistant to external influences.
Thanks to its highly efficient wind energy utilization, the wind generator is suitable for home monitoring systems, RVs, boats , gazebos and other household applications.
