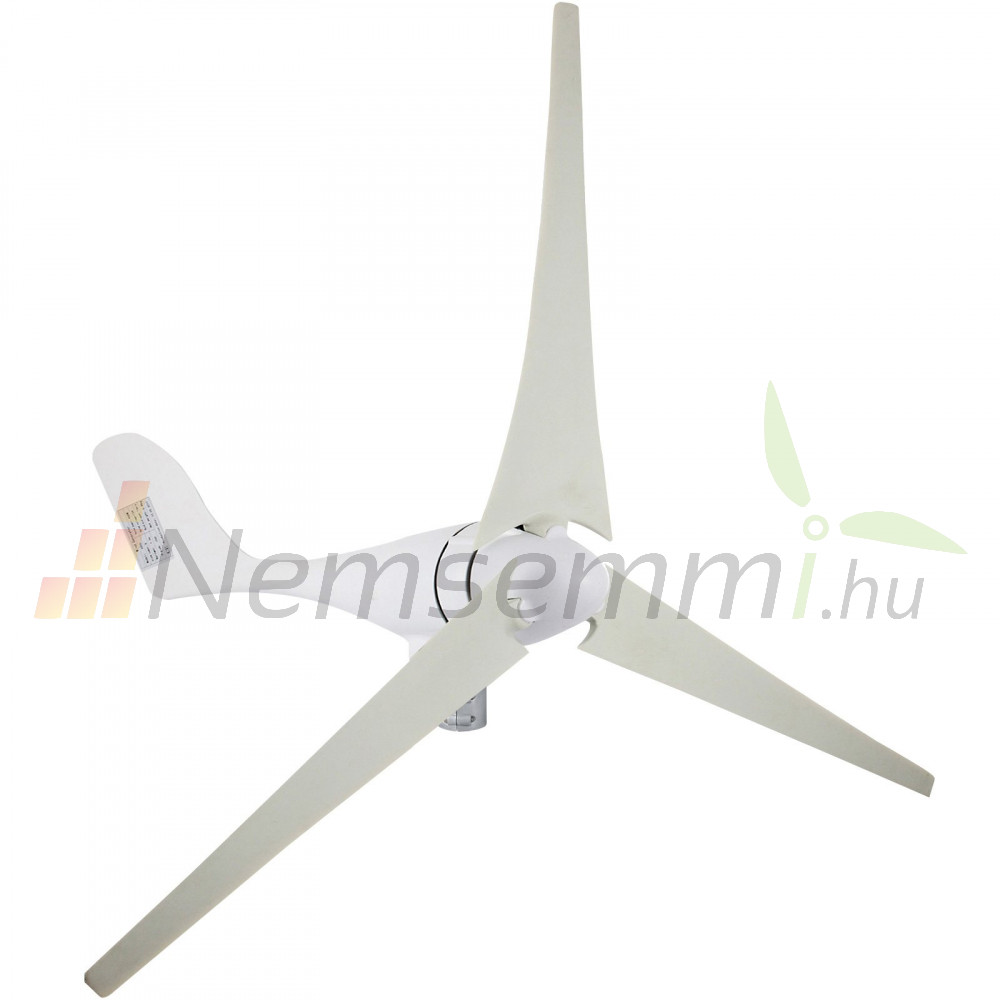

Wind generator

Rated power: 400W
Starting wind speed: 2.5 m/s
Nominal wind speed: 12 m/s
Number of blades: 3
Blade material: PBT

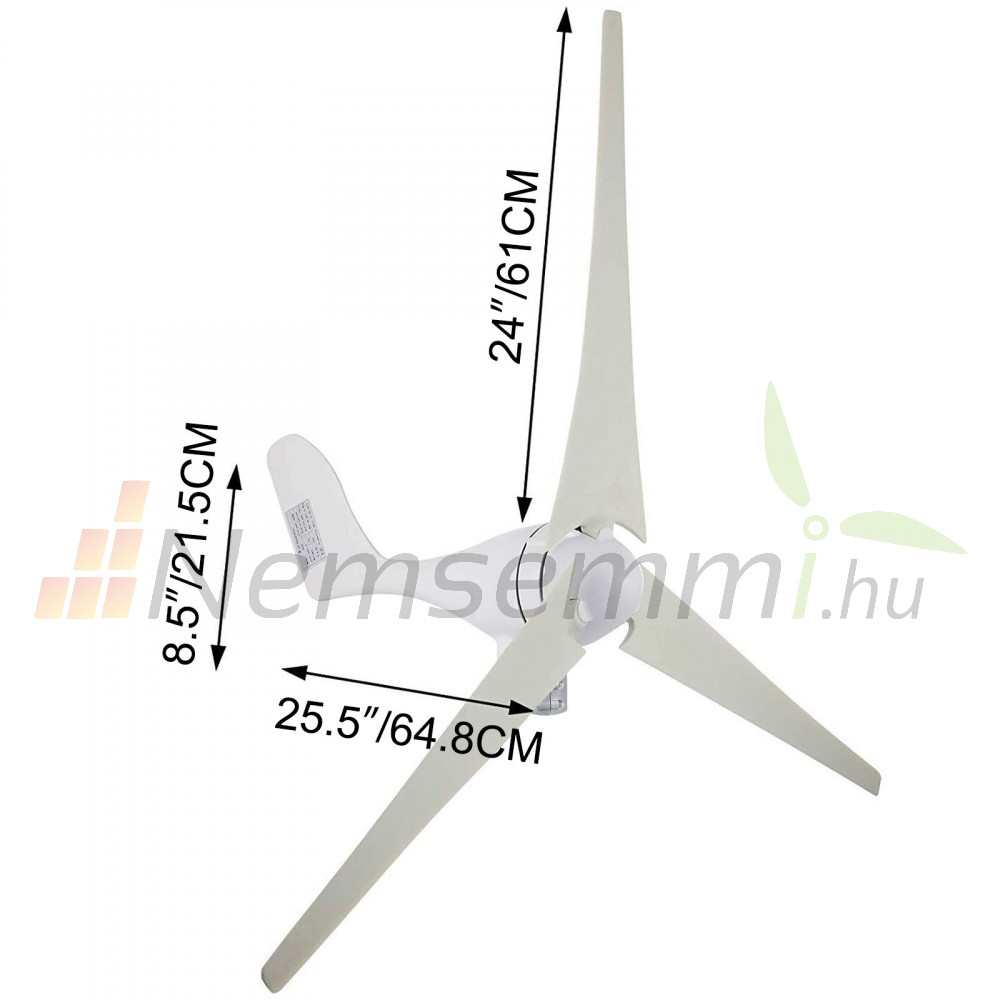

Rotor diameter: 1.2 m
Nominal speed: 800 r/min [RPM]
< span style="color: #000000;">Tower height: 4.5m-10m
Battery capacity: 200AH-400AH

Technical data of the charge controller
Nominal battery voltage: DC12V
Rated turbine power: 400W
Brake voltage: 14.5V
Turbine recovery voltage: 13.2V
Static power: 15mA
Operating temperature: -35 ~ + 75 ℃
Shatter protection: IP67

More information:

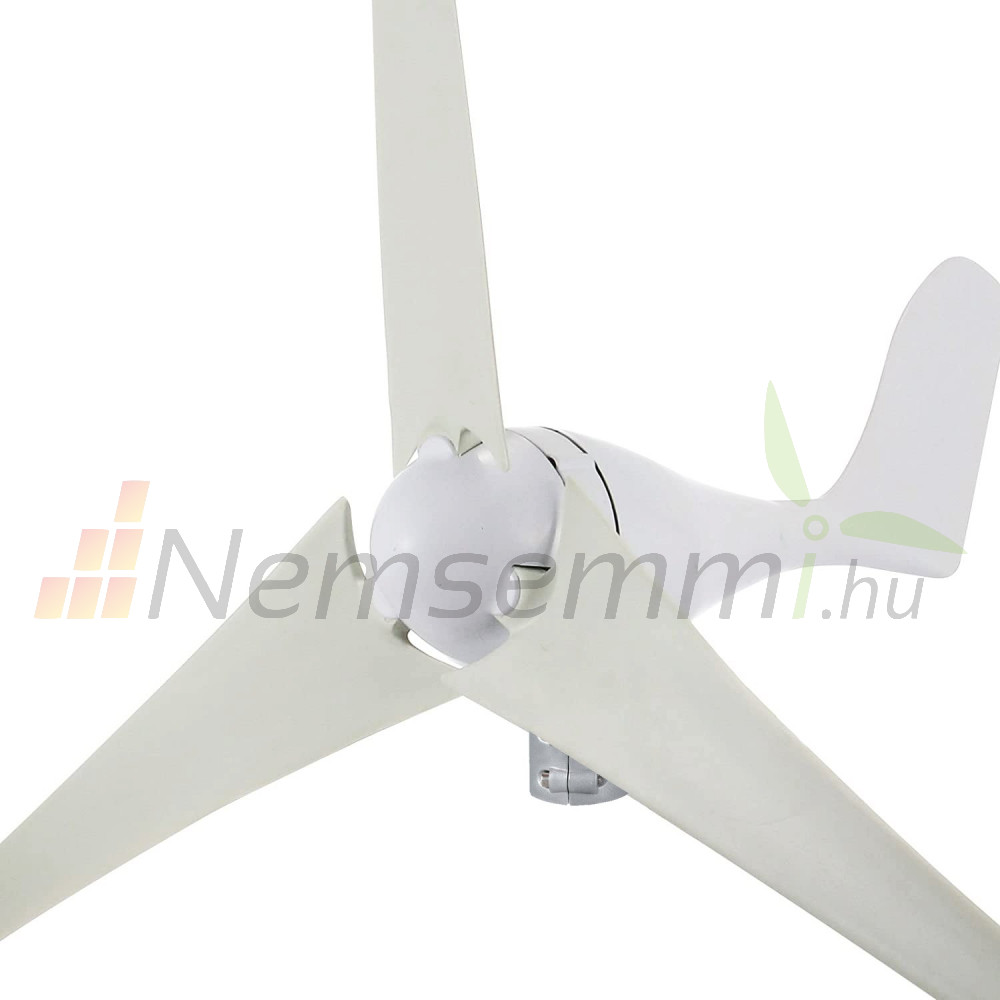

Wind wheel

This wind generator has high-quality blades and a three-phase permanent magnet motor. In addition, it boasts low start-up wind speed, low vibration and low noise, and can increase wind energy utilization and annual energy production. A good choice for home use and boat use.
Reinforced fiberglass is used for the blades. Optimized structure and aerodynamic shape to effectively reduce torque resistance and guarantee stability.
The wind turbine is designed from copper coil, high-quality aluminum alloy and stainless steel components, thus, it has good antioxidant and anti-corrosion properties under any harsh conditions.
The motor has a unique magnetic circuit uses a design designed with low starting wind speed and small starting torque. This can ensure the wind starting ability of the wind turbine.
Wind turbines have high power generation efficiency, corrosion resistance and water resistance.

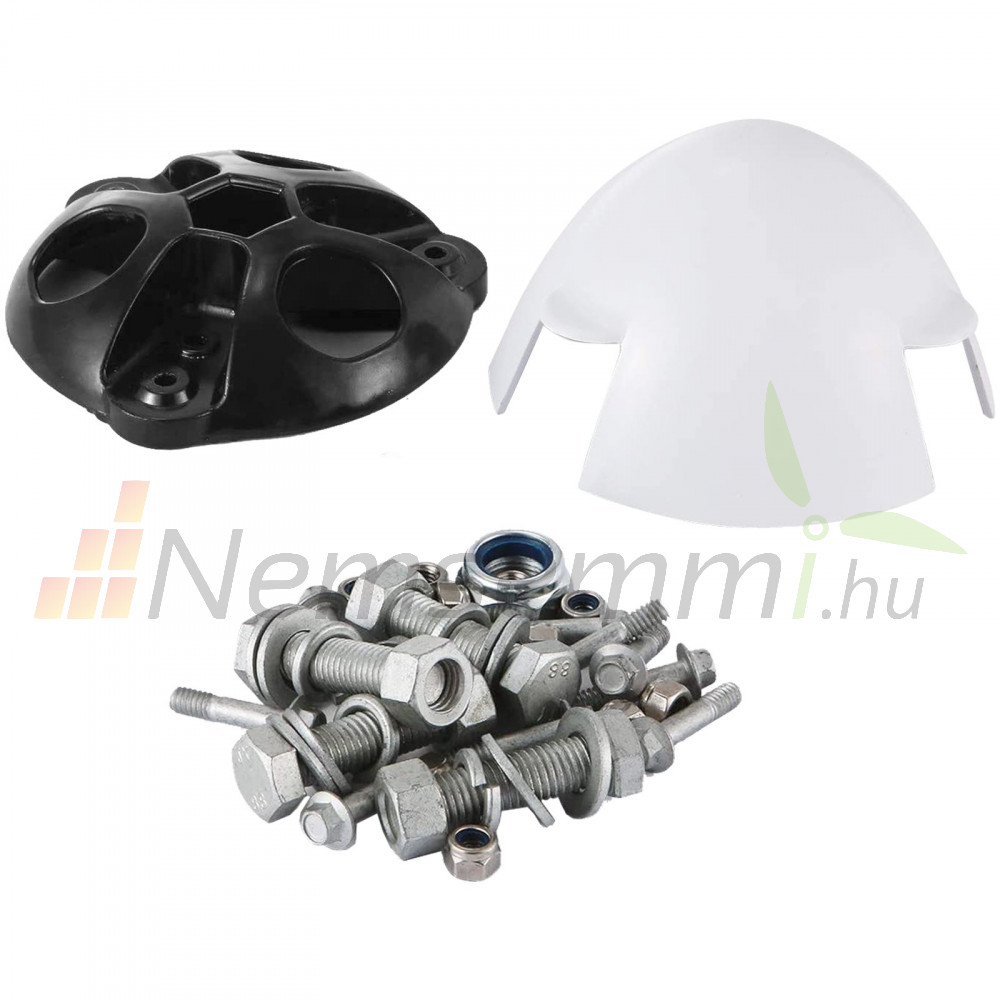

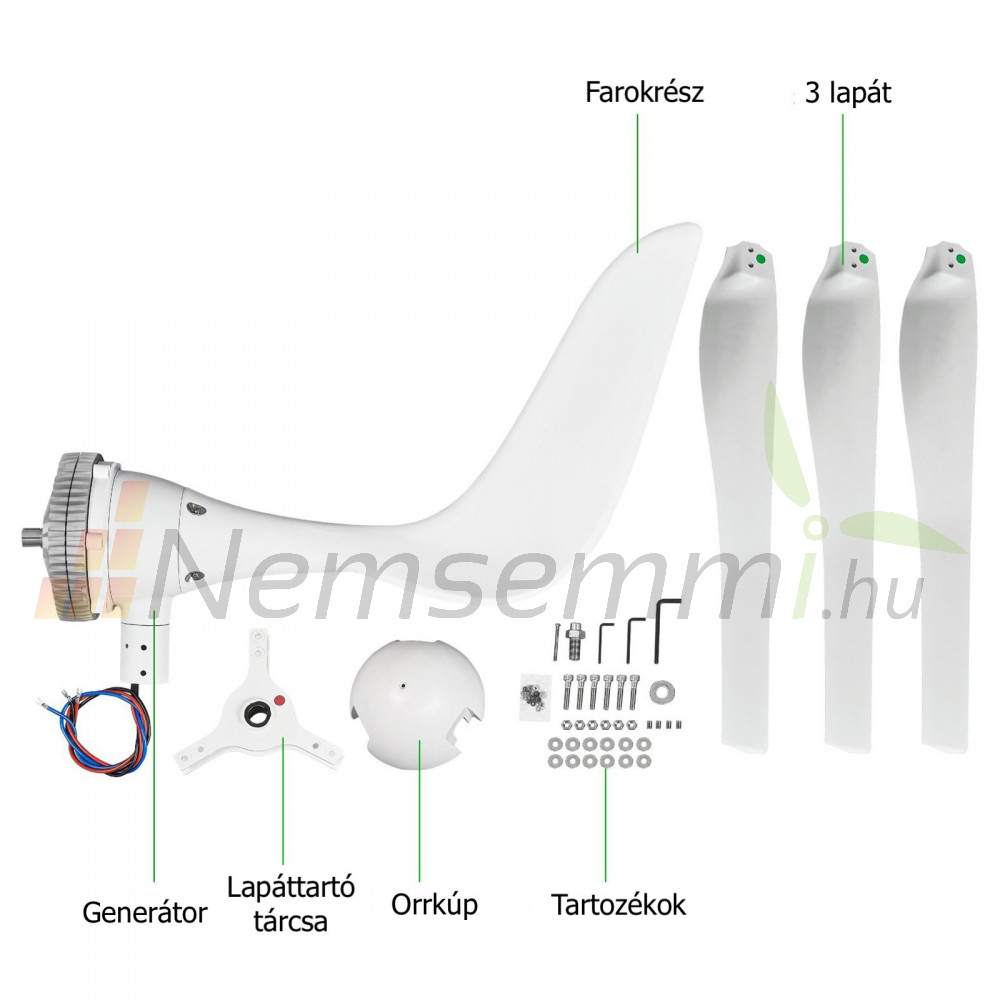

Installation of the wind turbine is simple and all installation materials are included. It can be used together with solar panels.

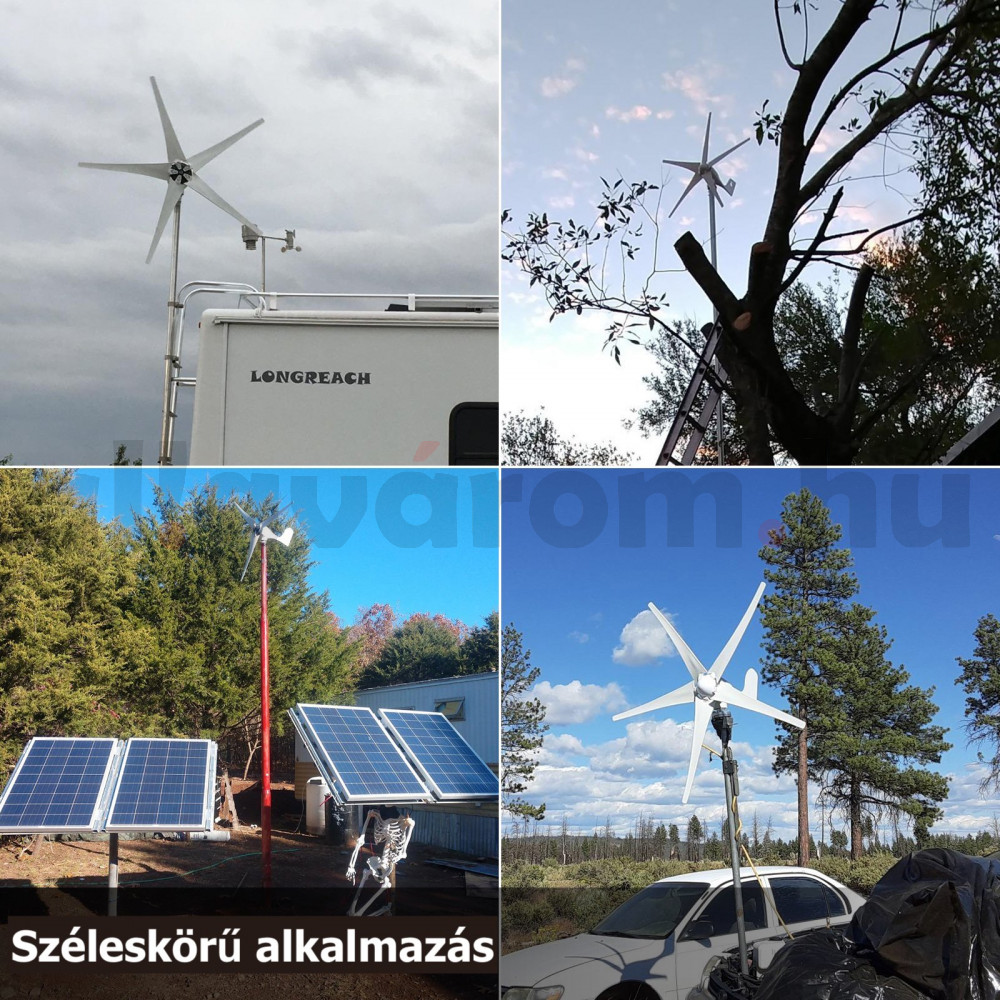

It can be used well for charging the batteries of boats, pavilions, wooden houses or mobile homes.

Main features:

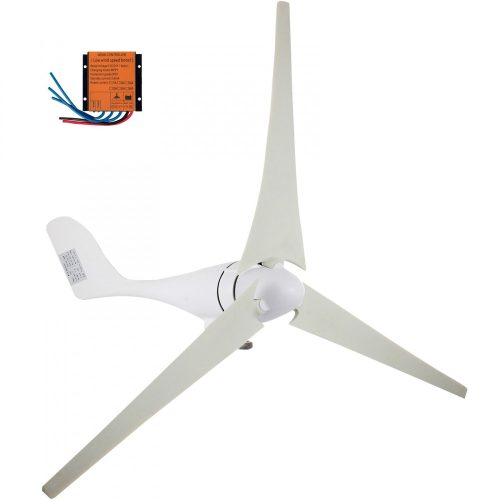

Windwheel 12V 400W 3 blade wind generator with wind turbine charging controller
