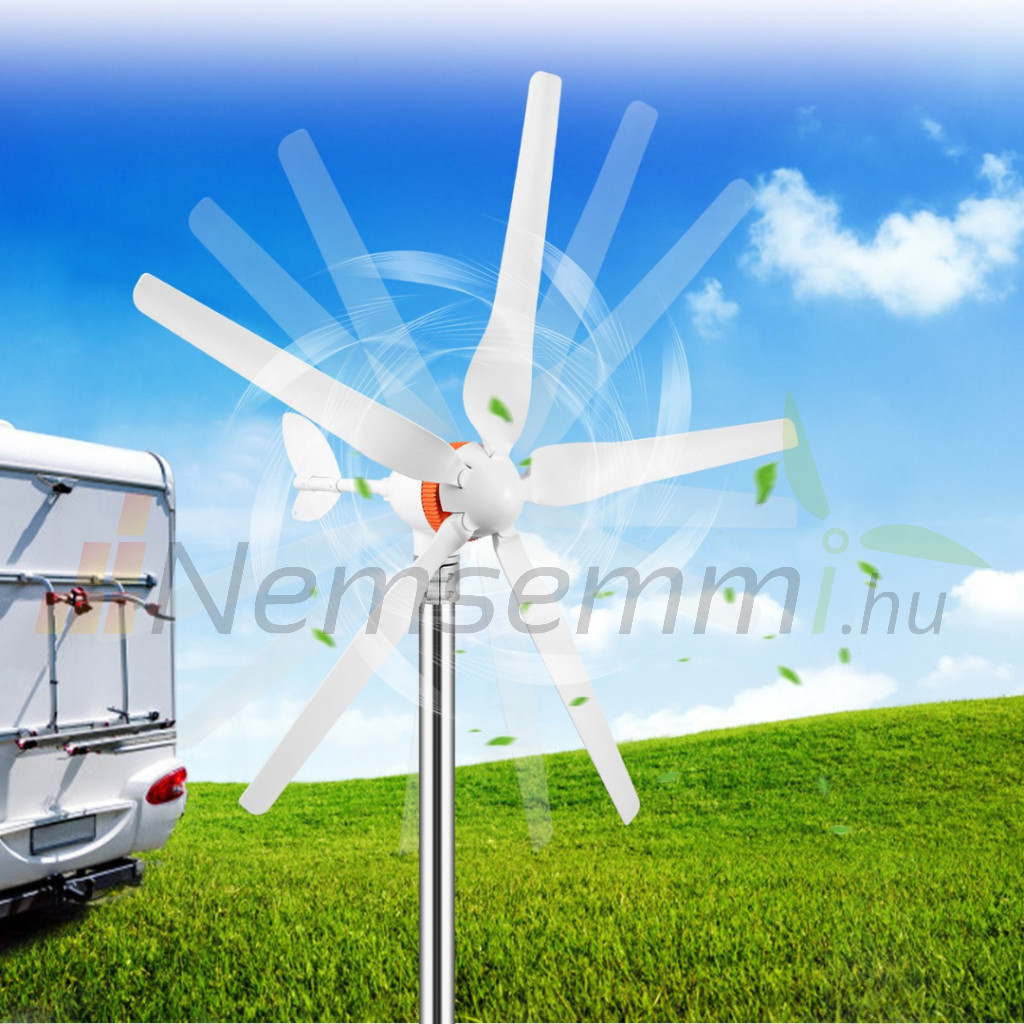

Wind generator 300W 12V, with MPPT controller, 5-blade wind wheel, wind turbine to supplement household power supply

Wind generator

Nominal power: 300 W
Maximum power: 330 W< br />Rated voltage: 12 V / AC
Rated current: 18 A

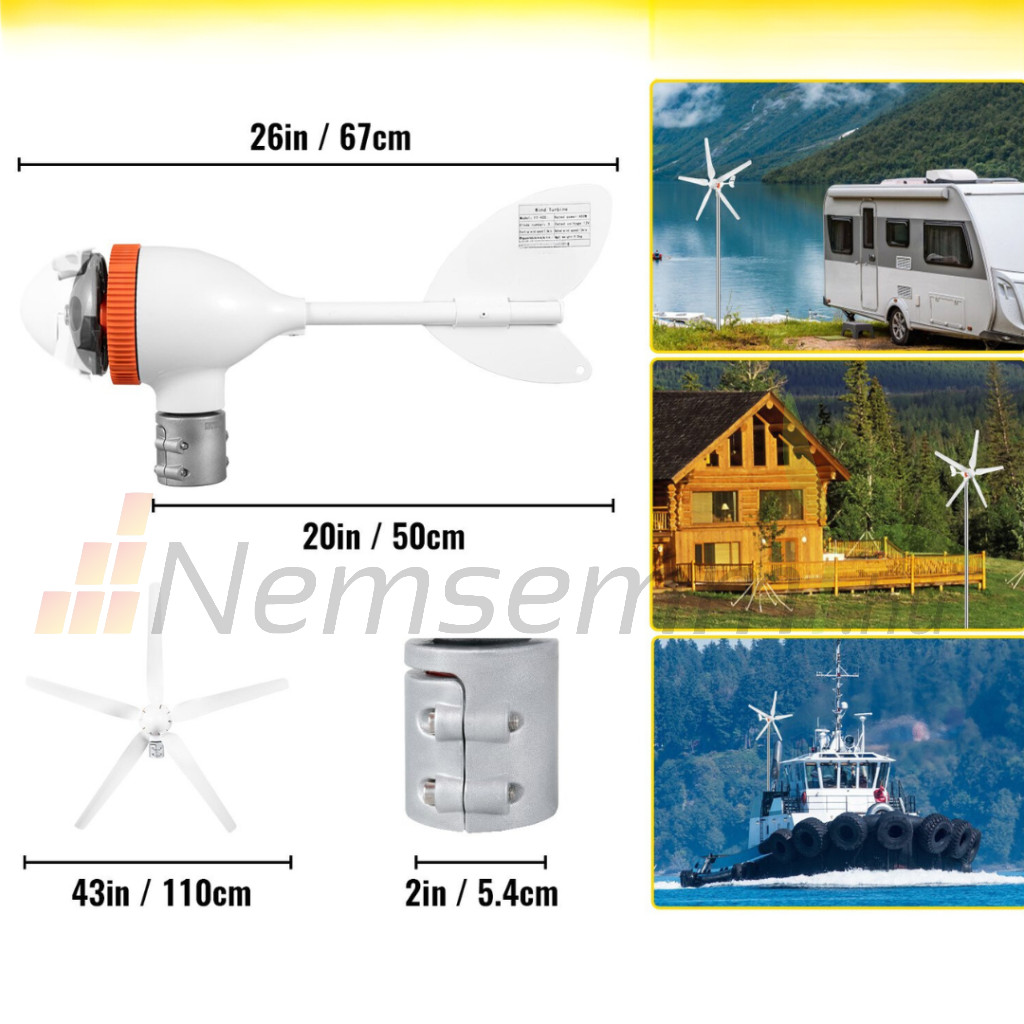

Rotor diameter: 1.1 m
Blades number: 5 (made of nylon fiber)
Starting wind speed: 2 m/s
Nominal wind speed: 13 m/s
Maximum surviving wind speed: 40 m/s
Working temperature: -40 °C - 80 °C
Generator type: Three-phase alternating current permanent magnet generator
Magnet material: Neodymium-iron-boron
Control system: MPPT electromagnetic / automatic direction adjustment
Coating material: Aluminum casting, coated finish
Tail design: Stainless steel coated
Net weight: 9 .5 kg
More information:

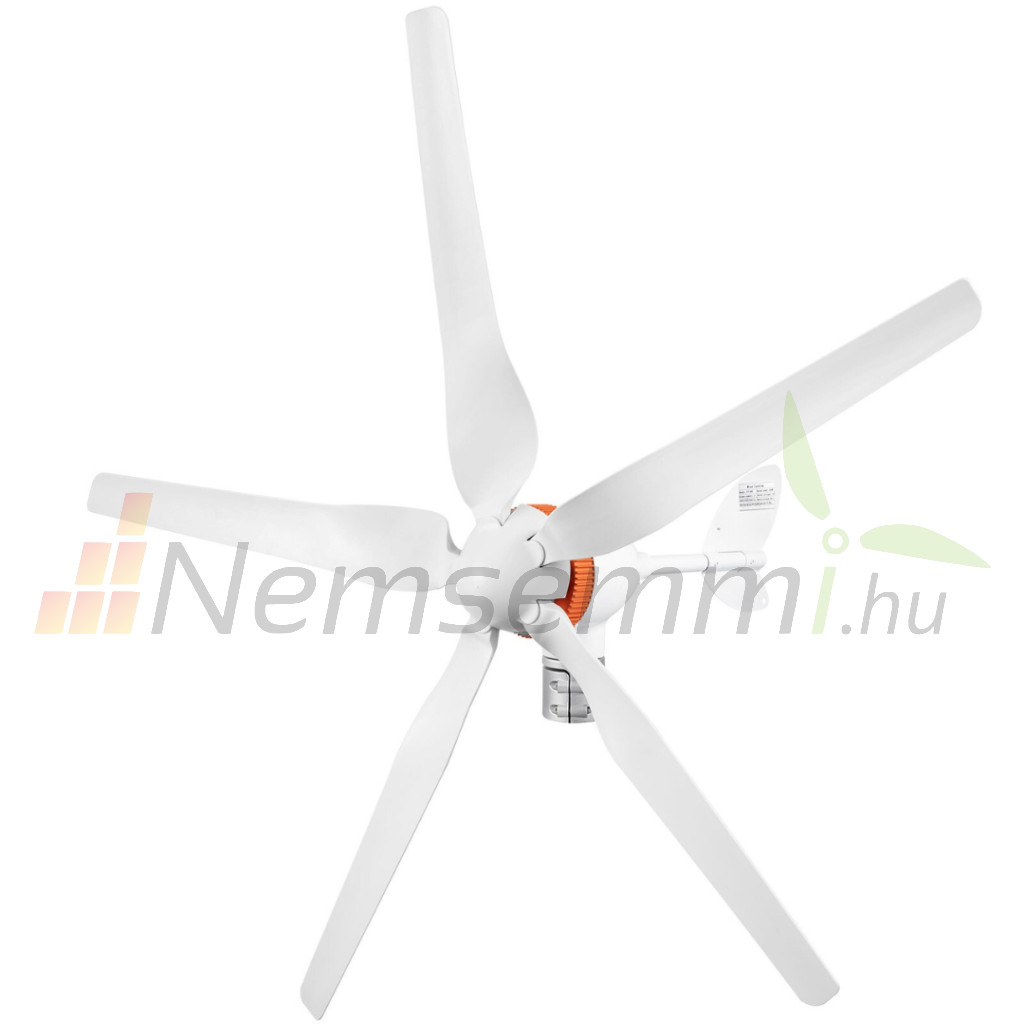

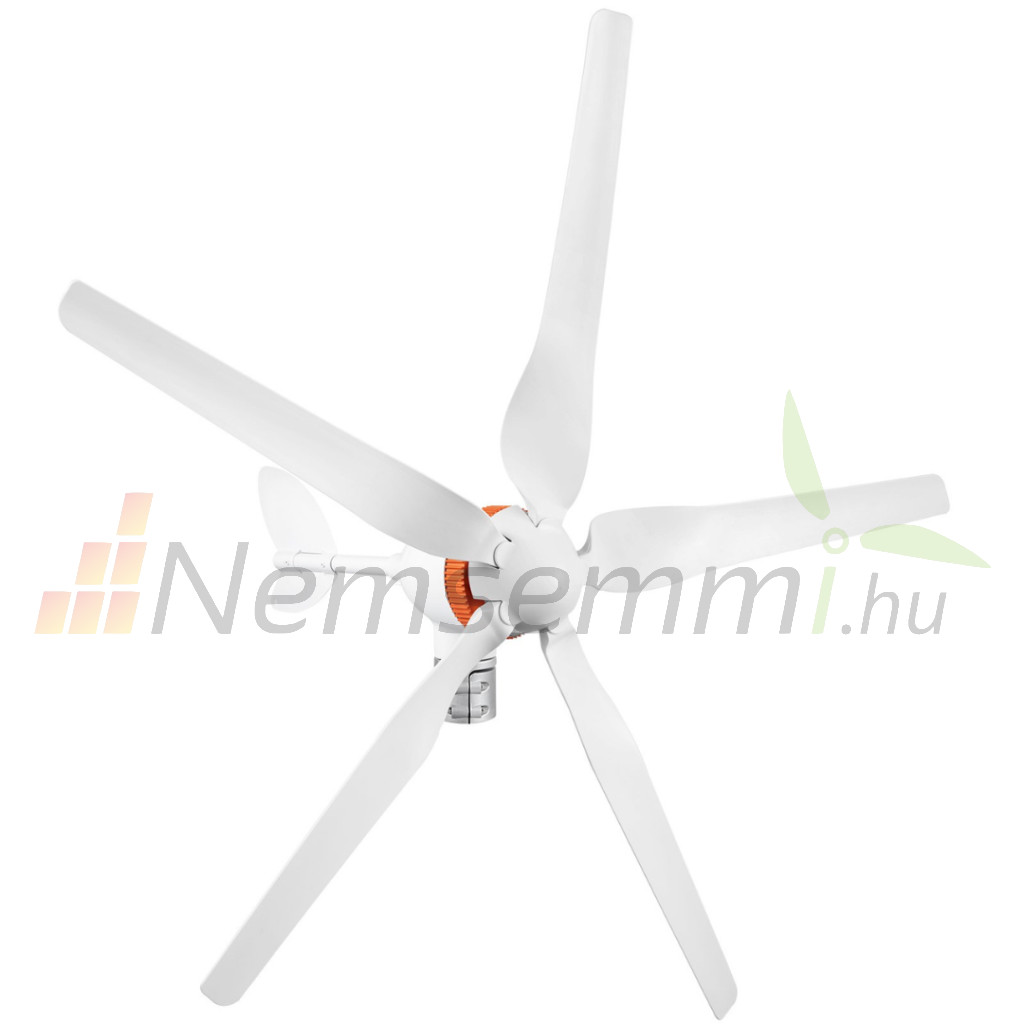

Horizontal wind wheel

This wind generator is an ideal choice for those looking for a sustainable, reliable and quiet solution to supplement their energy.

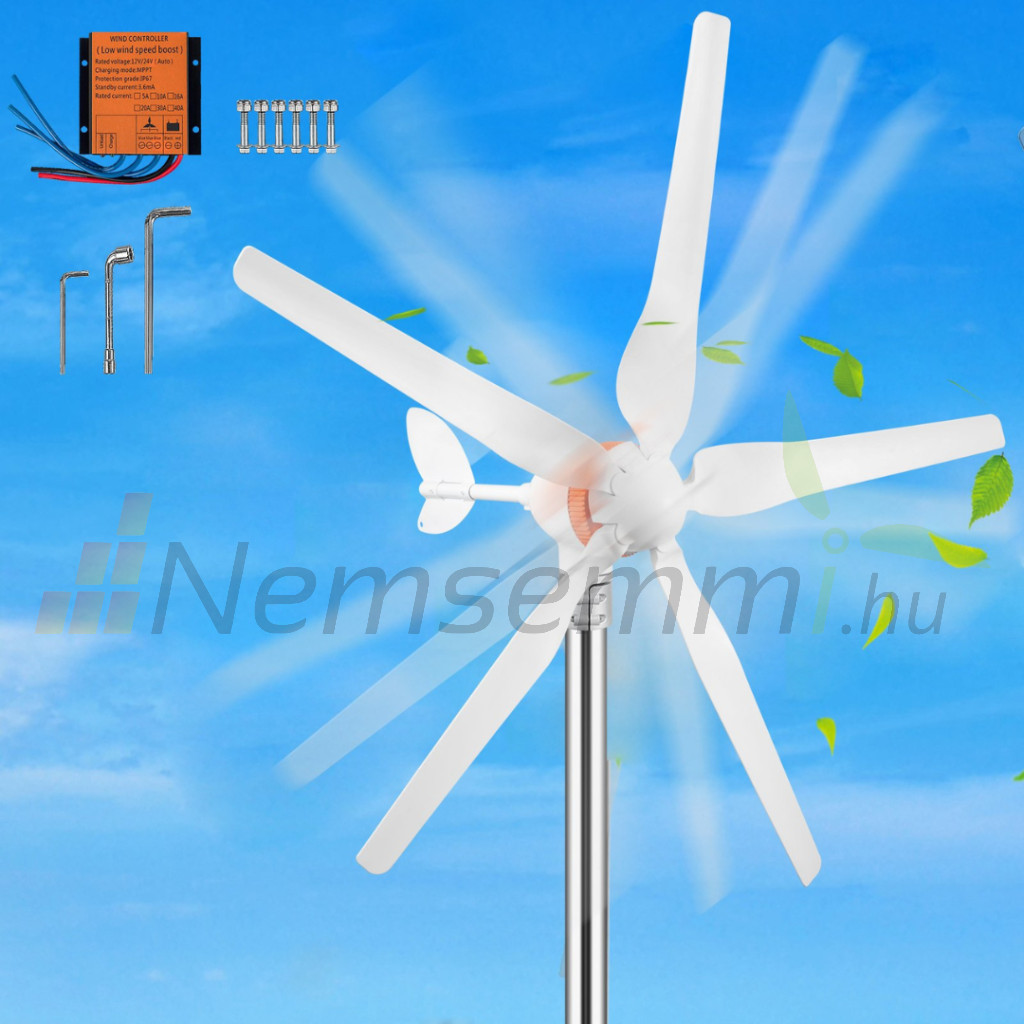

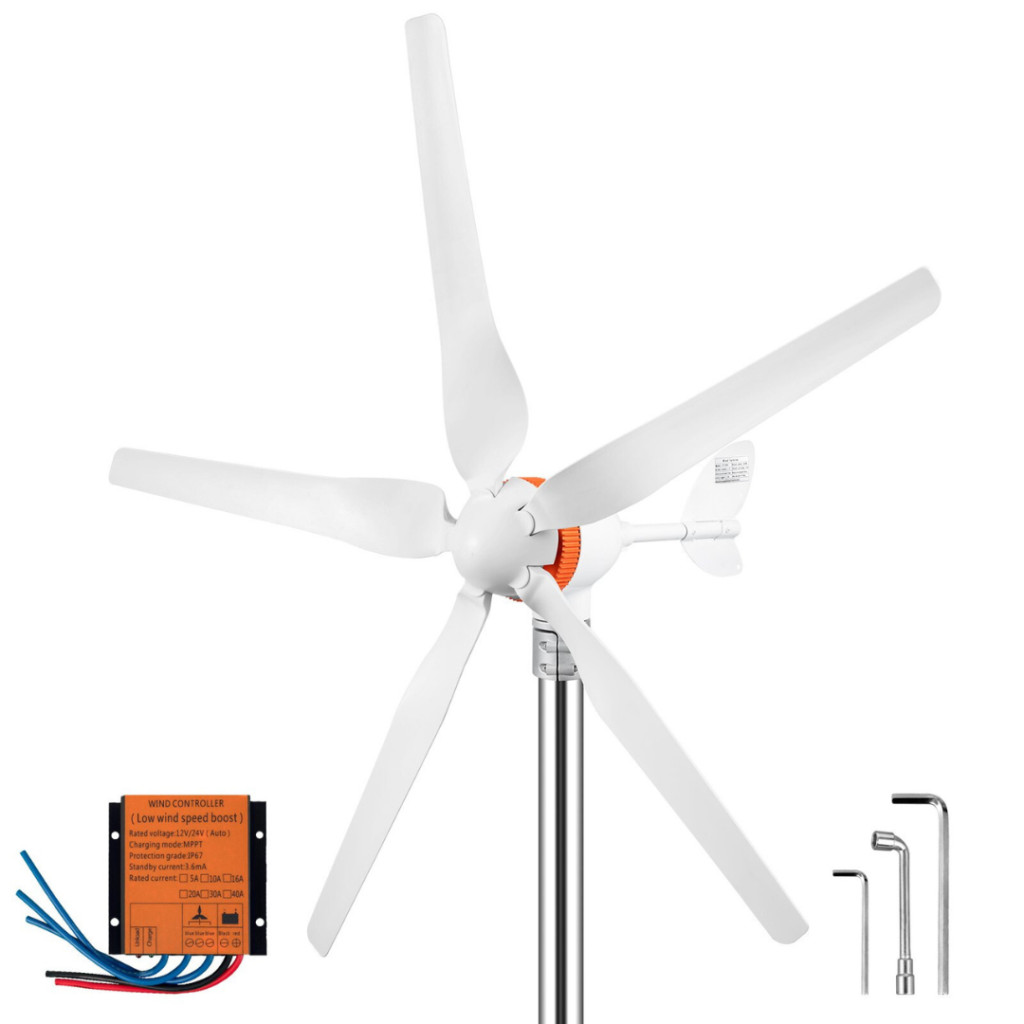

The generator is powered by a 300 W / 12 V three-phase NdFeB (Neodymium Iron Boron) permanent magnet synchronous motor with low noise and long life. The aluminum casing ensures fast heat dissipation, while the external MPPT controller provides efficient energy tracking.

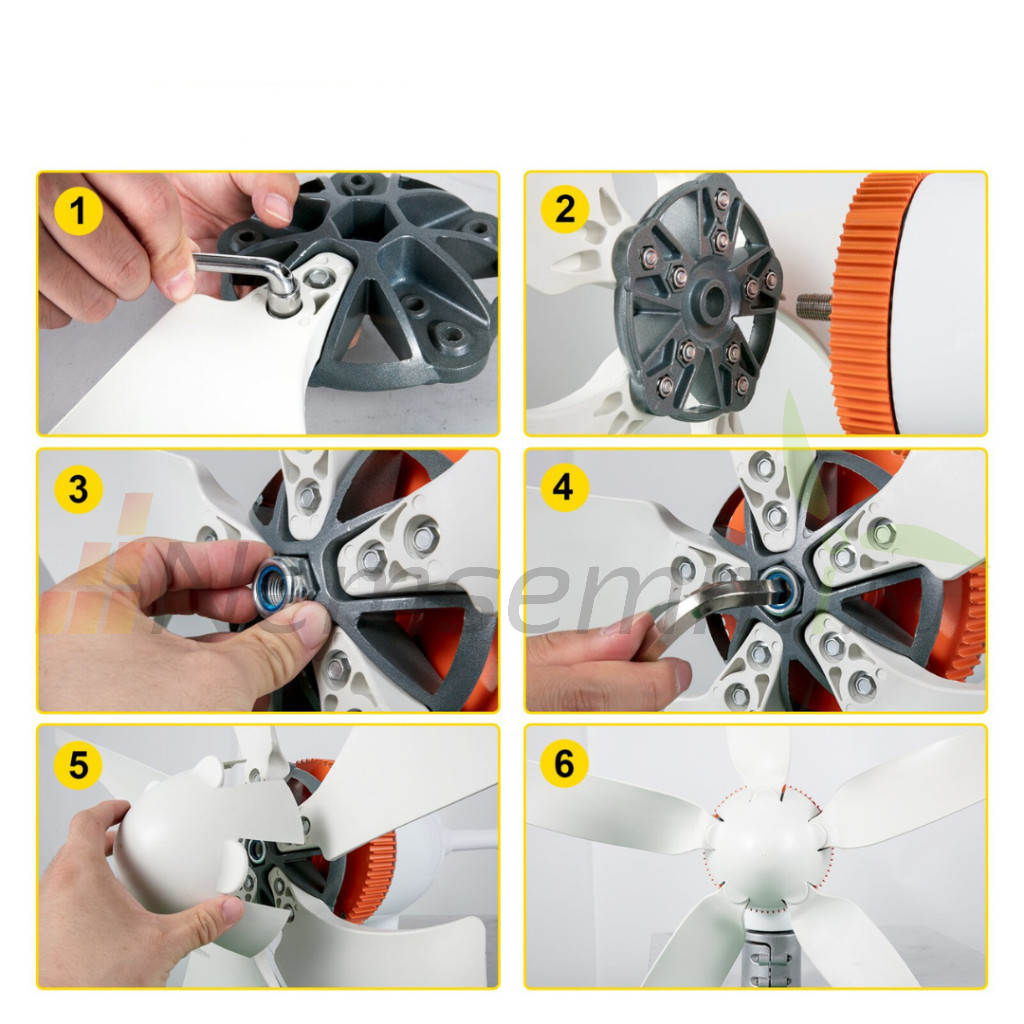

The blades of the wind generator are made of nylon fiber, which is waterproof, corrosion resistant and lightweight. The working temperature ranges from -40 °C to 80 °C. The device starts working at an initial wind speed of 2 m/s and automatically adjusts its direction to take advantage of the maximum wind speed. like flange mounting. The blades fit exactly to the hub and fasteners, ensuring quick and easy assembly.
The body of the wind generator is made of cast aluminum, and the tail part is made of stainless steel. The uniform casting form and the coated surface guarantee corrosion resistance and durability, so the turbine can withstand environmental influences in the long term.
The high efficiency wind turbine is ideal for home use for power supply, motorhomes, boats, pavilions, cottages and marine applications. Ease of installation and maintenance makes it particularly attractive.
