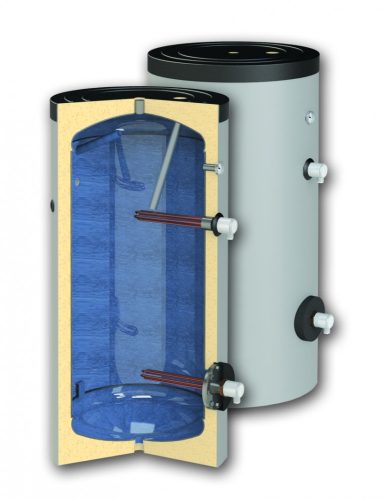

200 liter SunSystem boiler without heat exchanger. Hot water storage enamelled tank HMV

Standing indirect boiler

Appearance: RAL 9006 color
Volume: 200 L< br />Size: 1350x560 mm
Decision height: 1460 mm
Tank: Enamelled
Nominal pressure a in tank: 15 bar
Maximum operating temperature 95 °C
Insulation: 50 mm
Installation Vertical
Thermostat installation prepared
Heating insert installation prepared
Features :
- Exclusive design
- Large amount of warm water
- Large magnesium anode
- Large efficiency thick polyurethane insulation
- 8 bar safety pressure valve
- Product tested according to the strictest requirements
- glass-ceramic inner tank tested at 16 bar

More information:

Usable hot water tank

Enameled indirect storage tank without heat exchanger for making hot water.

Heating Modes:

• It is directly heated, so it can be used immediately and does not require a heat exchanger.

• Can also be ordered with an electric heater, with selectable outputs: 3kW, 4.5kW, 6kW, 7.5kW.


Design:

• Available in both vertical and horizontal versions, giving the opportunity to place according to the needs of the location.


Thermal insulation and covering:

• High efficiency thermal insulation that helps minimize energy loss.
  < /li>
• External PVC cover in RAL 9006 color, which provides an aesthetic and timeless appearance.
  < /span>

Temperature Sensor:

• Installation of a multi-position temperature sensor, which allows precise control and optimization of the temperature.


Corrosion protection:

• Complex corrosion protection with titanium enamel and anode protection, which ensures a long service life for the boiler.


Connections:

• All connections are internally threaded, which allows easy and quick installation.


Other Properties:

• Easy to assemble, so installation can be done quickly.

• Revision opening, which allows easy maintenance and possible repair of the boiler.
  < /span>

Energy Classification:

• Complies with the ENERGY EFFICIENCY 2010/30/EU directive and Regulation 812/2013.

• Class D efficiency from 80 to 120 liters.
  < /li>

This product has many advantages, including different heating options, high efficiency, easy installation and durable design. It is important that the product is selected and installed according to the specific needs and site requirements.
