Anode

Our SunSystem tanks are made with a glass-ceramic coating, but there is no such thing as a perfect coating, minor defects and contamination may occur. Corrosion can develop at the place of the defects, to prevent this, so-called we recommend a protective anode. This is a magnesium rod. The anode prevents rusting by corroding instead of the tank itself, so sooner or later it will run out. That is why it is important to periodically check the anode and replace it if necessary.

For SunSystem containers, among others:

SN 120-200 and SON 200 and SEL; SN; SON; HSEL; HSN; HSON 750-2000

INFO FOR HELP:

Thread
outer diameter zoll (")

13.157 mm = 1/4"
20.955 mm = 1/2"< /span>
26.441 mm = 3/4"
33.249 mm = 1"
41.910 mm = 1 1/4" = 5/4"
47.803 mm = 1 1/2" = 6/4"
53.746 mm = 1 3/4"
59.614 mm = 2"

More information:

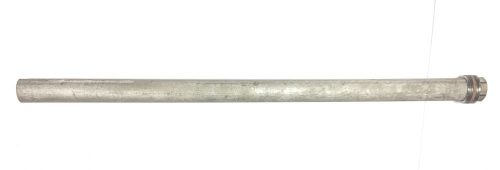

Magnesium anode tank for, among others, SunSystem boiler, tank, indirect storage

The magnesium rod itself has a diameter of 34 mm and a length of 60 cm.
If it doesn't fit, feel free to cut it!
The thread is 1 1/4"" i.e. 5/4"

SunSystem magnesium anode 60 cm long 32 mm diameter 5/4" protective anode boiler, tank, storage

Anode

Magnesium anode tank for, among others, SunSystem boiler, tank, indirect storage
