Anode

Our SunSystem tanks are made with a glass-ceramic coating, but there is no such thing as a perfect coating, minor defects and contamination may occur. Corrosion can develop at the place of the defects, to prevent this, so-called we recommend a protective anode. This is a magnesium rod. The anode prevents rusting by corroding instead of the tank itself, so sooner or later it will run out. That is why it is important to periodically check the anode and replace it if necessary.

For SunSystem containers, among others:

SEL; SN; SON; HSEL; HSN; HSON 300-500

INFO FOR HELP:

Thread
outer diameter zoll (")

13.157 mm = 1/4"
20.955 mm = 1/2"< /span>
26.441 mm = 3/4"
33.249 mm = 1"
41.910 mm = 1 1/4" = 5/4"
47.803 mm = 1 1/2" = 6/4"
53.746 mm = 1 3/4"
59.614 mm = 2"

More information:

Magnesium anode tank for, among others, SunSystem boiler, tank, indirect storage

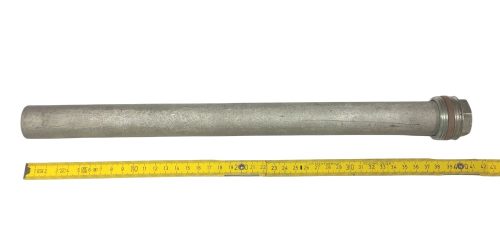

The magnesium rod itself has a diameter of 31 mm and a length of 40 cm.
Ha it doesn't fit, feel free to cut it!
The thread is 1 1/4"" i.e. 5/4"

SunSystem magnesium anode 40 cm long 31 mm diameter 5/4" protective anode boiler, tank, storage

Anode

Magnesium anode tank for, among others, SunSystem boiler, tank, indirect storage
