Anode

Our SunSystem tanks are made with a glass-ceramic coating, but there is no such thing as a perfect coating, minor defects and contamination may occur. Corrosion can develop at the place of the defects, to prevent this, so-called we recommend a protective anode. This is a magnesium rod. The anode prevents rusting by corroding instead of the tank itself, so sooner or later it will run out. That is why it is important to periodically check the anode and replace it if necessary.

Among other things, for SunSystem MB and BB boilers

INFO FOR HELP:

Thread
outer diameter zoll (")

13.157 mm = 1/4"
20.955 mm = 1/2"< /span>
26.441 mm = 3/4"
33.249 mm = 1"
41.910 mm = 1 1/4" = 5/4"
47.803 mm = 1 1/2" = 6/4"
53.746 mm = 1 3/4"
59.614 mm = 2"

More information:

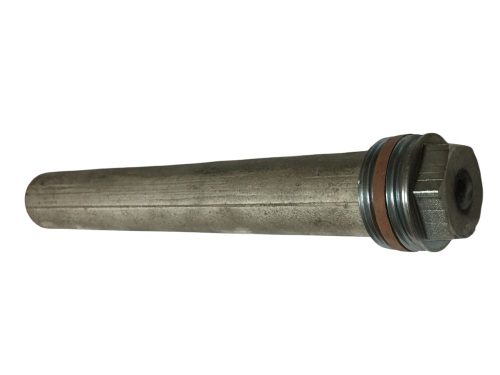

Magnesium anode tank for, among others, SunSystem boiler, tank

The diameter of the magnesium rod itself is 31 mm, the length is 25 cm, the usable length is 23 cm.
If it doesn't fit, feel free to cut it!
The thread is 1 1/4"" ie 5/4"

SunSystem magnesium anode 23 cm long 32 mm protective anode boiler, tank, storage 5/4"
