Solar collector DHW collector with 150 l heat exchanger SP-C tank - copper tube heat exchanger in the tank - thus pressure resistant! Inox inner tank

Tank solar collector

Vacuum pipe diameter: 58mm length: 1800mm number of pieces 15
Collector surface: 1.85 m2
Tank diameter inside 360 ​​mm Outside: 470 mm
Tank material inside: stainless! Exterior: painted steel
Copper heat exchanger tube length: 25 meters!
Copper heat exchanger tube diameter: 12mm
Maximum pressure: 6 bar.
Polyurethane insulation thickness: 55 mm polyurethane
Connectors: Air valve, sensor connector, heating cartridge connector, mains water inlet 1/2" and outlet 3/4", filling and draining connection
Material of support structure: sintered steel
Collector tilt angle: 45 degrees
Available accessories:< /span>
electric heating cartridge (5/4" socket on the solar collector)
heating cartridge control
Warranty: 2 years

< span style="color: #000000;">< /span>

PACKAGE SIZE ( 4 boxes ):

Tank: 1300x500x515 30 kg
Vacuum tubes: 1 pc 1880x340x250 1x33 kg
Frame: 1800x180x110 15 kg
5 liter additional tank: 230x235x290x 2.3 kg
Number of vacuum tubes: 15
It comes with a support frame for a flat surface, which can be converted to a sloping roof.

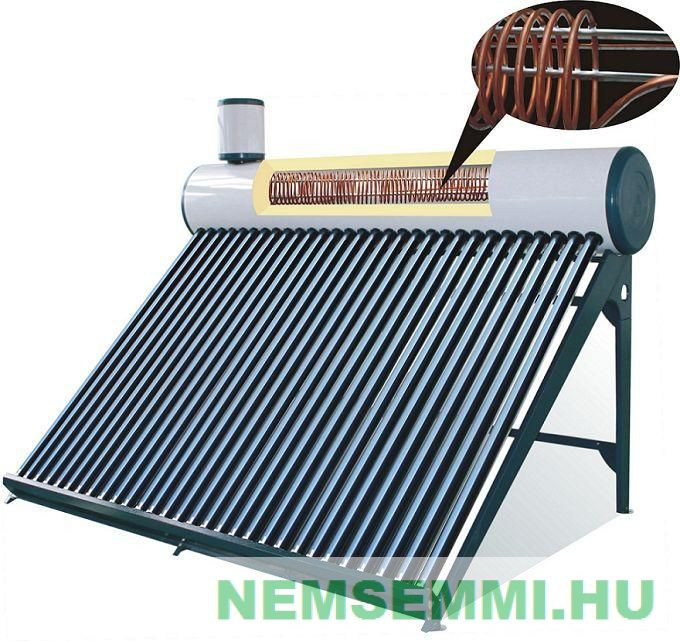

The picture is an illustration!

More information:

Solar collector with external tank

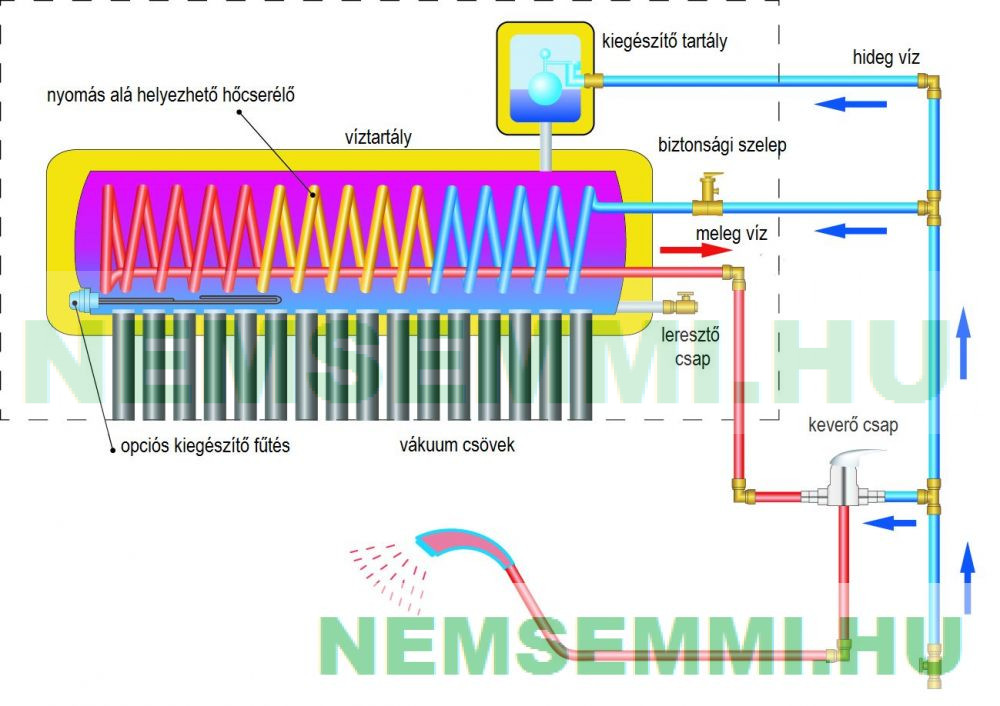

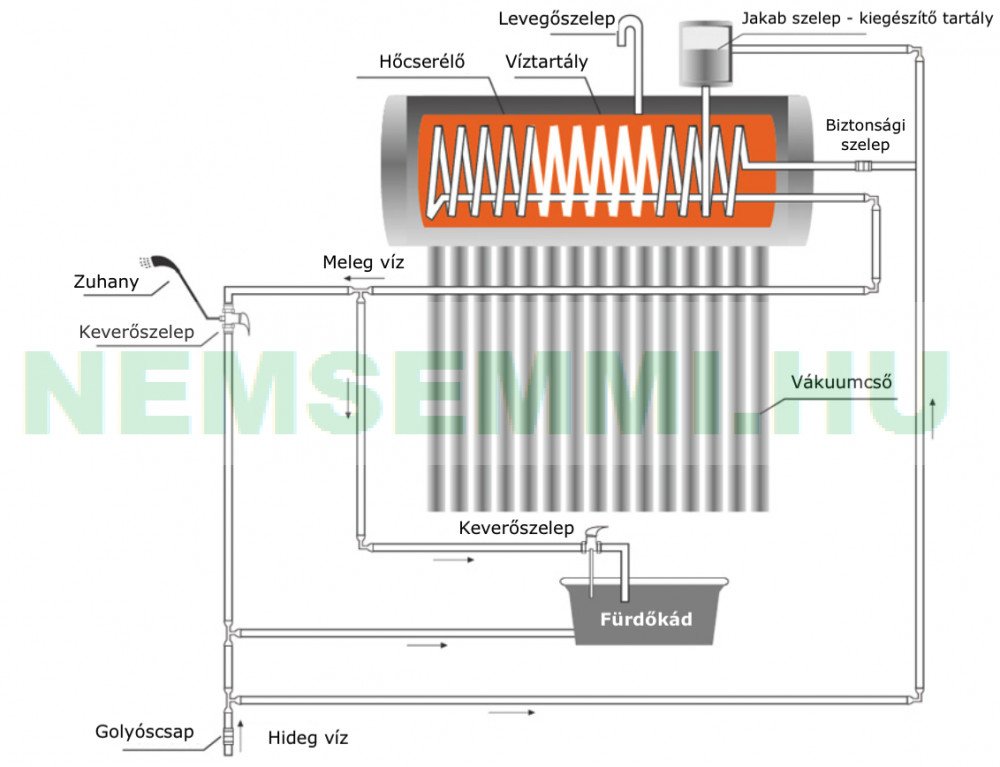

Tank solar collector with built-in copper heat exchanger, so the system can be pressurized. The inner tank is stainless steel, the outer one is painted steel, with thick insulation between the two.
After the system is pressure-resistant, so you can let the mains pressure on it, and you don't have to mount it high, like the cheaper, pressure model without, where the hot water "pressure" is provided by the height of the tank, as far as you know!
The advantage is that domestic hot water is not stagnates in the tank, the liquid in the tank only serves for heat storage and heat transfer.
It can be supplemented with a heating pad and a control, which can be used to maintain a constant temperature. In winter, the water must be drained from it, namely a few weeks before the expected arrival of frost, and the water remaining in the pipe will evaporate in the following days, so it is not necessary to dismantle the structure.

FEATURE:

1. DHW uses water pressure
2. Auto operation
3. Fast water heating
4. Use copper heat exchanger and install easily
5. No scale and corrosion
6. Easily installed on flat and sloping roofs
7. An additional heating pad can be placed
8. 55 mm polyurethane foaming
