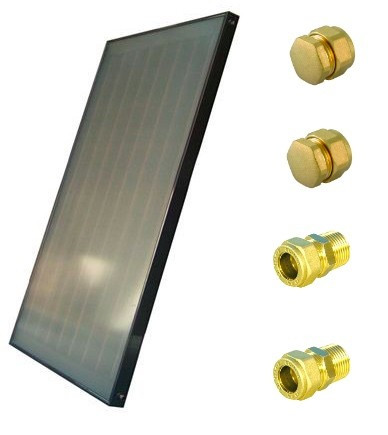

Sale SID flat collector brown + 4 connectors 6 years warranty. Copper tube, safety prismatic glass 1352 Wp power, metallic brown aluminum frame + 4 connectors

Solar collector

Size WxD: 1060 x 2000 mm
Ski collector thickness 80 mm
Total collector surface: 2.00 m2
Aperture surface: 1.93 m2
Glass thickness: 4 mm
Glass thickness: microprism low-metal, heat-treated safety glass
Pipe: copper with harp system, with ultrasonic welding
Collection pipes: pure copper φ 22 mm
Harp pipes: pure copper φ 8 mm
Connections: 4 pcs 22 mm copper connecting pipe
Liquid capacity: 1.8 liters
Operating pressure : 8 bar
Maximum pressure: 10 bar
Absorber material : selective black chrome
Absorbing capacity: 92 %
Emissivity factor: 6%
Insulation thickness: 35 mm
Insulation material: glass wool
Idle temperature: 200 °C
Efficiency, η: 72.8%
Loss coefficient a1 (w/m³k2): 4.33
Loss coefficient a2 (w/m³k2): 0.015
Recommended volume flow: 30-70 liters/hour
Peak performance per square meter: 1352Wp/collector, 676 Wp/m2
Certification: CE certificate
Available solar collector accessory: Mounting frame for sloping or flat roofs
Materials: anodized aluminum profile, stainless steel with screws

Harp system COPPER manifold design, with 22 mm connectors.
CE certificate

PACKING SIZE:
202X110X10 cm 32 kg

More information:

Solar collector

Flat collector, aluminum housing, with copper collector tube, heat-treated safety microprism glass, aluminum housing, thick insulation for solar energy utilization.
The package includes + 4 connectors, with the help of which the 22 mm copper pipe outlet can be connected to two can be converted into 2 3/4" external threads with the help of a wrench, so no soldering is required, 2 end caps with which you can connect the 2 outlets of the flat collector without soldering!

With a 6-year warranty!

It is worth buying the factory aluminum support frame, it can be installed correctly. The solar collectors will still be as beautiful in 10 years, it's a shame to spoil them with a rusting iron frame. guaranteed by corrosion-resistant materials: among other things, safety microprism solar glass with a low metal content (it has excellent heat resistance and a high degree of chemical resistance), and copper.

The steam collector is delivered in a cardboard box.
Simple installation and maintenance.

The flat collector support frame accessory is not included in the price, it can also be ordered for sloping and flat roofs, see our products.

For similar products, it is worth asking:

1. Is it equipped with heat-treated safety solar glass? Smooth glass breaks easily and into shards, danger of accidents!
Is it microprism? It absorbs light better than frosted glass!
Does it have a low metal content, i.e. does it have increased transmittance?

2. On the material of the collector pipes, because the collector with aluminum connecting pipe must not be installed with copper pipes due to corrosion, and plastic five-layer pipes can only withstand heat up to 95 degrees and that is not enough! Copper is really good!

3. Size: each solar collector is around 2 m2, but it doesn't matter if it's 1.8 or 2!

4. The absorber surface: chemically applied, e.g. black chrome selective coating or just plain painted matte black?
