Solar collector pump station 2-12 l/p 2-sided GRUNDFOS circulation pump group thermally insulated + bubble separator + pressure gauge

• Details
• Info

Details

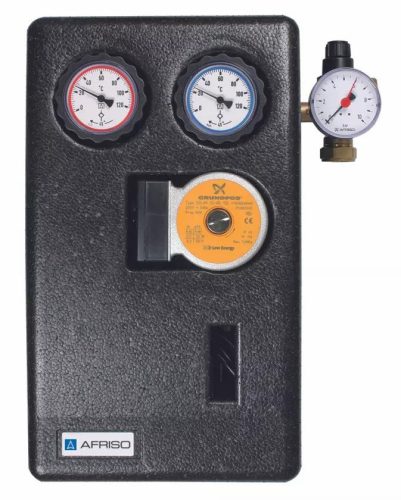

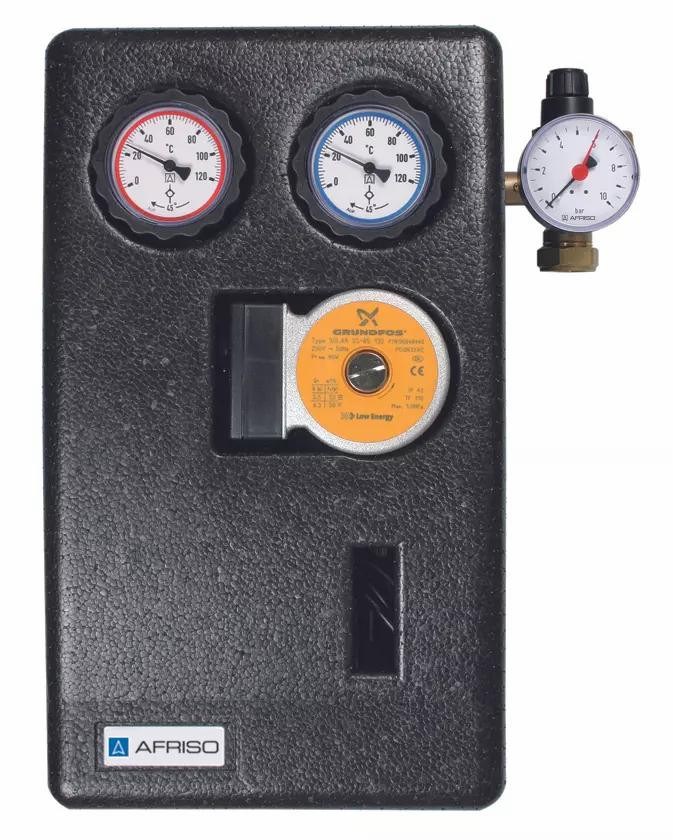

Solar pump station

Pump: GRUNDFOS Solar 25-65 130
Flow rate: 2-12 liters /min
Connections: 3/4"
Maximum pressure: 10 bar
Maximum temperature: 160°C
EPDM seals,
EPP external insulating box
flow meter and regulator
expansion tank connection point,
6 bar safety valve
2 thermometers
1 pc pressure gauge
air separator

More information:

Solar pump station

Two-sided pump station, which includes the fittings for the forward and return lines of the solar circuit.
Mass flow: 2.0-12.0 l/min
Max. pressure: 10 bar
Connections: 3/4"
The solar station is a prefabricated compact unit that contains most of the equipment and fittings required for the operation of the solar collector system connecting it can save a lot of work and space.

Info

Vonalkód:

6202410151531

EAN-kód:

6202410151531

MPN-kód:

NS151531

Weight:

10 kg/pcs
