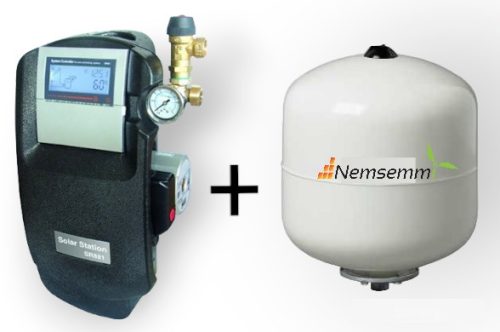

Pump station and control + solar 24 liter expansion tank in one package Solar collector station SR881

Pump station and control + solar expansion tank

Size: 400 x 200 x 145 mm
Pump: Wilo 15-6 + another max. can be controlled. 200W pump!
Connecting cable: 1.5 meters
Connectors: 3/4"
Pressure gauge: 1-6 bar
Safety valve: 6 bar
Thermometer: 0-120 °C
Max. operating temperature 120'C
Flow meter
2 flow regulators (both electronic and manual)
shut-off tap with non-return valve,
filler tap
expansion tank connection point

+

Solar expansion tank -10°C +140°C Capacity 24 l
Set pre-pressure: 2.5 bar
Maximum pressure: 8 bar
Temperature: -10 C / + 140 C
Membrane: EPDM
Height: 483 mm
Diameter: 280 mm
Connecting thread: 3/4"

More information:

Pump station

1 circuit solar collector control with WILO pump.
2 tanks and 1 collector with heat probe
The entire station is covered with polystyrene insulation.

Time display (hour and week)
Freeze protection
Water temperature display (tank, collector)
Memory function in case of power failure
ΔT controlled circulation
Display in case of sensor error
< span style="color: #000000;">Time-controlled hot water circulation
Flow volume display
Time controlled heating
System pressure display (separate instrument)
Interval temperature controlled heating support
Max. collector temperature (collector cooling)
Max. tank temperature (tank cooling)
"Free" function

Inputs and outputs
1 collector temperature sensor
2 tank bottom-top temperature sensors
1 second pump
1 heating cartridge, max 1500W

18 liter expansion tank made for a solar collector system.
Look for the wall holder among our products.
Solar expansion tanks can withstand higher temperatures compared to traditional heating tanks, and the membrane is more resistant to against solar (antifreeze) liquid.
When sizing the expansion tank in solar collector systems, in addition to thermal expansion, the possibility of steam formation must also be taken into account.< br />Buy bigger than you think.
