Solar collector control SR81 2 pumps, 1 motorized valve, heating switching, 3000 W heating. Controller controller solar controller 3 sensors SR868

Solar controlSR868/SR81

Display unit dimensions: 120mm * 120mm * 18mm
Control unit dimensions: 200mm * 140mm * 45mm
Voltage: AC 230V ± 10%
Power input, consumption: <3w br=""> Accuracy of temperature sensors: ± 2 C
Measuring range of temperature sensors: 0 - 120 C
Power of pumps: the control unit is suitable for controlling 2 pumps, the individual power of the pumps is <600 w="" br="">Power of the valve controller: the control unit is suitable for controlling 1 valve, the power of the valve is <600 w= "" br="">Power of electric heating that can be switched by the controller ≤ 3000W
Inputs: 4 sensors - Collector and tank for heat sensors
Outputs: 4 relays,
- 1 for the electric heating,
- 2 for the circulation pump
- 1 for the solenoid valve
Ambient temperature: -10 + 50 C
Protection against environmental influences: IP40.

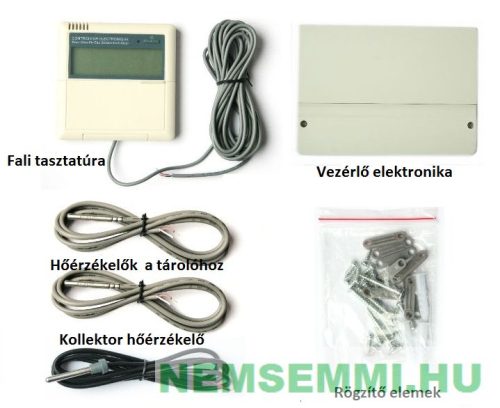

Package contents:
1 programmable wall display
1 control unit

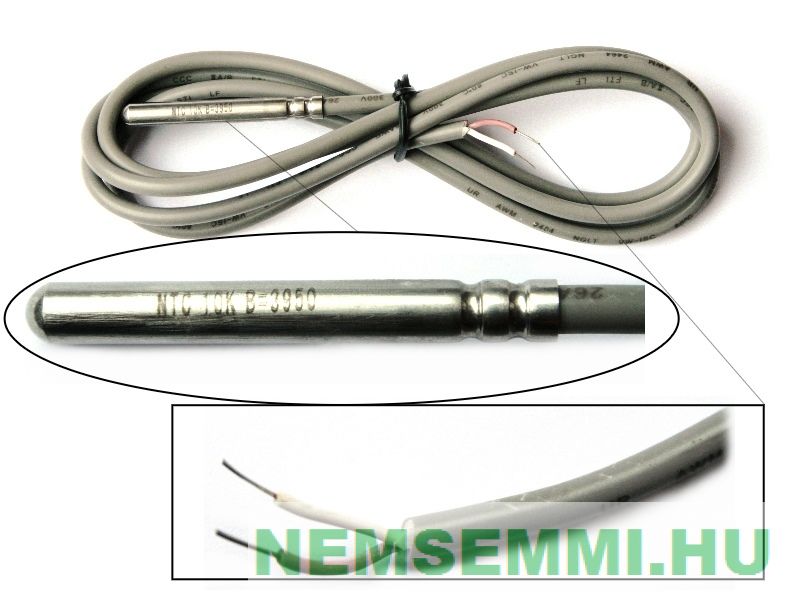

2 storage temperature sensors

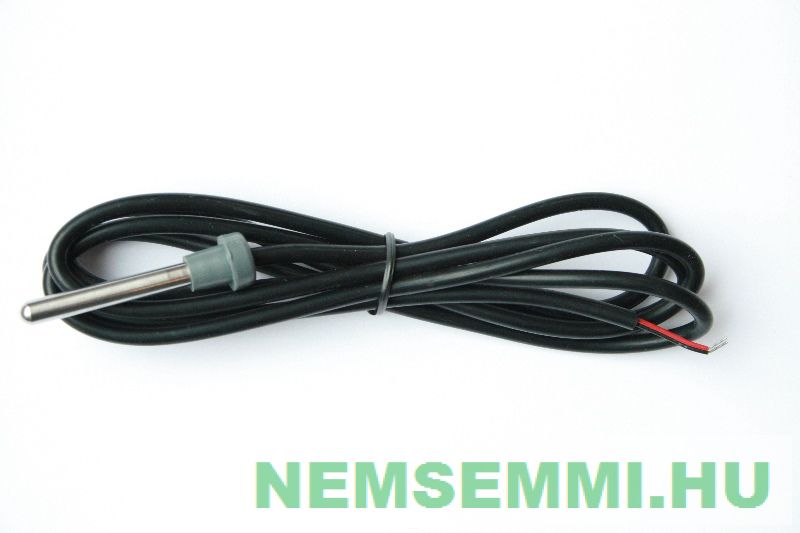

1 pc collector temperature sensor
1 pc fixing unit package
1 Hungarian installation guide (downloadable from our website)

More information:

Solar collector control

This solar collector control is the perfect solution for a normal solar collector system, it monitors the temperature of the collector and the tank in two places, and starts the pump if necessary.
It can also switch on electric auxiliary heating, an additional magnetic valve and the circulating hot water circulation.
The control is pre-programmed, personalization is not complicated.
If you still want professional equipment and programming, we can to recommend a contractor who Bp. It also goes to homes within a 100 km radius.

The advantage is that the control is a separate unit from the small-sized wall-mounted operator, which can thus be placed in a cultured way in the apartment.

Hungarian operating instructions
Control based on temperature difference
Extra: Switching of electric auxiliary heating based on tank temperature up to 3000 W!
Usable hot water circulation in pipe
Freeze protection function
Tank overheating protection function
Anti-bacterial function
The product contains 3 sensors
