SID Flat panel collector - our most popular solar collector - large copper tube solar collector 8 cm thick aluminum frame 6 year warranty at a good price

Solar collector

Size: WxH: 1060 x 2000 mm
Ski collector thickness: 80 mm
Total collector surface: 2.00 m2
Aperture surface: 1.93 m2
Glass thickness: 4 mm
Glass thickness: microprism low-metal, heat-treated safety glass
Pipe: copper with harp system, with ultrasonic welding
Collection pipes: pure copper φ 22 mm
Harp pipes: pure copper φ 8 mm
Connections: 4 pcs 22 mm copper connecting pipe
Liquid capacity: 1.8 liters
Operating pressure : 8 bar
Maximum pressure: 10 bar
Absorber material : selective black chrome
Absorbing capacity: 92 %
Emissivity factor: 6%
Insulation thickness: 35 mm
Insulation material: glass wool
Idle temperature: 200 °C
Efficiency, η: 72.8%
Loss coefficient a1 (w/m³k2): 4.33
Loss coefficient a2 (w/m³k2): 0.015
Recommended volume flow: 30-70 liters/hour
Peak performance per square meter: 1352Wp/collector, 676 Wp/m2
Certification: CE certificate
Available accessory: Solar collector mounting frame for pitched or flat roof
Material: correct metallic brown anodized aluminum profile, with stainless screws
Harp system COPPER manifold design, 22 mm with connectors.

Plane collectors can be extremely useful in households, shops, institutions and many other places. Their advantages include:

• Environmentally friendly energy use: Solar energy is a renewable energy source that reduces the emission of greenhouse gases and contributes to sustainable development.

• Energy savings: By using flat collectors, property owners can reduce the use of traditional energy sources (gas, electricity, etc.), thus reducing energy bills.

• Hot water production: In many households, flat collectors are primarily used to produce hot water, which is an excellent way to reduce the use of conventional water heaters.

• Heating and cooling support: We can further increase energy efficiency and sustainability by combining flat collectors with some heating and cooling systems.

PACKING SIZE:
202X110X10 cm 32 kg

More information:

Solar collector

Plane collector, aluminum housing, with copper collector pipe, heat-treated safety microprism glass, aluminum housing, thick insulation for solar energy utilization. to install correctly. Solar collectors will still be as beautiful in 10 years, it's a shame to spoil them with a rusting iron frame!

A flat collector is a solar energy utilization device that is used to collect and store heat energy radiated by the sun's rays. These collectors convert solar energy into heat, which can then be used to produce hot water, heating or even cooling.

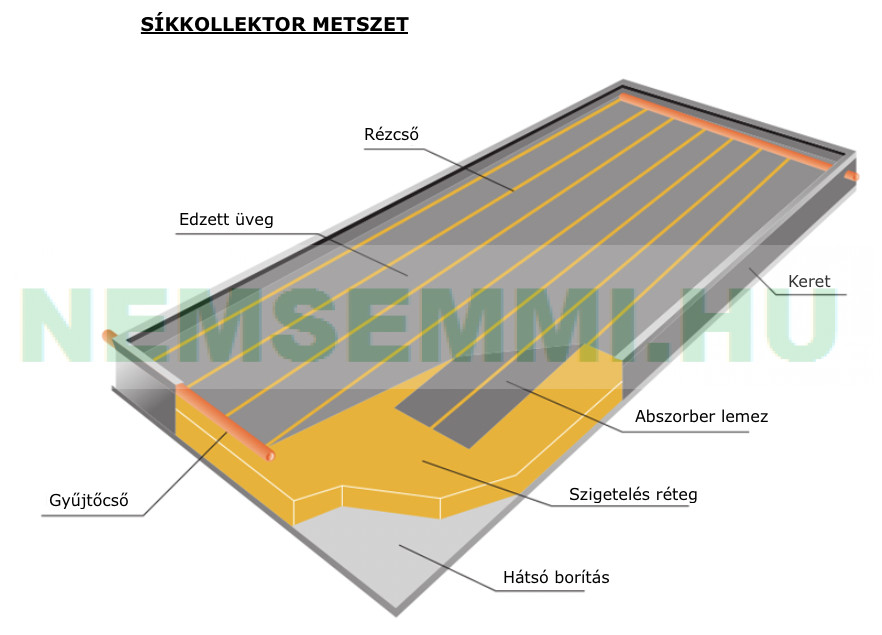

The construction of the basic planar collector includes:

Absorber sheet: This sheet is black or dark in color and made of a material that effectively absorbs the solar energy. The absorber sheet collects the thermal energy radiated by the sun's rays.

Thermal insulation:Plane collectors usually have a thermally insulated back panel to minimize heat loss and increase efficiency. Thermal insulation prevents heat from radiating between the back panel and the absorber.

Glass cover:The top of the flat collectors is covered with a layer of glass, which allows solar energy to enter the into the collector, while protecting the absorbers and the entire system from environmental influences.

Reliability, operational safety and longevity are guaranteed by high-quality, corrosion-resistant materials: among others, safety microprism solar glass with a low metal content (it has excellent heat resistance and a high degree of chemical resistance), and copper.
The collector is delivered in a cardboard box.
Simple installation and maintenance.
The flat collector support frame accessory is not included in the price, it can also be ordered for sloping and flat roofs, see our products.

For similar products, it is worth asking:

1. Is it equipped with heat-treated safety solar glass? Smooth glass breaks easily and into shards, danger of accidents!
Is it microprism? It absorbs light better than frosted glass!
Does it have a low metal content, i.e. does it have increased transmittance?

2. On the material of the collector pipes, because the collector with aluminum connecting pipe must not be installed with copper pipes due to corrosion, and plastic five-layer pipes can only withstand heat up to 95 degrees and that is not enough! Copper is really good!

3. Size: each one is around 2 m2, but it doesn't matter if it's 1.8 or 2!

4. The absorber surface: chemically applied, e.g. black chrome selective coating or just plain painted matte black?

With a 6-year warranty!
