Polycrystalline solar panel kit

Solar panel technical data:

Weight: 11 kg
Dimensions: 1290x675x30 mm
Permitted system voltage: 1000 V
Open circuit voltage (Voc): 22.25 V
Temperature range: -40°C to +80°C
Rated power (Pmax): 130W +3%
Rated voltage (Vmp): 18.13 V
Rated current (Imp): 7.17 A< br />Short circuit current (Isc): 7.63 A

Technical data of charge controller:

Weight: 0.40 kg
Dimensions: 172x126.3x73 mm
Solar input: 2
Battery voltage: 12V or 24V automatic recognition
USB outputs: 2
Charging current: 20 A
Max. operating current: 20A (also on low-load output)
Max. Photovoltaic charging power: 300W at 12V / 600W at 24V
The nominal voltage of the solar module is up to 20V for 12V systems, up to 40V for 24V- os systems.
Up to 10 suitable for mm² cable cross-section.

More information:

Solar panel kit

This system is ideal for powering gardens, campsites, campsites, boats, mobile homes, weekend homes or even your home. Basic kit for setting up an independent solar system. This system is built to require minimal installation work.

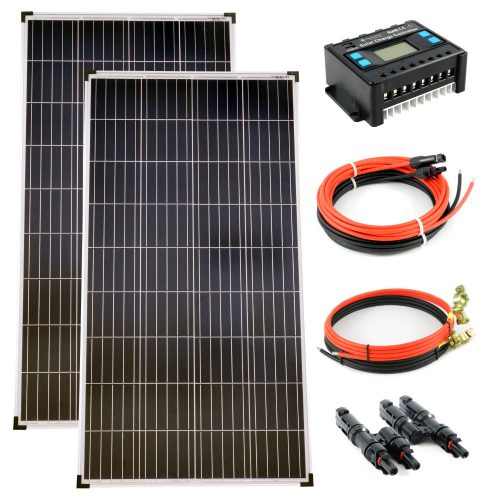

Package contents:

2 solar modules 130 Watt polycrystalline

1 piece 20A LCD solar charge controller

1 pair 2m 4mm² connection cable charge controller -> battery with clamps

1 pair 5m 4mm² connection cable module

1 pair of Y solar connectors

Complete set 2x130W Solar panel polycrystalline solar module charge controller 20A blue photovoltaic island system
