Full Set 12V 3x130W Solar Panel Monocrystalline 1500W Pure Sine Wave Converter Charge Controller Photovoltaic Island System

Monocrystalline solar panel kit

Technical data per solar cell:

Weight: 11 kg
Dimensions: 1290x675x30 mm
Permitted system voltage: 1000 V
Open circuit voltage (Voc): 22.25 V
Temperature range: -40°C to +80°C
Rated power (Pmax): 130W +3%
Rated voltage (Vmp): 18.13 V
Rated current (Imp): 7.17 A< br />Short circuit current (Isc): 7.63 A

Inverter technical data:

Weight: 5.3 kg
Dimensions: 360x262x113 mm< br />Output voltage: 230 V (50Hz)
Peak power: 3000W min. 20 ms for start-up or cold current
Socket: 2x grounded socket
Continuous power: 1500 W
Input voltage: 12 V
Low voltage shutdown: < 10.4 V
Overvoltage shutdown: > 15.0 V
Relative humidity: < 60%
USB device power supply: 1x5V 2.1A
Overheating limitation: > 60°
Low voltage alarm: 10.5V
Efficiency : > 85% (typically approx. 92%)
Average power consumption in standby mode - no load: typically >12.5 V approx. 13 W, up to 35 W at <11.5 V
Connection cable cross-section: 16 mm²
Connection cable length: approx. 50 cm
Fan control: continuous power approx. from 10%

Charging controller technical data:

Weight: 0.3 kg
Battery voltage: 12V or 24V automatic detection< /span>
Charging current: 30 A
Self-consumption: < 20 mA
Dimensions: 178 mm x 102 mm x 46 mm
Color: Black

More information:

Solar panel kit

This system is ideal for powering gardens, campsites, boats, mobile homes, weekend homes or even your home. Basic kit for setting up an independent solar system. This system has been assembled in such a way that only minimal installation work is required.
A 12V battery is required to store the generated electricity. This kit is suitable for charging lead-acid, gel and AGM batteries (cells).
All parts are pre-assembled and only need to follow the attached wiring diagram connect!

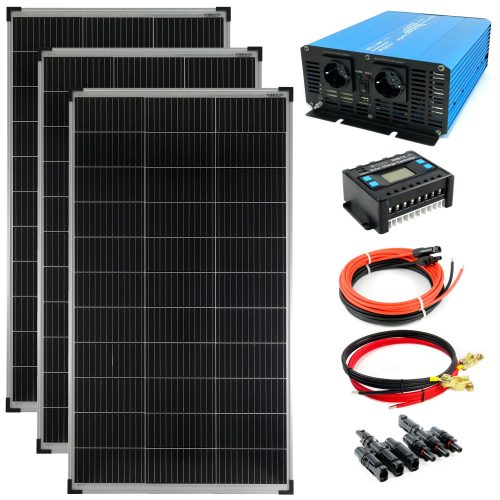

Package Contents:

• 3 pieces of solar module 130 watt monocrystalline
• 1 inverter 1500W/3000W 12V pure sine
• 1 piece 30A LCD solar charge controller
• 1 pair 2m 6mm² connection cable charge controller ->with battery clamps
• 1 pair 5m 6mm² connection cable module -> charge controller with solar connectors
• 1 pair 3-way Y solar connector
