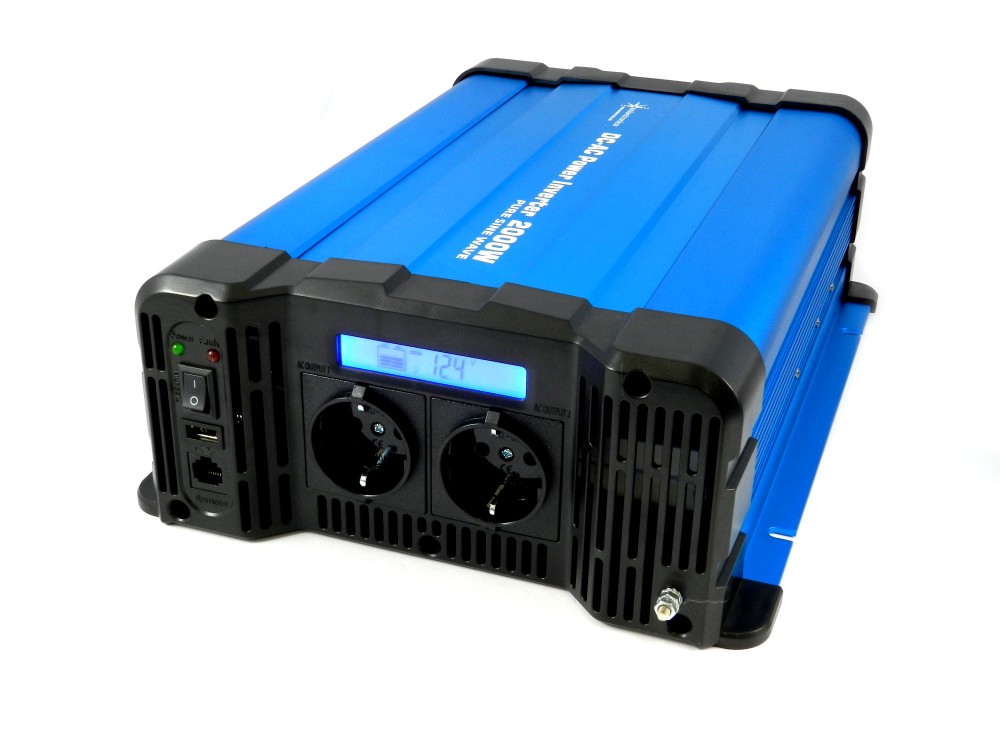

Inverter

Weight: 5.7 kg
Dimensions: 360x262x113 mm span>
Output voltage: 230 V (50Hz)
Peak power: 4000W min. 20 ms for start-up or cold current
Socket: 2x grounded socket
Continuous power: 2000 W
Input voltage: 12 V
Low voltage shutdown: < 10.4 V
Overvoltage shutdown: > 15.0 V
Relative humidity: < 60%
USB device power supply: 1x5V 2.1A
Overheating limitation: > 60°
Low voltage alarm: 10.5V
Efficiency : > 85% (typically approx. 92%)
Average power consumption in standby mode - no load: typically >12.5 V approx. 13 W, up to 35 W at <11.5 V
Connection cable cross-section: 16 mm²
Connection cable length: approx. 50 cm
Fan control: continuous power approx. from 10%

More information:

Inverter

With this device, you can generate 230V alternating voltage from 12V direct current (e.g. from car batteries, truck batteries or batteries of solar isolation systems) and thus operate many household appliances with a nominal voltage of 230V.< /span>

Features:

Automatic shutdown in case of overload or short circuit.

Suitable for use in motor vehicles.

Robust housing made of aluminum and cast sheet metal.

Certificates: converter, CE, RoHS; E8 production according to DIN ISO 9001:2000.

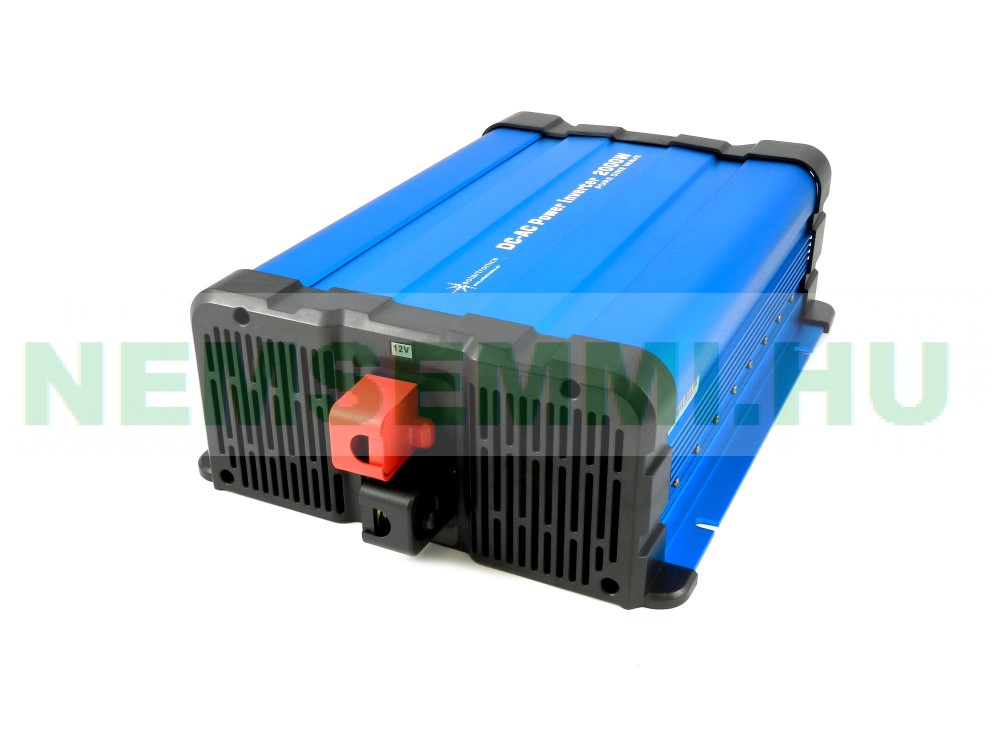

Inverter 12V 2000W voltage converter 360x262x113 mm pure sine wave voltage transformer
