Stainless steel throat tube for solar collector installation

Outer diameter: 26.7 mm +/- 0.4 mm
Inner diameter: 20.5 mm +/- 0.4 mm
Maximum pressure at 200° 16 bar
< span style="color: #000000;">Stainless steel material 1.4404
Complies with: DIN EN ISO 10380
Temperature range between -100°C +600°C
Insulation
Thickness: 14 mm
Material: HT, EPDM synthetic rubber
Operating temperature +150 °C (short time + 175 °C)
Maximum limit: 200 °C
UV and weather resistant
Built-in sensor cable: 2 x 0.5 qmm

More information:

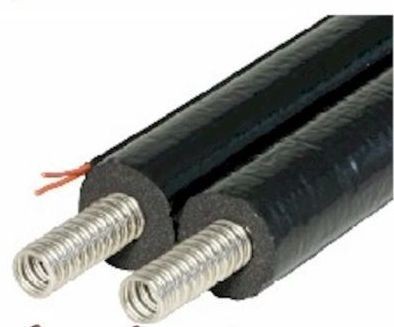

Insulated double inox pipe with integrated transmitter cable

Price per meter, minimum order quantity is 4 meters.
Maximum length in one package is 50 meters!
Fits 1" steel or 22mm copper pipe
Stainless, on-site flanged, flexible pipeline with solar insulation. can be used as a connecting line for solar collectors and hot water storage.
The pipeline can be bent as desired , no fittings are needed, no need to solder or press.
They are also corrosion resistant in environments saturated with chemicals.

Find the connectors among the products!

Solar collector DN20 1" DOUBLE flexible solar throat pipe. Inox, i.e. stainless steel, including insulation! Fits 1" steel or 22 mm copper pipe
