Infrared panel 520W 920 x 620 x 15 mm white infrared heating wall electric heating, heating panel

Infrapanel

Dimensions: 920 x 620 x 15 mm
Input power: 520 Watt
Color: White
Main material: Aluminum, plastic
Cable length (m): 1.9 m
Power consumption: 520 W
Mains voltage/frequency (V~Hz): 220-240 V / 50 Hz
Surface material: IR ceramic coating
Protection class (IP): IP54

More information:

Wall electric heating

Infrared heating has a significant advantage compared to gas or oil heating: it does not heat the air, but the surrounding objects, such as walls, furniture, etc. With this white heating panel, which has a power of 520 W, the heat is distributed more evenly and directly. In addition, the air is less agitated, thus reducing dust migration. The heat emitted by infrared heating therefore provides a healthier and more pleasant room climate.

One ​​of the biggest advantages of infrared heating panels is that it does not require a long pre- and post-heating time to heat up the room. The panel immediately raises the room temperature as needed, especially in spring and autumn, when the daytime temperature can drop quickly in the evening. Thanks to its timeless design, the heating panel easily fits into any room and can be placed almost anywhere in the house.

Another great advantage of infrared heating panels is their high energy efficiency, compared to traditional heaters. Their conversion efficiency is 98%, which means that they use electrical energy extremely well. The flat, lightweight heating panel is equipped with a carbon heating element and a ceramic infrared coating. Built-in protection against overheating increases safety. The device is made of aluminum frame and polyurethane, aluminum foil back panel.

The heating panel is equipped with a 1.9 m long cable, which can be easily connected to an outlet. The heating panel can be activated simply with the on switch. The heat is approx. It can be felt within 10 minutes.

With an optional socket thermostat (not included), the heating can be controlled even more conveniently, as it can be operated depending on the temperature. We recommend that you also use the thermostat with the appropriate Wi-Fi function, which is available in our range under article number 64397.

Useful tip: A room requires an average of 75 Watt/m² to heat rooms with a standard room height of 2.60 m. A 15 m² room therefore requires an energy demand of 1125 Watts, so we recommend the use of two 600 Watt panels.

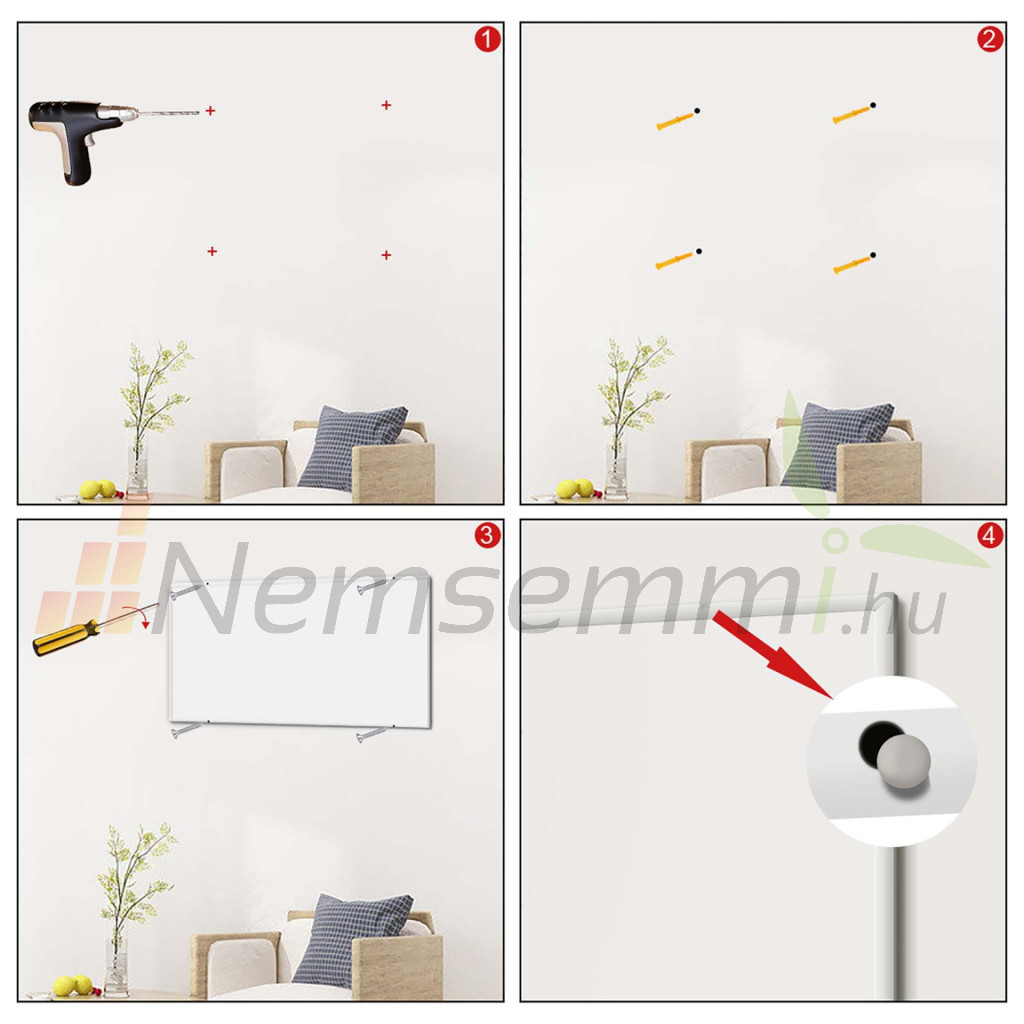

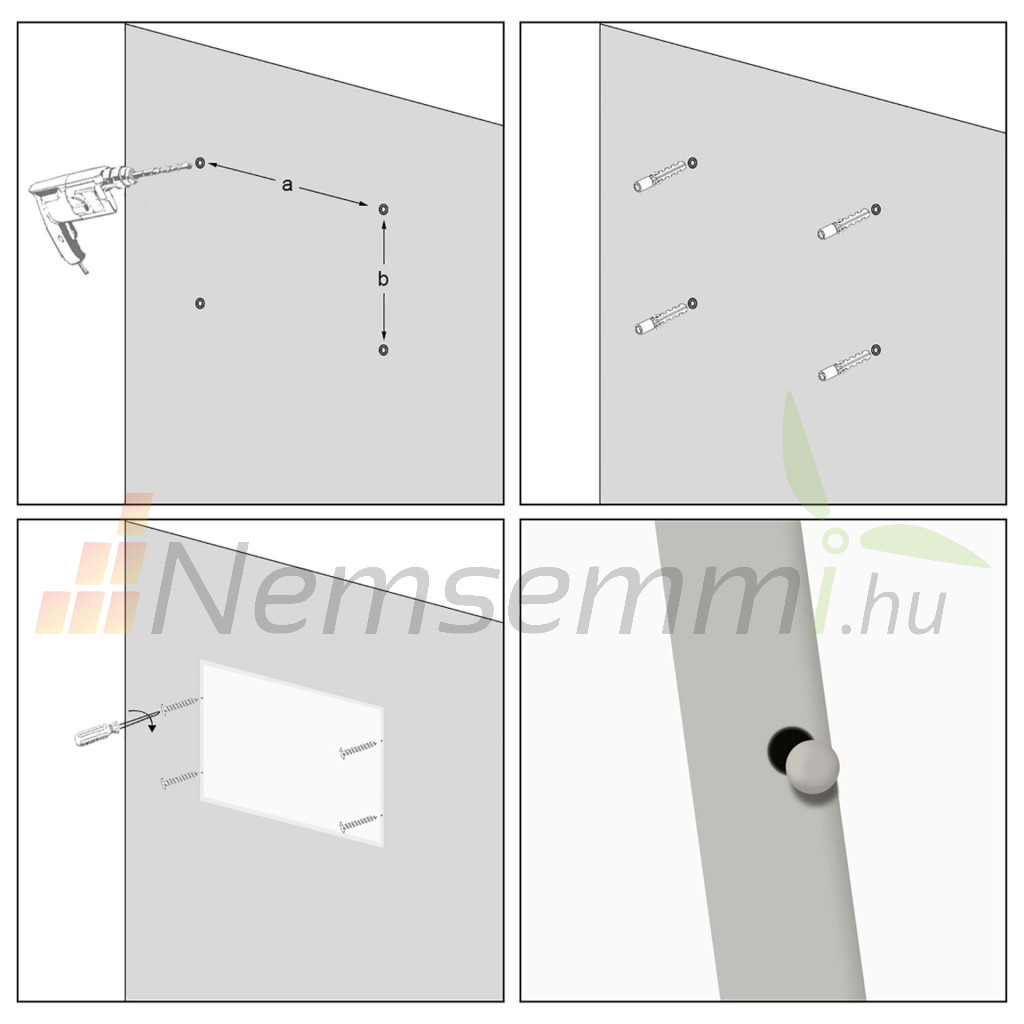

Important installation and safety information:Please note that the 920 x 620 x 15 mm panel is only suitable for wall mounting. Since its operating temperature is between 80 °C and 100 °C, especially pets, children and persons in need of help should not be left unattended near it. Also, make sure that the heaters are not covered to ensure proper heat dissipation.
